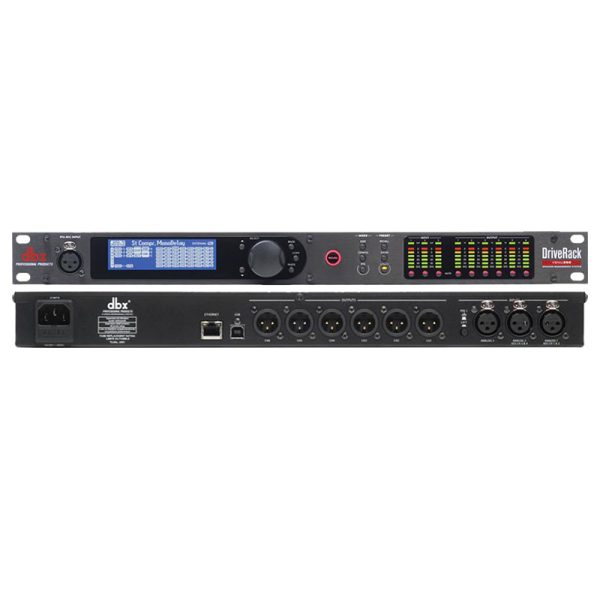

dbx DriveRack VENU360

All the processing needed to supercharge your sound system. Now with complete control from your mobile device.



Features

Input Processing

  • dbx Compression
  • AFS™ (Advanced Feedback Suppression)
  • 31-Band Graphic EQ
  • 12-Band Parametric EQ (with narrow notch capabilities)
  • Subharmonic Synthesis
  • Backline Delay
  • Noise Gate

Output Processing

  • Crossover (supports full range up to mono 6-way systems)
  • 12-Band AutoEQs (8 AutoEQ bands, 4 User bands)
  • dbx Compression
  • Automatic Gain Control
  • Subharmonic Synthesis
  • Noise Gate
  • Tower Delays (up to 1000ms per output)
  • 8-Band Parametric EQs (used for speaker tunings)
  • dbx Limiting
  • Driver Alignment Delays

Tested Wireless Routers:

  • Dlink 636L
  • Dlink Cloud router 2000
  • Cisco / linksys: WRT54G2V1
  • Netgear WGR614 v7
  • Netgear WNR 1000

Specifications

Input (3) analog line inputs/(2) AES digital inputs (shared connectors), (1) RTA mic input
Input Connectors (3) female XLRs (2 selectable between analog/AES digital audio formats), (1) female XLR RTA mic input
Input Type Electronically balanced/RF filtered
Input Impedance > 30 kΩ, balanced line to line
Max Input Level (line inputs) > 28 dBu, balanced, ≤1% THD
CMRR > 50 dB @ 1 kHz
RTA Mic Preamp Phantom Power 48 VDC
Output (6) Line Outputs
Output Connectors Male XLR
Output Type Electronically balanced, RF filtered
Output Impedance 120 Ω, balanced line to line
Max Output Level 22 dBu, balanced, ≤1% THD
Alignment Delay Up to 1000 ms per output channel
A/D Converter 24-bit with dbx Type IV™ Conversion System
A/D Dynamic Range 117 dB A-weighted, 114 dB unweighted, 22 kHz BW
Type IV Dynamic Range 129 dB with transient material, A-weighted, 22 kHz BW; 126 dB with transient material, unweighted, 22 kHz BW; 121 dB typical with program material, A-weighted, 22 kHz BW
D/A Converter 24-bit
D/A Dynamic Range 116 dB A-weighted, 113 dB unweighted, 22 kHz BW
Internal Processing Wordlength 32-bit floating point
Supported Sample Rates 48/96 kHz (32-192 kHz using sample rate conversion)
System Performance Dynamic Range 114 dB A-weighted; 110 dB unweighted
THD Noise 0.0025% typical at 4 dBu, 1 kHz, 0 dB input gain
Frequency Response 20 Hz – 20 kHz, 0 /- 0.5 dB
Interchannel Crosstalk < -97 dB, -105 dB typical 20-20 kHz, 4 dBu, all channels measured
Latency Analog input to output: 2.57 ms (48 kHz), 2.28 ms (96 kHz); Digital AES input to output: 2.31 (48 kHz), 2.15 ms (96 kHz)
Operating Voltage 100-240 VAC 50/60 Hz
Power Consumption 18 W
设备重量 5.48 lbs. (2.49 kg)
Shipping Weight 7.10 lbs. (3.22 kg)
Dimensions 1.75” (H) x 8.0” (D) x 19” (W), 4.4cm (H) x 20.32cm (D) x 48.26cm (W)
