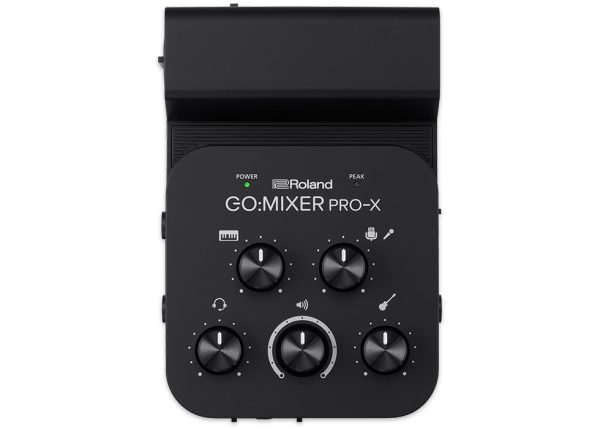

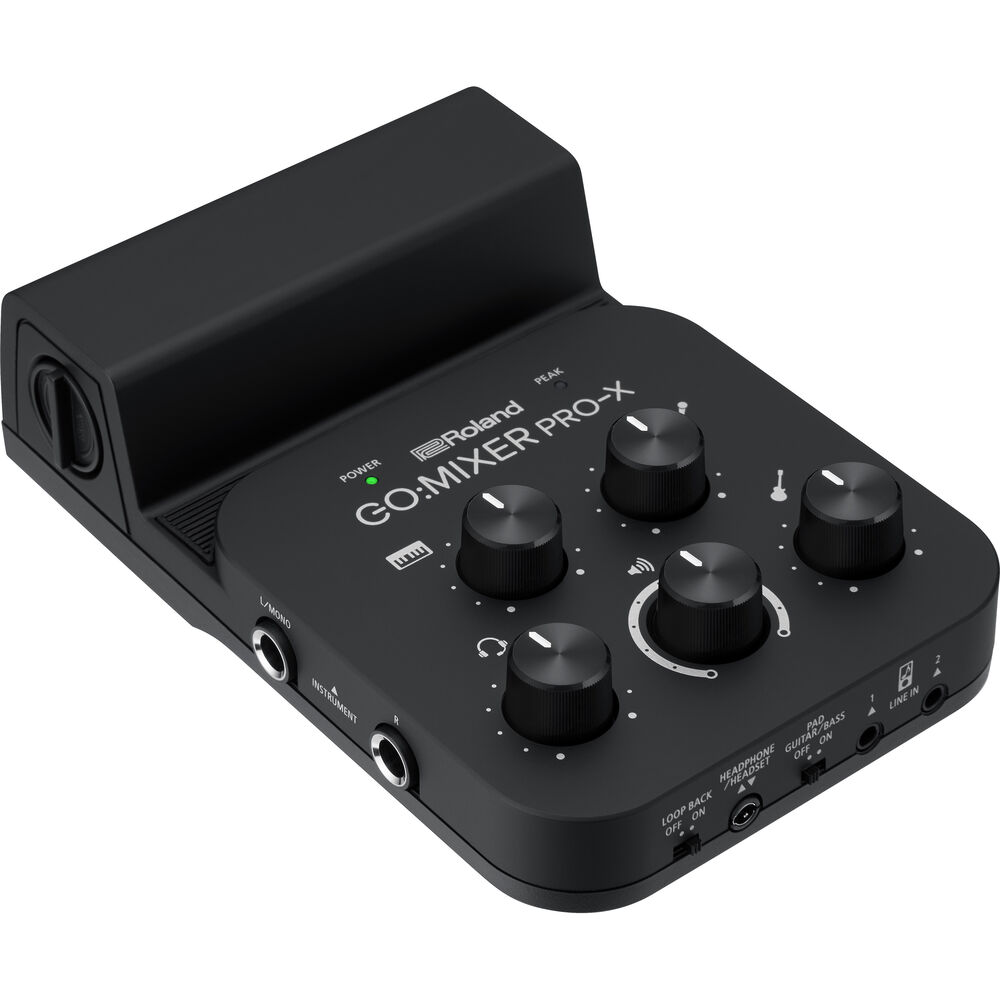

Roland GO:MIXER PRO-X Audio Mixer for Smartphones

Your sound matters.
If you create music videos, web shows, podcasts, or livestreams with a phone or tablet, you need GO:MIXER PRO-X. Audio quality can make or break your presentation, and your device’s built-in mic won’t cut it if you really want to impress your listeners and keep them engaged. With GO:MIXER PRO-X, you can connect and mix up to seven audio input sources with studio quality—so you’ll always sound your best no matter where you are.

FEATURES

Palm-sized audio mixer for mobile devices
Multiple inputs—connect microphones, musical instruments, and more
Combo jack supports standard mics with XLR or ¼-inch plugs; 48 V phantom power available via XLR
Dedicated guitar/bass input with selectable input pad for active pickups
Mono/stereo instrument input
Two stereo line-level inputs with TRS mini jacks
Mini headphones jack with headset mic support
Loop Back function for playing along with backing tracks from your mobile device
USB Micro-B and four-pole TRRS jack for device connection
Comes with three connection cables: USB Micro-B to USB-C, USB Micro-B to Lightning, and TRRS to TRRS

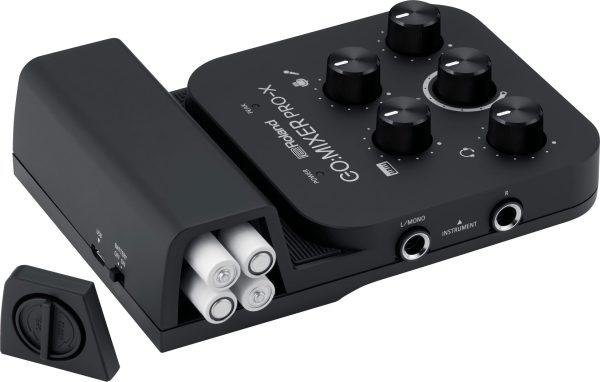

Powered by your smartphone or four AAA alkaline batteries
Easy integration with camera and livestreaming apps
Also works with Roland Zenbeats and other mobile music production apps

SPECIFICATIONS

Number of Audio Channels
Input: 11 channels
Output: 3 channels

Connectors
INSTRUMENT (L/MONO, R) jacks: 1/4-inch phone type
LINE IN 1 jack: Stereo miniature phone type
LINE IN 2 jack: Stereo miniature phone type
GUITAR/BASS jack: 1/4-inch phone type (supports high impedance)
SMARTPHONE IN/OUT jack: Stereo Miniature phone type (Stereo, CTIA)
MIC jack: Combo type (XLR, 1/4-inch TRS phone, phantom power DC 48 V, 6 mA max.)
HEADPHONE/HEADSET jack: Stereo Miniature phone type (Stereo, CTIA)
USB port: USB Micro-B type

Controller
INSTRUMENT knob
GUITAR/BASS knob
MIC knob
HEADSET MIC knob
HEADPHONE/SMARTPHONE OUT knob
LOOP BACK switch
PAD GUITAR/BASS switch
PHANTOM POWER switch
BATTERY switch

Indicator
POWER indicator
PEAK indicator

Power Supply
USB Bus Power
Alkaline battery (AAA, LR03) x 4
Rechargeable Ni-MH battery (AAA, HR03) x 4

Current Draw
170 mA

Battery life for continuous use
Alkaline battery: Approximately 4 hours
* When setting the [BATTERY] switch to the “ON” position.
* Differs depending on the conditions of use.

Accessories
Leaflet “Downloading the Owner’s Manual”
Leaflet “USING THE UNIT SAFELY”
Lightning to USB Micro-B type cable
USB Type-C(TM) to USB Micro-B type cable
3.5mm TRRS Audio cable
