Orange Crush 20
Orange Crush 20

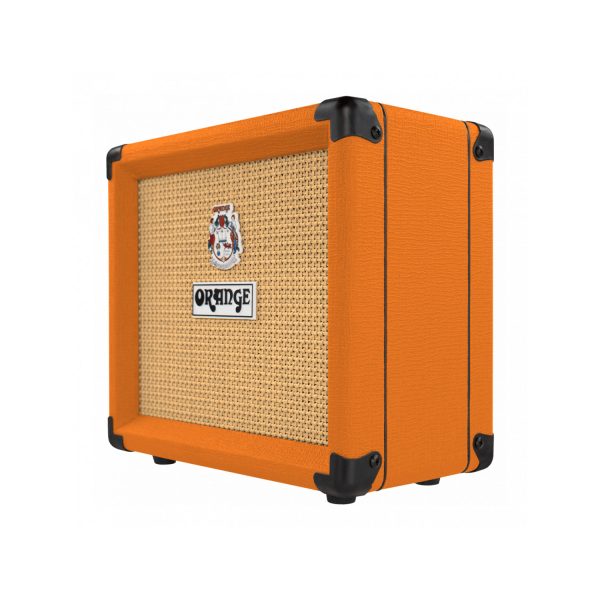

New for 2015 the twin channel Crush 20 takes an uncompromising approach to guitar tone and puts it in a compact and portable package. With footswitchable Clean and Dirty channels our new high gain, four stage preamp design serves up a huge palette of overdriven and distorted sounds, rich in harmonic overtones.
The sheer punch achieved through the Crush 20’s custom 8″ Voice of the World speaker is nothing short of staggering, with a commanding delivery that belies amp’s modest footprint. Featuring an Aux In for backing tracks and a CabSim-loaded headphone output the Crush 20 is an obvious choice for players seeking the legendary ‘Orange sound’ in a practice amp format.
ALL ANALOGUE SIGNAL PATH
Our commitment to analogue amplifier circuitry in a digital age ensures Crush amps possess the lively feel and responsiveness that Orange is famous for, inspiring guitarists to play their instruments, not the technology. The Crush 20’s highly effective 3 band EQ section allows for huge control over your sound, from bold vintage colours to scooped modern tones.
TWIN CHANNEL, HIGH GAIN PREAMP DESIGN
Experience levels of detailed saturation and versatility never before heard in a practice amplifier. Building on the huge success of our Crush Pro series, our high gain preamp design puts a truly inspiring range of complex tones in the hands of the player. High quality, low noise components provide four stages of gain with exceptional richness and clarity, delivering everything from blissful cleans, to classic Bluesy Orange crunch all the way through to full-bodied, ultra high gain Metal distortion. Clean and Dirty channels can be switched on the amp’s top panel or remotely using the optional footswitch.
The headphone/line output includes our new CabSim feature, faithfully emulating the sound of a mic’d Orange 4×12″ cabinet loaded with our flagship Voice of the World speakers. Use headphones for silent practice or connect to a mixer/recording console to capture huge, authentic Orange tones in the studio.
VOICE OF THE WORLD SPEAKER
Our own custom designed speakers deliver the perfect balance between modern low end punch and vintage highs, maintaining clarity even when pushed.
CLASSIC ORANGE STYLING
Finished in our legendary livery dating back to 1968, the Crush range features our basket weave vinyl, woven speaker grille cloth, signature ‘picture frame’ edging and iconic hieroglyphs on the control panel.
|Features:||Twin channel guitar amp combo with high gain preamp, 3 band EQ, Aux In & CabSim-loaded Phones output|

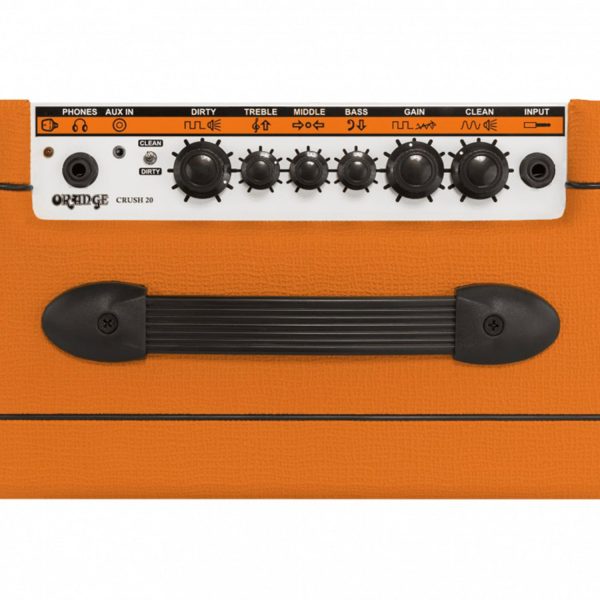

|Top Panel (Right to Left):||Instrument Input, Clean Volume, Dirty Gain, Bass, Middle, Treble, Dirty Volume, Channel Selector Switch, Aux In, Phones Output|
|Rear Panel:||Footswitch Jack (Footswitch optional)|
|Finish Options:||Orange or Black basketweave vinyl|
|Output Power:||20 Watts|
|Speaker:||Custom 8″ Voice of the World|
|Unboxed Dimensions (W x H x D):||37.5 × 32.5 x 19.7cm (14.67 x 12.8 x 7.75″)|
|Unboxed Weight:||7.15kg (15.8lb)|
