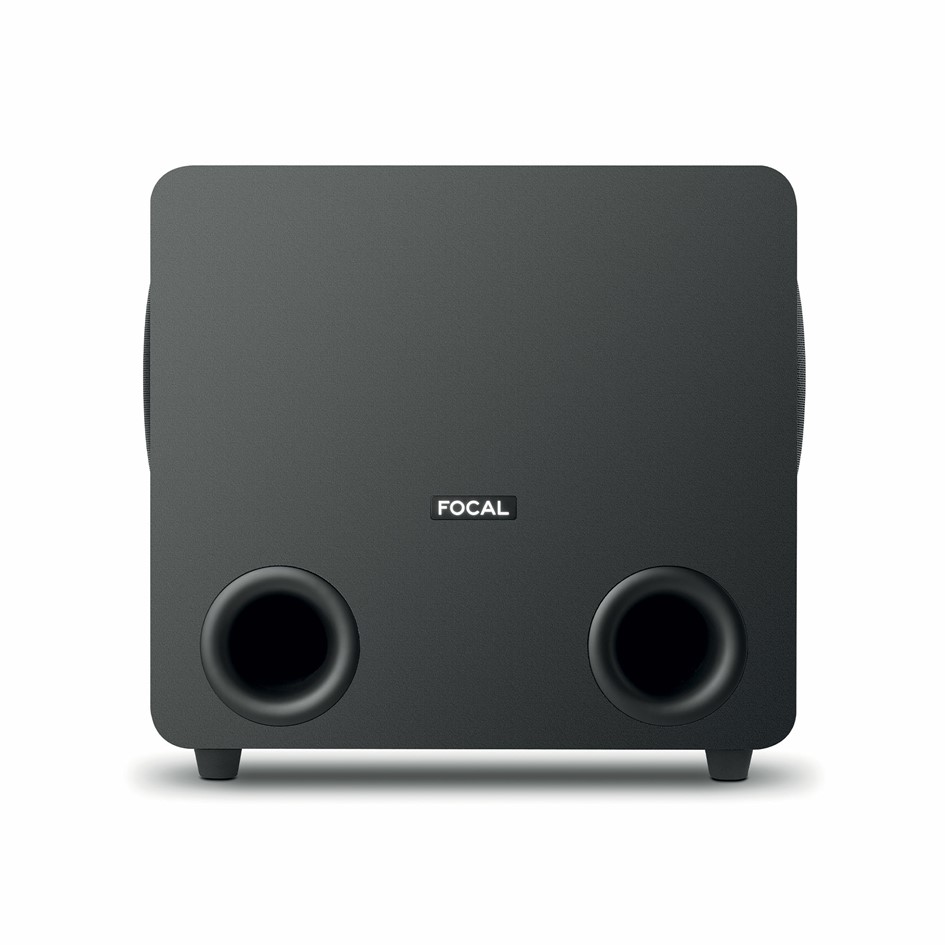

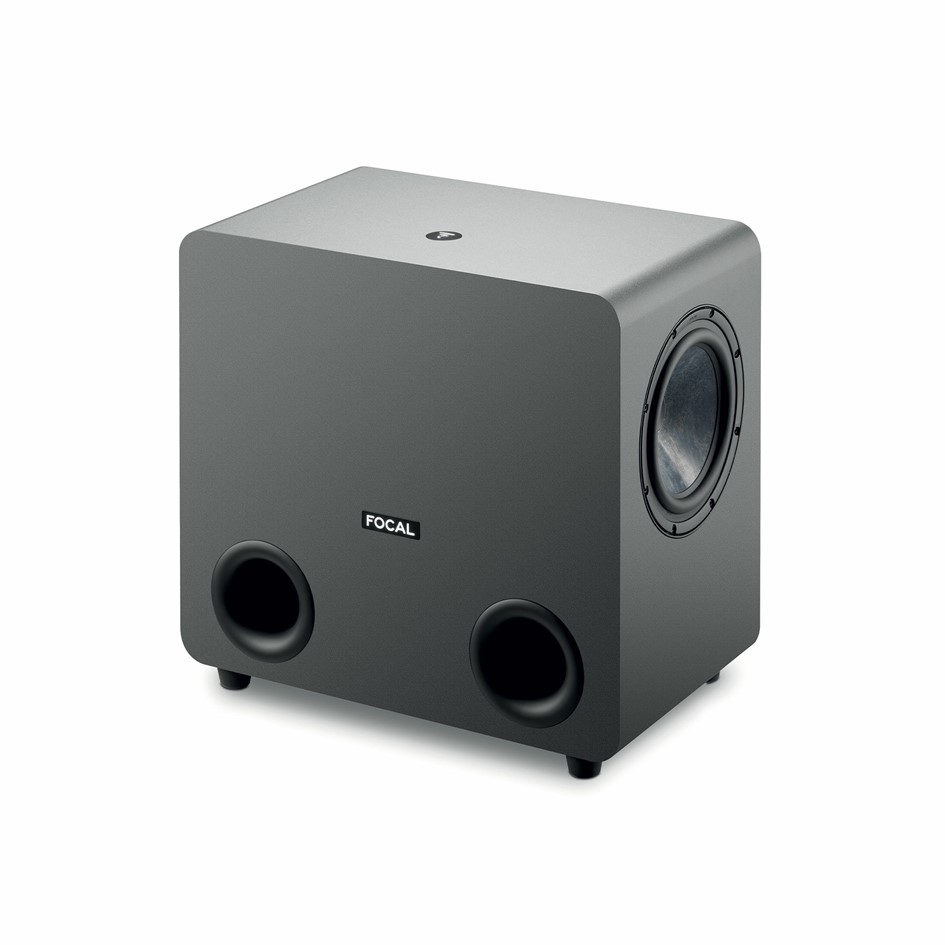

Focal Sub One 8-inch Powered Studio Subwoofer

Product Description

Sub One Active professional subwoofer

This long-excursion active subwoofer offers high efficiency for the most demanding professionals and sound engineers. Rated at 200W RMS, Sub One is ideal for use with the Alpha Evo line, as well as the Shape line of monitors.

DISCREET AND VERSATILE

For discreet, optimal studio integration, Sub One features a slim, space-saving profile. Added features include low-pass crossover, high-pass crossover for monitor output, sound level, footswitch input/output for bass-management bypass, LFE input/output, left and right inputs/outputs

PERFORMANCE

The 20 cm (8″) Slatefiber double-skin woofers offer neutrality, precision and sonic dynamics with low distortion. With a total power output of 200W RMS, Sub One covers a frequency range from 32 Hz to 120 Hz.

DESIGN

Thanks to its elaborate full-width design and front-mounted air vents, this professional subwoofer fits discreetly and easily into a room along a wall or under a desk.

STYLE AND DISCRETION

Alongside an MDF cabinet body partly covered with real walnut veneer, Shape Twin is very stylish. Compact, it is as discreet as it is flexible in its positioning, thanks to the mounting inserts.

Specifications

Sound – Acoustics

• Product type : Monitoring grave box
• Loudspeakers : 2 x 8″ Slatefiber membrane
• Frequency response (+/- 3dB) : 32 Hz – 120 Hz
• Maximum SPL (peak@1m) : 114 dB

Sound – Electronics

Inputs :
• Left,Right,LFE
• XLR: symmetrical 10 kOhms
• Variable
Mid-range and low frequency amplifier : 100 W, class D

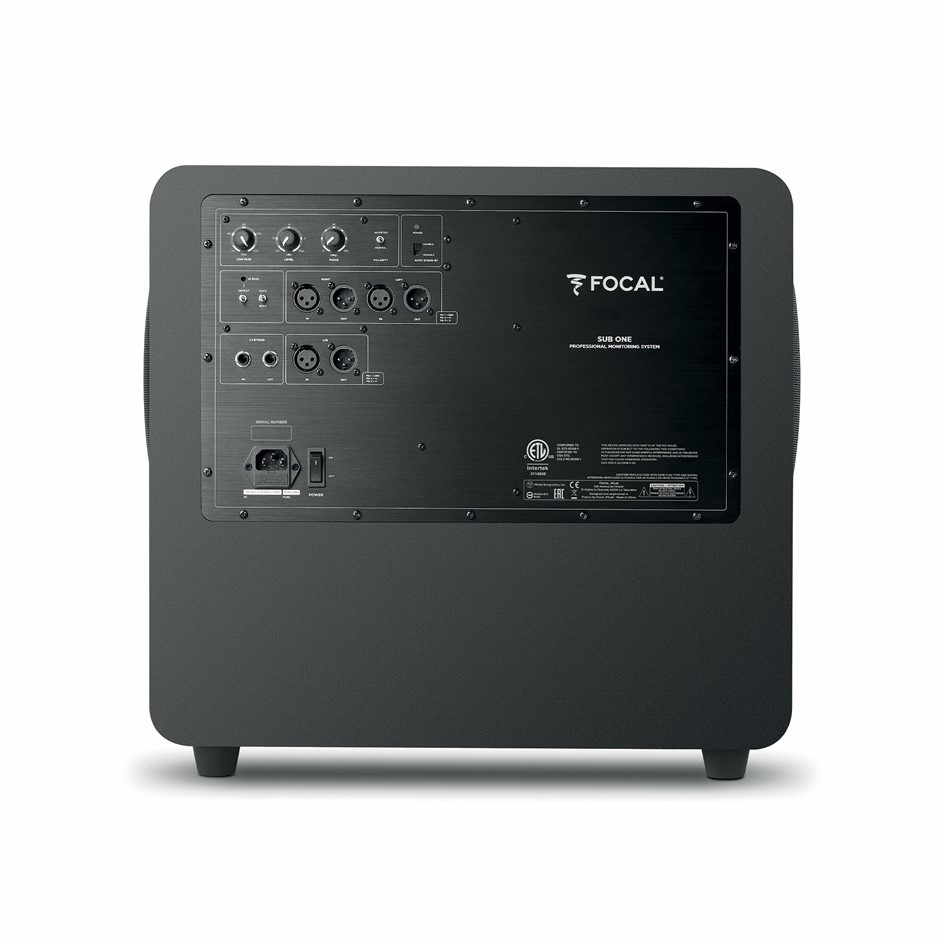

Indicators and controls :
• Sub level (sensitivity) adjustment
• Lo-passe frequency adjustment
• Phase adjustment
• Polarity switch
• Mute
• 2.1 bypass (controlled by external footswitch)
• Hi-pass frequency selection
• Hi-pass defeat

Design

Height : 47.5 cm
Width : 31 cm
Depth : 52 cm
Weight : 18.5 kg
