Product Description

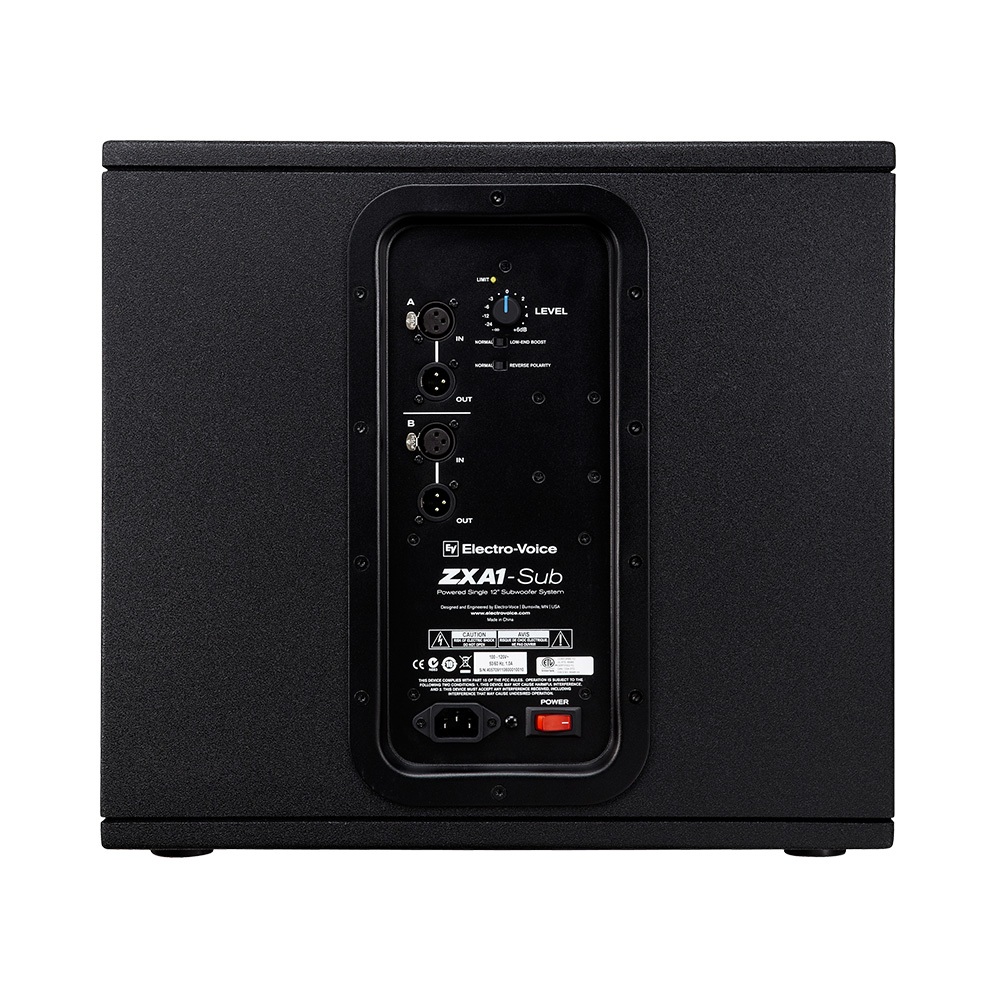

ZXA1-Sub
12″ powered subwoofer
- 15mm Plywood Enclosure, Internally Braced, with Textured Paint
 - EVS-12S 305mm (12”) Woofer for Powerful, Engaging Bass Response
 - Class D Lightweight Amplifier
 - Pole Mount for Full-Range Systems
 - Dual XLR Inputs and Outputs
 - Switchable EQ Modes for Different Applications
 - LED indicators for Power On and Limit

Extending the ZXA1’s size-defying performance and sleek styling into the low-end realm, the ZXA1-Sub packs 700 W of self-powered punch into a low-profile wood enclosure. Match ZXA1 with ZXA1-Sub and hear just how big a small rig can sound, whether you want to add a tight thump to a DJ set or give the highs and mids some breathing room in a live performance.
SPECIFICATIONS
| Freq. Response (-3dB) | 53Hz-93Hz¹ |
| Freq. Range (-10dB) | 44Hz-118Hz¹ |
| Max. Measured SPL | 126dB¹, ² |
SPECIFICATIONS |
|
| Coverage (Horiz. x Vert.) | Omnidirectional |
| Power Rating | 700W |
| LF Transducer | (1) EVS-12S, 305mm (12″) Woofer |
| Crossover Frequency | 100Hz |
| Connectors | (2) XLR Stereo Input, (2) XLR Stereo Output |
| Enclosure Material | 9-ply, 15mm Plywood, Internally Braced, with Textured Paint |
| Grille | 16GA Steel with Black Powdercoat |
| Mains Requirements | 120V: 90V-132V, 1.0A³ , 50-60Hz 230V: 190V-264V, 0.6A³, 50-60Hz  |
| Dimensions (H x W x D) | 400mm x 444.5mm x 457.2mm (15.75″ x 17.50″ x 18.00″) |
| Net Weight | 20.9kg (46.0lbs) |
| Shipping Weight | 26.5kg (56.5lbs) |
| Berat | 28 kg |
|---|
