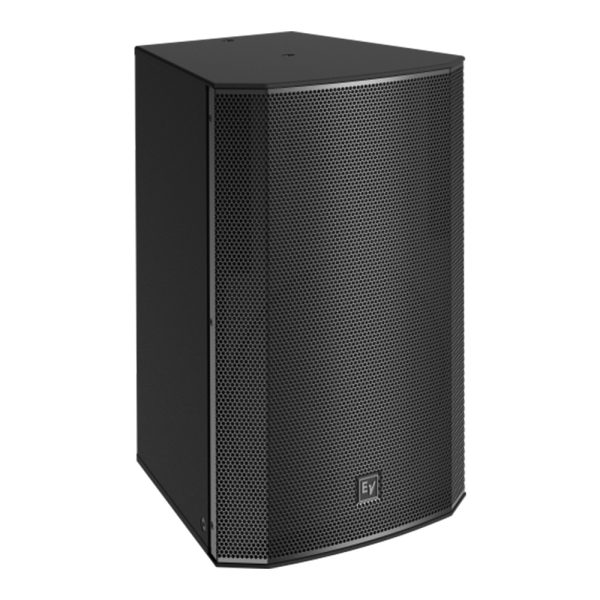

Electro-Voice EVC 1152 95PIB 15″ 90×55 Weatherized Passive PA Speaker

Rp 33.938.391

Out of stock

SKU: EVC-1152/95-BLK Categories: , , , Brand:

Description

EVC-1152-95

15″ speaker 90×55

  • 15-inch, two-way loudspeaker, with 90˚ x 55˚ constant directivity, rotatable waveguide
  • Power rating: 350 W Continuous, (1400 W Peak)
  • Passive system: 98 dB, 129 dB maximum
  • Gland nut cover and stainless steel grille on PI versions
  • Optional high quality transformer and patented Automatic Saturation Control (ASC) preserve low end over 70V/100V lines

EVC loudspeakers from Electro-Voice are two-way systems that can be used in a broad range of applications where wide bandwidth, vertical and horizontal directivity control, and high efficiency are required in a compact, cost-effective package. EVC loudspeakers are voiced to complement other EV-Innovation models (EVFEVHEVA, and EVU).

The high frequency section of EVC loudspeakers comprises a single 1¼-inch pure titanium dome compression driver directly coupled to a rotatable constant directivity waveguide that delivers uniform pattern control and smooth, linear response. The low frequency section employs a high-output woofer that was developed using state-of-the-art, computer aided optimization to provide low distortion, high efficiency, and maximum intelligibility at high sound pressure levels. The passive crossover implements a modified fourth-order design with slopes of 24 dB per octave for smooth off axis response and improved definition through the critical vocal range.

The EVC series is an extremely cost-effective solution for many fixed-install applications. The enclosures are constructed of 15-mm plywood and finished with EVCoat for enhanced durability. The loudspeakers have been designed with multiple M10 suspension points as well as attachment points for an optional U-bracket or multi-mount style pan/tilt wall mount. All EVC series loudspeakers accept wire gauges up to 10 AWG (6 mm). The input panel also accepts optional covers with NL4-type connectors or weatherized gland-nuts.

For 70V/100V operation, the input panel has an internal landing pad for mounting EV’s high-quality TK-150 audio transformer. Adding a TK-150 to the EVC input panel engages EV’s patented Automatic Saturation Compensation (ASC), which preserves low frequency performance while presenting a stable load to the amplifier regardless of how many loudspeakers are connected in parallel. An EVC loudspeaker with a transformer installed sounds virtually identical to the same model without a transformer.

SPECIFICATIONS

Max Calculated SPL129dB
Rotatable coverage90° x 55°
Frequency Range (-10 dB)50Hz-25kHz

SPECIFICATIONS

Shipping Weight61.07lbs (27.7kg)
Weight Net55.12lbs (25kg)
Suspensioneight M10 Suspension Points, optional U Bracket or pan/tilt wall mount
Grille18 GA cold-rolled steel with rotatable logo (18 GA stainless steel with hydrophobic cloth on PI models)
Minimum Impedance6.7Ω
HF TransducerDH-3
LF TransducerEVS-15M
Frequency Response (-3 dB)70Hz-21Hz
Enclosure15mm weather-resistant plywood with EV Coat
ColorBlack or White
Dimensions (H x W x D)684 x 433 x 451mm
Passive crossover frequency1.6kHz
Rec. high-pass frequency, 4th Order40 Hz for 8Ω (50 Hz with TK-150 transformer)
Environmental SpecsIEC 60529, IP44 (IP55 for PI versions)
Nominal Impedance
Axial Sensitivity (SPL, 1 W @ 1 m)98dB
Power Handling (Continuous / Peak)350/700/1400W
ConnectorsDual four-pin 10 AWG (6 mm) Phoenix/Euro Block screw-terminals

Additional information

Weight28 kg
