BSS AR-133 Active DI Box

Rp 3.500.000 Rp 2.800.000

In stock

SKU: BSSAR133 Categories: , Brand:

Description

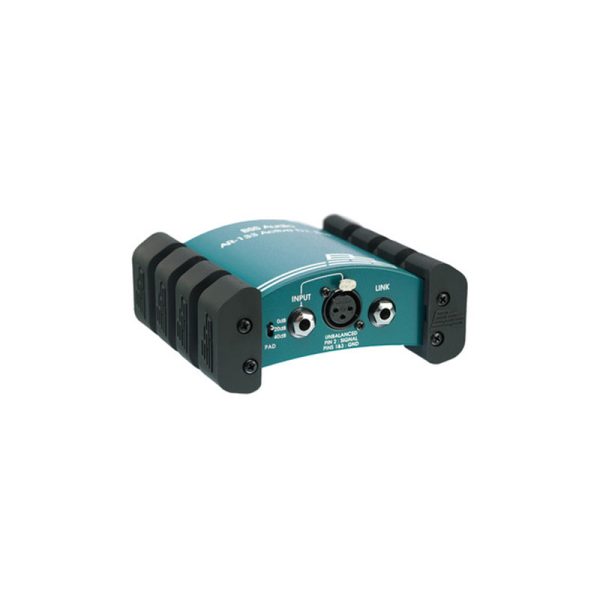

BSS AR-133 Active DI Box

The unit includes phantom power and battery supplies as standard. Should the phantom power from the console fail or be accidentally switched off, the AR-133 automatically switches over to the internal 9V battery providing uninterrupted use.

The unit is housed in a rugged aluminium extrusion case, with robust polyurethane end-cheeks which give the AR-133 a very distinctive look.

Specifications

Input Impedance 1 MOhm (pad at 0dB), 47 kOhm (pad at -20dB or -40dB)
Max Input +9dBu (pad at 0dB), +29dBu (pad at -20dB), +49dBu (pad at -40dB)
Input Connectors Two Parallel 1/4″ jack connectors (Tip Hot +ve, Sleeve ground), and a parallel XLR connector (unbalanced) (Pin 2 Hot +ve, Pin 1 & 3 ground)
Output Transformer Balanced
Max Output +8dBu into 600 Ohms or greater
Output Connectors XLR3-32 or equivalent
THD < 0.005% at 1khz, 0dbu output
Noise < -105db unweighted, 22hz-22khz, rms*
Frequency Response 30Hz to 20kHz, +0dB/-1dB
Main/Standby battery 9 volt PP3 type, preferably alkaline
Power Consumption on phantom: less than 7.5mA, on battery: less than 2mA.
Phantom Power +20 volts DC to +48 volts DC
Unit Weight 650 gms, excluding batteries
Dimensions 59 mm x 124 mm x 143 mm (2.3″ x 4.9″ x 5.6″)



Additional information

Weight 1 kg
