Boss RC-10R Rhythm Loop Station Pedal

Perform at the Speed of Inspiration

Combining song-based looping and organic rhythms in a compact package, the RC-10R brings fresh inspiration to live performances, songwriting sessions, and daily practice. This next-generation Loop Station is a real-time creation machine, enabling you to develop spontaneous music that moves and grooves with two unique song sections, intros/endings, and rhythm fills. Onboard controls and visual loop indicators provide easy, self-contained operation, while expanded control is possible with external switches and MIDI. A vast rhythm library is on hand to cover nearly any music genre, and you can even import your own rhythms to personalize the RC-10R for specific songs and styles.

FEATURES

• Next-generation performance tool combining song-based looping and dynamic rhythms in a small footprint
• Cover nearly any genre with over 280 preset rhythm styles that include two unique sections, intro/ending fills, and two transition fills
• Sixteen versatile drum kits with high-quality sounds from the BOSS and Roland rhythm libraries
• Stereo looper engine with six hours of recording time and class-leading 32-bit AD/DA and 32-bit floating-point processing
• Serial two-track operation for building loop performances with two independent song parts
• Two circular indicators display loop and rhythm playback status
• Simple operation with informative LCD and intuitive interface
• Onboard storage for 99 phrase memories and 50 user rhythms
• Selectable output filter to optimize guitar and rhythm sounds for a guitar amp or full-range sound system
• Support for expanded control via external footswitches, an expression pedal, or MIDI
• Full MIDI I/O provided with space-saving mini TRS jacks (BMIDI-5-35 adaptor cable available separately)
• Mac/Windows software for importing WAV loops and user rhythms in SMF format

SPECIFICATIONS

Memory
99

Nominal Input Level
INPUT A/MONO, B: -10 dBu

Maximum Input Level
INPUT A/MONO, B: 8 dBu

Input Impedance
INPUT A/MONO, B: 1 M ohm

Nominal Output Level
OUTPUT A/MONO, B: -10 dBu

Maximum Output Level
OUTPUT A/MONO, B: 8 dBu

Output Impedance
OUTPUT A/MONO, B: 1 k ohms

Recommended Load Impedance
OUTPUT A/MONO, B: 10 k ohms or greater

Bypass
Buffered bypass

Controls
RHYTHM switch, LOOP switch
VALUE knob, RHYTHM LEVEL knob, LOOP LEVEL knob
MENU button, EXIT button

Display
16 characters x 2 lines LCD (with backlit)

Indicator
RHYTHM indicator, LOOP indicator

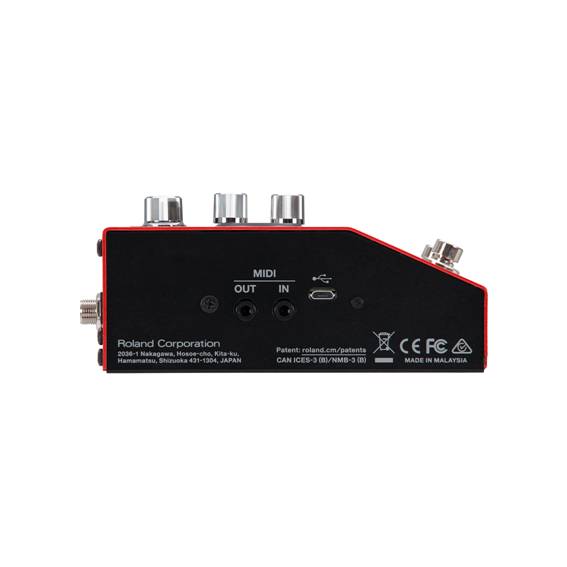

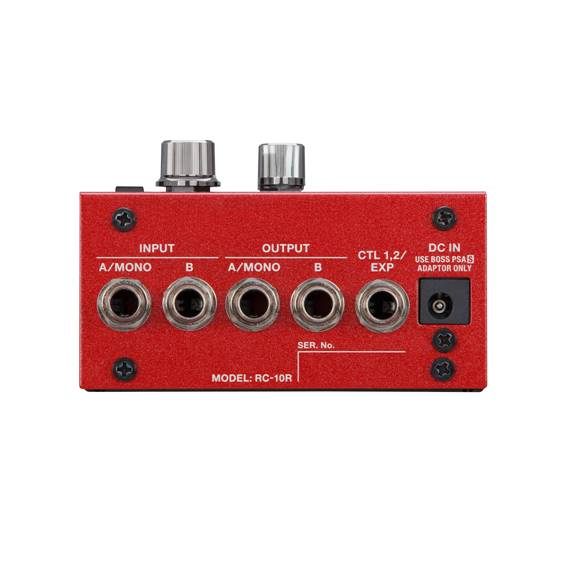

Connectors
INPUT (A/MONO, B) jacks, OUTPUT (A/MONO, B) jacks: 1/4-inch phone type
CTL 1, 2/EXP jack: 1/4-inch TRS phone type
MIDI (IN, OUT) jacks: stereo miniature type
DC IN jack
USB COMPUTER port: USB micro B type

Power Supply
AC adaptor

Current Draw
250 mA

Accessories
Owner’s Manual
Leaflet “USING THE UNIT SAFELY”
AC adaptor
Rubber foot x 4

Options (sold separately)
Footswitch: FS-5U
Dual footswitch: FS-6, FS-7
Expression pedal: FV-500H, FV-500L, EV-30, Roland EV-5
TRS/MIDI connecting cable: BMIDI-5-35, BMIDI-1-35, BMIDI-2-35, BCC-1-3535, BCC-2-3535
