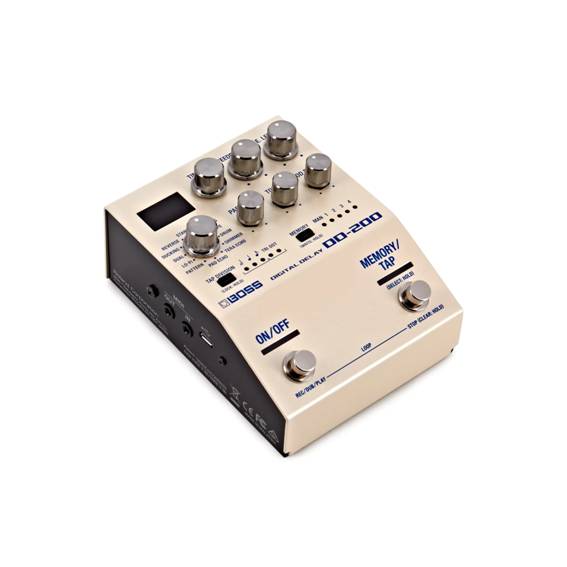

Boss DD-200 Digital Delay Pedal

SIMPLY SOPHISTICATED
With the 200 series, BOSS introduces a new generation of pedals that pack advanced sound and versatility into a streamlined size that saves space on your board. Grab-and-go controls and multi-function switches make operation easy and intuitive, while onboard memories allow you to store multiple setups for instant recall. All 200 series pedals feature premium audio quality with 32-bit internal processing and offer support for external control via footswitches, an expression pedal, or MIDI.
The DD-200 Digital Delay brings together sounds and features inherited from the flagship DD-500 into an even smaller footprint. Twelve different modes offer an inspiring variety of delay colors from modern digital to classic analog, letting you dial up everything from basic echoes to rich ambient pads and everything in-between. There’s also a looper that’s always ready to use, plus a selectable carryover function for seamless transitions between memories.
Version 1.1 Update: User Memory Expansion
The free Version 1.1 software update brings increased flexibility to the BOSS 200 series, greatly expanding the onboard memory capacity for storing and recalling sounds. There are now 128 user setups available. Setups can also be recalled directly via MIDI program change.

FEATURES

• Class-leading sound quality with 32-bit AD/DA, 32-bit floating point processing, and 96 kHz sampling rate
• Twelve versatile modes provide a wide range of delay types
• Fast, easy operation with hands-on controls
• Access 128 user setups from the panel or MIDI program change
• Recall consecutive memories plus real-time panel setting via footswitch or dedicated panel button
• Phrase looper with up to 60 seconds of recording time
• Panel Lock function disables controls to prevent unwanted changes
• Customizable multi-function footswitches for bypass, tap tempo, memory selection, looper control, and more
• Support for expanded control via external footswitches, an expression pedal, or MIDI
• Full MIDI I/O provided with mini TRS jacks (BMIDI-5-35 adaptor cable available separately)
• Micro USB jack for firmware updates
• Analog dry through and buffered bypass
• Runs on PSA-series AC adaptor or three AA-size batteries

SPECIFICATIONS

Sampling Frequency
96 kHz

AD/DA Conversion
32 bits

Processing
32-bit floating point

Modes
12 modes
STANDARD, ANALOG, TAPE, DRUM, SHIMMER, TERA ECHO, PAD ECHO, PATTERN, LO-FI, DUAL, DUCKING, REVERSE

Memory
127 Manual

Nominal Input Level
INPUT A/MONO, B: -10 dBu

Maximum Input Level
INPUT A/MONO, B: 7 dBu

Input Impedance
INPUT A/MONO, B: 2 M ohm

Nominal Output Level
OUTPUT A/MONO, B: -10 dBu

Maximum Output Level
OUTPUT A/MONO, B: 7 dBu

Output Impedance
OUTPUT A/MONO, B: 1 k ohms

Recommended Load Impedance
OUTPUT A/MONO, B: 10 k ohms or greater

Bypass
Buffered bypass

Controls
ON/OFF switch, MEMORY/TAP switch
MODE knob, TIME knob, FEEDBACK knob, E. LEVEL Knob, PARAM knob, TONE knob, MOD DEPTH knob
TAP DIVISION button, MEMORY button

Display
7 segments, 3 characters (LED)

Indicator
TAP DIVISION indicator, MEMORY (MAN, 1–4) indicators

Connectors
INPUT (A/MONO, B) jacks, OUTPUT (A/MONO, B) jacks: 1/4-inch phone type
CTL 1, 2/EXP jack: 1/4-inch TRS phone type

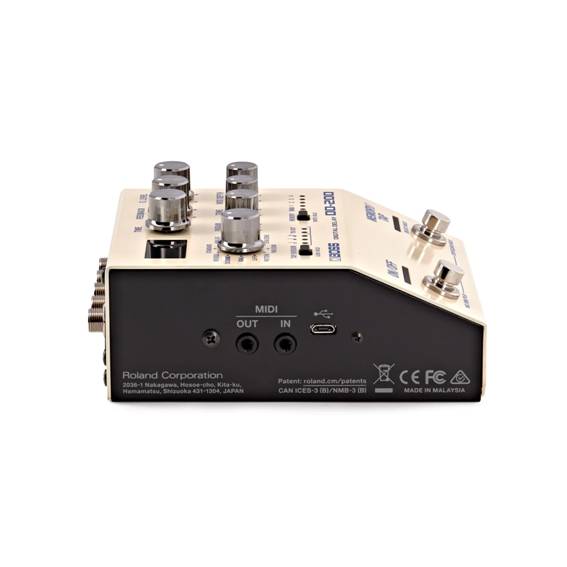

MIDI (IN, OUT) jacks: Stereo miniature phone type
DC IN jack
USB port: USB micro B-type (program update only)

Power Supply
Alkaline battery (AA, LR6) x 3, AC adaptor (sold separately)

Current Draw
225 mA

Expected Battery Life Under Continuous Use
Alkaline: Approx. 4 Hours
* These figures will vary depending on the actual conditions of use.

Accessories
Leaflet “USING THE UNIT SAFELY”
Alkaline battery (AA, LR6) x 3
Rubber foot x 4

Options (sold separately)
AC adaptor: PSA-S series
Footswitch: FS-5U
Dual footswitch: FS-6, FS-7
Expression pedal: FV-500H, FV-500L, EV-30, Roland EV-5
MIDI/TRS connecting cable: BMIDI-5-35, BMIDI-1-35, BMIDI-2-35, BCC-1-3535, BCC-2-3535
