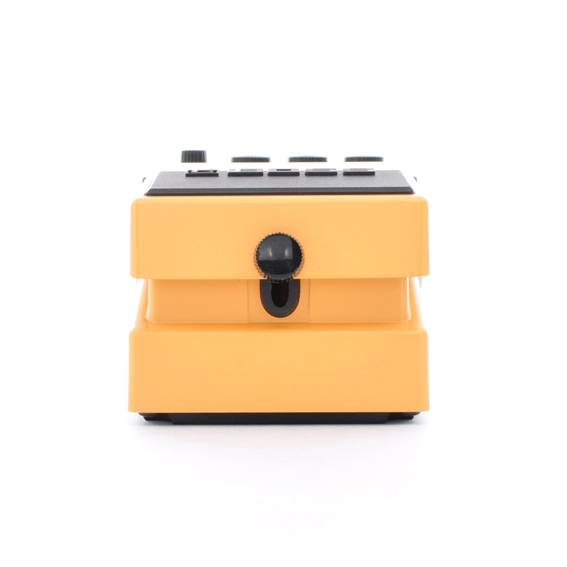

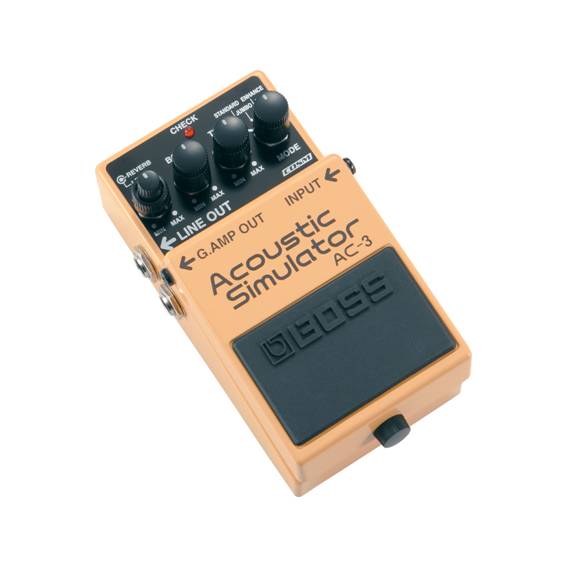

Boss AC-3 Acoustic Simulator Pedal

ADVANCED ELECTRIC-TO-ACOUSTIC GUITAR MODELING
BOSS is pleased to offer another “Authentic BOSS” Compact Pedal; the AC-3. How many times have you been onstage or in the studio with your electric guitar, and wished that you’d brought an acoustic along? For musicians who travel light, hauling an extra guitar to the gig isn’t always the most attractive option. BOSS AC-3 to the rescue! This new-generation compact pedal employs COSM modeling technology to transform any electric guitar into a variety of beautiful acoustic guitars.

FEATURES

• BOSS’s most advanced acoustic-guitar modeling in a compact pedal
• Four simulation modes: Standard, Jumbo, Enhanced, and Piezo-equipped
• Top and Body knobs for fine-tuning the virtual-body resonance
• Built-in reverb, optimized for acoustic-guitar simulation

SPECIFICATIONS

Nominal Input Level
-20 dBu

Input Impedance
1 M ohm

Nominal Output Level
-20 dBu

Output Impedance
1 k ohm

Recommended Load Impedance
10 k ohms or greater

Bypass
Buffered bypass

Controls
MODE knob
TOP knob
BODY knob
REVERB/LEVEL knob
Pedal switch

Indicator
CHECK indicator (Used for indication of check battery)

Connectors
INPUT jack: 1/4-inch phone type
LINE OUT jack: 1/4-inch phone type
G.AMP OUT(Guitar Amp Out) jack: 1/4-inch phone type
DC IN jack

Power Supply
Alkaline battery (9 V, 6LR61)
AC adaptor (PSA series: sold separately)

Current Draw
70 mA

Expected battery life under continuous use
Alkaline: Approx. 3.5 hours
*These figures will vary depending on the actual conditions of use.

Accessories
Leaflet (“USING THE UNIT SAFELY,” “IMPORTANT NOTES,” and “Information”)
Alkaline battery (9 V, 6LR61)

Options (sold separately)
AC adaptor: PSA series
