Austrian Audio OC818 Multi-pattern Large-diaphragm Condenser Microphone

161x Dilihat

Harga aslinya adalah: Rp 27.310.000.Harga saat ini adalah: Rp 21.848.000.

[embedyt] https://www.youtube.com/watch?v=fNJXvHGYfPQ[/embedyt]

Stok : Tersedia

Harga aslinya adalah: Rp 27.310.000.Harga saat ini adalah: Rp 21.848.000.

Stok : Tersedia

Tambah Ke Keranjang
SKU : 17002F10200 Kategori : Brand :

Austrian Audio OC818 Multi-pattern Large-diaphragm Condenser Microphone

Designed by a team of former AKG personnel, the Austrian Audio OC818 Studio Set is a large-diaphragm studio condenser microphone offering detailed audio capture and immense sonic customization for producers and engineers in personal and commercial recording facilities. The handmade 1″ ceramic capsule features two gold-plated polymer membranes to enable multiple polar patterns. Utilize the 5-position switch to set the OC818 to figure-8, hypercardioid, cardioid, omnidirectional, or wide cardioid. Each diaphragm is routed to a separate output connector for dual-channel recording, which allows you to design custom polar pattern responses across five frequency bands via the open-source PolarDesigner plug-in or achieve a tweakable stereo image thanks to the StereoCreator plug-in (also open-source).

Alternatively, the secondary output can be connected to the optional OCR8 Bluetooth module if you wish to enjoy convenient wireless control and selection of 255 polar patterns via the free iOS/Android PolarPilot app. Front-panel switches are provided for easy access to the pad and roll-off settings. Set the pad to -10 or -20 dB to avoid distortion when miking loud sources such as drums or guitar cabinets. Activate the high-pass filter at 40, 80, or 160 Hz for attenuation of low-frequency problems including rumble and proximity effect. The OC818’s housing is constructed of zinc-aluminum alloy for strength and durability. The OC818 Studio Set includes a vibration-reducing shockmount, a traditional mic clip, a mini 5-pin XLR to 3-pin XLR cable, a windscreen for mitigating noise from breaths and blasts of air, and a protective carry case.

Austrian Audio OC818 Specs

Microphone

  • Primary Applications Studio Recording
  • Form Factor Large Diaphragm Mic / Stand/Boom Mount
  • Intended Sound Sources Vocals, Instrument
  • Sound Field Mono
  • Operating Principle Pressure Gradient
  • Capsule Condenser
  • Diaphragm 1″ / 25.40 mm
  • Polar Pattern Cardioid, Figure-8, Hypercardioid, Omnidirectional, Subcardioid/Wide Cardioid
  • Pattern Selection Switched (Adjustable on Mic)
  • Orientation Side Address
  • Circuitry Solid-State
  • Pad -10 dB, -20 dB
  • High-Pass Filter 40 Hz, 12 dB/Octave, 80 Hz, 12 dB/Octave, 160 Hz, 6 dB/Octave
  • Tone Adjustment None
  • Gain Adjustment None
  • Indicators None
  • On-Board Controls High-Pass Filter, Pad, Polar Pattern
  • Windscreen Foam (Included)

Performance

  • Frequency Range 20 Hz to 20 kHz
  • Maximum SPL 148 dB SPL
  • Impedance 275 Ohms
  • Load Impedance > 1000 Ohms
  • Sensitivity 13 mV/Pa
  • Equivalent Noise Level 9 dB SPL A-Weighted
  • Connectivity
  • Output Connectors (Analog) 1 x XLR 3-Pin Male (on Mic), 1 x TB5M 5-Pin Male (on Mic)
  • Headphone Connector None

Power

  • Bus Power None
  • Operating Voltage 48 V ± 4 V (Phantom Power)
  • Operating Current Consumption 4 mA

Physical

  • Mounting Mic Clip/Stand Adapter, Shockmount (Included)
  • Included Case Hard Case
  • Included Filters None
  • Construction Material Zinc Alloy
  • Operating Temperature 32 to 131°F / 0 to 55°C
  • Storage Temperature -13 to 140°F / -25 to 60°C
  • Dimensions H: 1.4 x W: 2.5 x L: 6.2″ / H: 3.5 x W: 6.3 x L: 15.7 cm
  • Weight 12.7 oz / 360 g

Precision Capsule

  • CKR12 ceramic capsule is handmade in-house at Austrian Audio’s facility in Vienna
  • Made to the same critical dimensions as the classic CK12 capsules
  • Matched within 1 dB of every other OC18 or OC818 to allow the creation of stereo pairs (additional microphones available separately)

Studio Sound Quality

  • High sensitivity and low self-noise means it can handle everything from a whisper to extreme SPLs without distortion
  • Two-stage pad (-10 or -20 dB) to prevent distortion
  • High-pass filter with three positions (40, 80, or 160 Hz) for reduction of low-frequency rumble and excessive bass

Microphone Features

  • 5-position polar pattern switch for figure-8, hypercardioid, cardioid (dual-cardioid mode when using the secondary output), omnidirectional, and “preset mode,” which defaults to wide cardioid, but can be set to anything via the free iOS/Android PolarPilot app and optional OCR8 Bluetooth dongle (required for PolarPilot control)
  • Microprocessor control of polarization voltages allows remote controlled polar pattern settings
  • Dual outputs for recording each diaphragm separately
  • Balanced 3-pin XLR main output
  • Mini 5-pin XLR secondary output
  • Includes mini 5-pin XLR to 3-pin XLR adapter cable for secondary output
  • 48V phantom powered

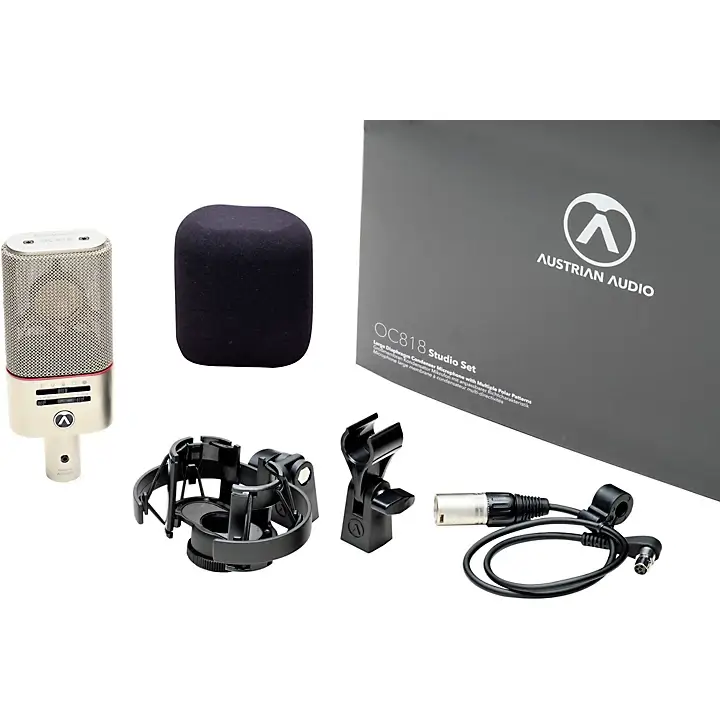

  • Includes shockmount, mic clip, windscreen, and protective carry case
  • Debuts Austrian Audio’s Open Acoustics Technology
  • Works with select downloadable open-source plug-ins for extra flexibility

PolarPilot App

  • Wireless control of polar pattern, pad, and high-pass filter settings in real time via Bluetooth (optional OCR8 required)
  • Save, recall, and share favorite settings
  • Discover and create 255 discrete polar patterns
  • One setting can be stored in OC818 for use without PolarPilot app
  • No digital technology in the audio or bias paths
  • 60-second clipping monitor/logger

PolarDesigner Plug-In

  • Craft different polar pattern responses across 1-5 crossover bands
  • Store, recall, and share presets
  • Powerful Terminator AI for eliminating or rescuing selected frequencies and instruments
  • Equalization control for imprinting the tonality of free-field or diffuse-field idealized responses
  • Per-band solo/mute
  • Supports comprehensive automation
  • Linear phase
  • Optimized for use with the OC818 in dual-output mode, but works with any dual-output source

Stereo Creator Plug-In

  • Stereo with one OC818
  • Three different stereo techniques with fantastic post-processing possibilities using two OC818s
  • One 4-channel recording, three different stereo techniques (X/Y, Mid-Side, Blumlein)
  • Adjust spatiality in post processing
  • Change stereo width in post processing
  • Change orientation in post processing

AmbiCreator Plug-In

  • Create an Ambisonic B-format signal with two OC818 microphones
