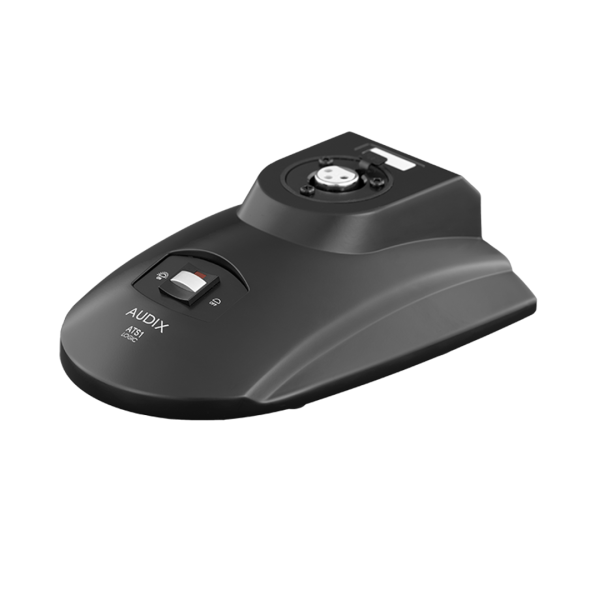

ATS1 Series
HEAVY DUTY SHOCK ABSORBENT TABLE STAND WITH LATCHING ON/OFF SWITCH
The ATS1, ATS1LX, and ATS1LP are the industry’s only programmable, shock-absorbent table stands with an LED indicator that does not require external power supplies, eliminating the added expense and complication associated with installation and wiring. The LED indicator and audio switching circuitry operate on the same phantom power source supplied to the microphone. The result is a simplified installation and reliable operation. The base has programmable functions that are changed with a simple, intuitive dip switch which can be set to operate in Toggle On, Toggle Off, Momentary Talk, and Momentary Mute modes. Also supplied within the base is a Low Cut Filter offering additional protection from bass frequencies that may cause rumble or hum. The ATS1LX and ATS1LP can be further programmed to operate seamlessly with automated teleconferencing and switch systems in external logic control mode.
The ATS is manufactured with a precision die-cast zinc alloy base, durable black E-coat finish, LED indicators, and a noise-free mechanical switch.
Designed, assembled, and tested by Audix in the USA.
MODEL VARIATIONS
- ATS1 – Heavy duty shock absorbent table stand with XLR connector, low cut filter, LED indicator, programmable on/off switch with momentary, push-to-talk, and push-to-mute functions.
- ATS1LX – As above with added logic circuitry for remote control. Includes choice of 5 pin XLR output connector or phoenix connector.
- ATS1LP – As above with phoenix connectors.
- ATS10 – Heavy duty shock absorbent table stand with latching on/off LED switch and XLR connector.
