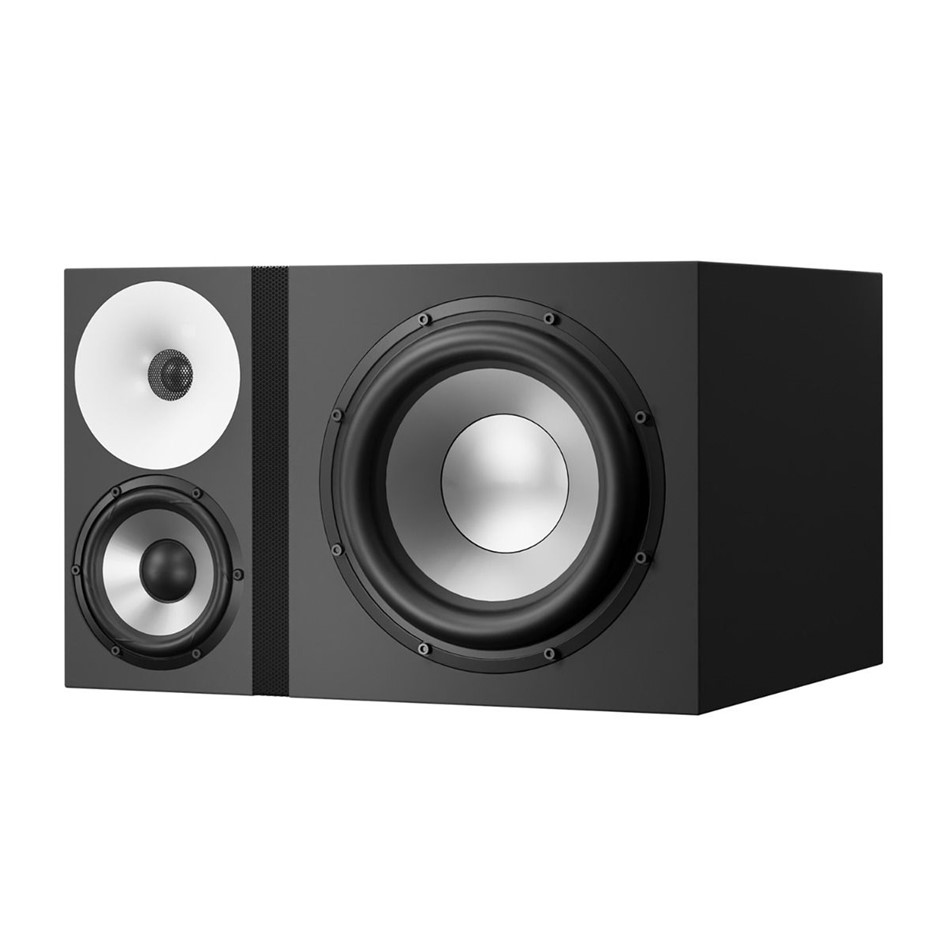

Amphion One25A-3way Active Speaker 1/2 Cabinet – Right
12 Views
Availability: Pre Order
Product Description
Active full range studio monitor
The One25A 3-way studio monitor is the culmination of our 25-year commitment to advanced acoustic design, pure refined signal path, and meticulous craftsmanship – enhanced with the benefits of active design without any of the downsides.
Unique highlights
Industry leading translation
Trusting what you hear builds confidence, ensures better results and raises productivity. Amphion monitoring allows focusing on things that count which saves time and helps meet the ever tightening deadlines.
Pinpoint imaging
Due to their phase coherence and pinpoint imaging, Amphion monitors translate precisely to any playback device, as they allow you to correctly reproduce information in all planes including width, height, and depth.
Simple, refined signal path
Active speakers typically suffer from a lack of resolution due to their complex signal paths. The One25A is free of dynamics and detail-degrading DSP and AD/DA stages, which leads to maximum resolution and performance.
Isolated independent chambers
New midrange and tweeter are in an isolated sealed chamber which minimizes the bass woofer’s negative effects like pressure changes, leading to high midrange and treble resolution ensuring crystal clear transparency.
Acoustic symmetry
The baffle around the midrange is acoustically symmetrical, which leads to smooth frequency curve and precise imaging. Amphions proprietary 5th generation U/D/D improve driver integration and speaker performance in a room.
Removable Amp Pack
Placing the amplifier inside the monitor negatively interferes with moving elements. All the electronics of One25A are housed outside the cabinet in a rigid steel enclosure, which is also removable for soffit mounting.
Specifications
Operating principle
Active, 3-way, sealed cabinet
Drivers
1″ titanium tweeter (new)
5¼″ aluminium mid (new)
10″ aluminium bass
Crossover points
100 Hz / 2000 Hz
Amplifier power
Tweeter / Midrange 2x 205 W THD + N 0,002%
Bass 700 W
Frequency response
22 – 55 000 Hz (-3dB)
Max SPL
105 dB
Connections
Balanced XLR Input, 1x Female XLR, pin 2-hot
Mains
230 V / 50 Hz or 115 V / 60 Hz (Factory preset)
Measurements
H x W x D
H x W x D
316 x 510 x 488 mm
12.44″ x 20.08″ x 19.2″
Without amplifier:
316 x 510 x 427 mm
12.44″ x 20.08″ x 16.8″
Woofer suspension protrudes out 12 mm / 0.47″
Weight
41 kg (90.4 lbs)
Handmade in Finland
| Berat | 45 kg |
|---|---|
| Dimensi | 50 × 60 × 60 cm |
