Product Description
ADAM AUDIO T8V Nearfield Studio Monitor Two Way
The T8V is an affordable, professional 2-way powered studio monitor with an 8˝ woofer and ADAM Audio’s latest addition to the T Series. Designed around the same technology, features and build quality as its smaller siblings, the T8V provides best-in-class characteristics and sound performance.
The T8V impresses with a multitude of features that bring real benefits to the user: The U-ART tweeter’s 4:1 velocity transfer ratio, in combination with the new Class D amplifiers’ high dynamic range, yield respective max. peak SPL of 118 dB per pair. The tweeter, which extends up to 25 kHz, works as a team with the HPS Waveguide. This allows an optimal radiation of the high frequencies, which means the advantage of a more controlled, larger usable sweet spot during monitoring. With a bass extension down to 33 Hz, the T8V is especially suitable for users who produce bass-heavy music.
The T8V is the perfect studio speaker for those who have always wanted to work with an 8“ monitor from ADAM Audio.
Features
- U-ART 1.9” Accelerated Ribbon Tweeter with HPS Waveguide
- Polypropylene 8” woofer and rear-firing bass-reflex port
- Cumulated Amp. Power RMS: 90 W
- Frequency Response: 33 Hz – 25 kHz (-6 dB)
- Max. SPL Per Pair at 1 m: ≥118 dB
TECHNICAL DATA
WOOFER
| Number | 1 |
| Basket Ø | 8″ (203 mm) |
| Voice Coil Ø | 1″ (26 mm) |
| Cone Material | Polypropylene |
TWEETER
| Number | 1 |
| Type | U-ART |
| Diaphragm Area | 4 inch² (2420 mm²) |
| Equiv. Diaphragm Ø | 1.9″ (48 mm) |
| Velocity Transform Ratio | 4:1 |
| Diaphragm Weight | 0.17 g |
| Waveguide | HPS |
BUILT-IN AMPLIFIERS
| Number | 2 |
| Woofer | 1 |
| Type | PWM |
| Amp. Power RMS | 70 W |
| Tweeter | 1 |
| Type | PWM |
| Amp. Power RMS | 20 W |
CONTROL OPTIONS
| Input Sensitivity | -10 to 4 dB |
| Gain | Yes |
| High Shelf EQ > 5 kHz | – 2 dB, 0 dB, 2 dB |
| Low Shelf EQ < 300 Hz | – 2 dB, 0 dB, 2 dB |
INPUT CONNECTORS
| Analog | XLR / RCA |
| Input Impedance | 10 kOhm / 20 kOhm |
GENERAL DATA

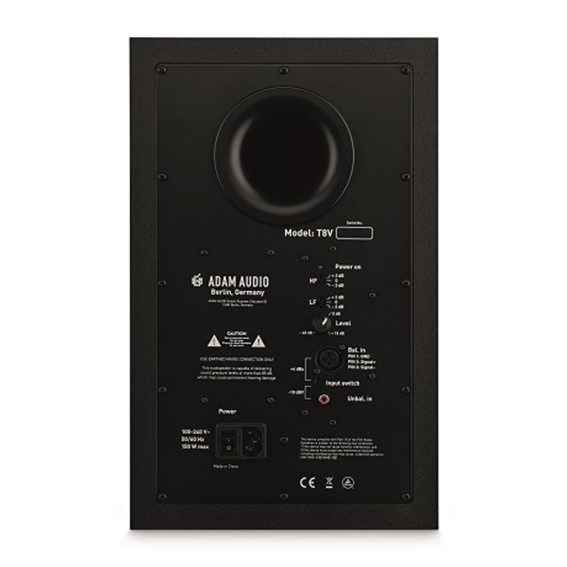

| Panel | Rear |
| Frequency Response | 33 Hz – 25 kHz (-6 dB) |
| THD > 80 Hz | 0.5 % |
| Max. SPL per pair at 1 m | ≥118 dB |
| Crossover Frequency | 2.6 kHz |
| Max. Power Consumption | 150 W |
| Weight | 21.6 lb (9.8 kg) |
| Height x Width x Depth | 15.8″ x 9.8 “ x 13.2“ (400 mm x 250 mm x 335 mm) |
| Warranty | 5 years (2 years warranty plus 3 years optional with product registration) |
| Delivery Contents | Power cord, Quick Start Guide |
| Berat | 18 kg |
|---|
