Yamaha DTX720K Electronic Drum Set

Yamaha DTX720K Electronic Drum Set

Yamaha DTX720K combining the superior playability of the DTX-PADs, real hi-hat controller and natural sounds, this system is superb for authentic training to really improve your acoustic drumming skills.

SPESIFIKASI DTX720K

Konfigurasi

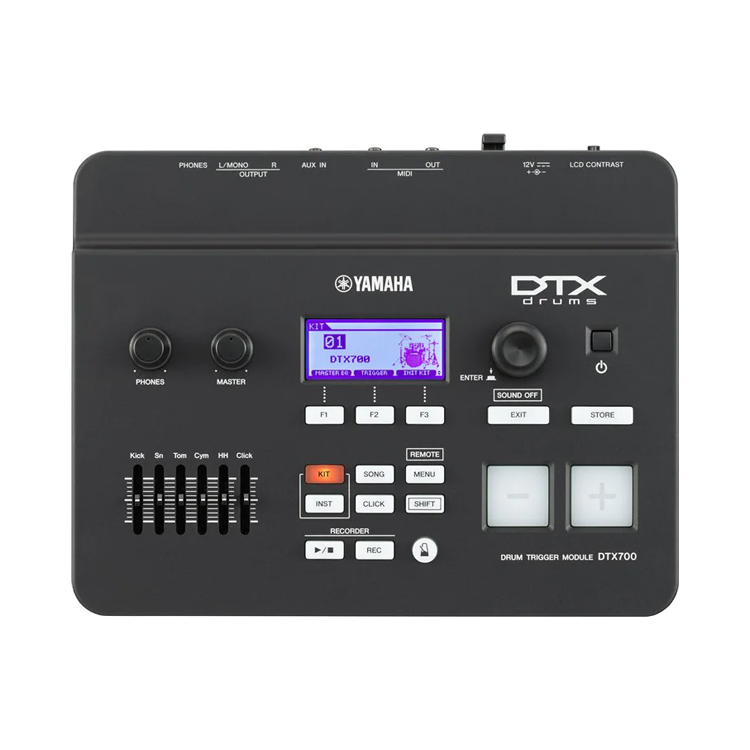

Modul Pemicu : DTX700
Sistem Rack : RS502

Ukuran/Berat (Modul Trigger)
Dimensi : -Lebar : 277 mm (10-29/32 inch), -Tinggi : 213 mm (8-25/64 inch), -Kedalaman : 95 mm (2-3/4 inch)
Berat : 1.5 kg (3.31 lbs)

Tone Generator
Polyphony Maksimal : 64 notes
Efek : -Reverb: 6, -Chorus: 6, -Variation: 42, -Kit EQ: 4 band, -Master EQ: 3 bands

Penghasil nada
Suara : -Drum and percussion: 1,268, -Melodies: 128
Drum kit : -Preset: 50, -User: 10 * all of which may be edited and overwritten

Sequencer
Kapasitas Not : Approx. 152,000 notes
Resolusi Not : 480 ppq (parts per quarter note)
Tipe Perekam Lagu : Real-time replace
Susunan Lagu : 1 track
Lagu : -Demo: 2, -Practice: 44, -Pad: 17, -User: 30 *all of which may be edited and overwritten
Format Sequence : -Proprietary, -SMF format 0

Klik
Tempo : 30 to 300 BPM, Tap Tempo supported.
Ketukan : -1/4 to 16/4, -1/8 to 16/8, -1/16 to 16/16
Waktu : -Accents, -Quarter note, -Eighth note, -Sixteenth note, -Triplet
Fungsi Training : -Measure break, -Groove check, -Rhythm gate

Lain-lain
Konektor :

• -USB TO DEVICE/TO HOST, OUTPUT [L/MONO] (Standard mono phone),
• -OUTPUT [R] (Standard mono phone),
• -Trigger Input 1 to 8, 11 (Standard stereo phone,
• -L: Trigger Input, R: Rim Switch),
• -Trigger Input 9 and 10 (Standard stereo phone,
• -L: Trigger Input, R: Trigger Input),
• -HH-KICK (Standard stereo phone) ,
• -HI-HAT CONTROL (Standard stereo phone),
• -AUX IN (Stereo Mini),
• -PHONES (Standard stereo phone),
• -MIDI IN/OUT

Aksesoris : -Power Adaptor (PA-150, or an equivalent), -Module holder, -Module holder fastening screws x 4, -Owner’s Manual, -Data List, DVD-ROM (Cubase AI)

Audio Import
Contoh : 500
Contoh Data Bit : 16 bits
Contoh Waktu * Mono/Stereo : -44.1kHz: 23 sec., -22.05kHz: 46 sec., -11.025kHz: 1 min. 32 sec., -5.5125kHz: 3 min. 4 sec.
Contoh Format : WAV, AIFF
