Visual Sound CS7-E, 1 Spot Pro CS7 Europe

Rp 3.032.700 Rp 2.426.160

In stock

SKU: VIS03010012 Categories: , Brand:

Description

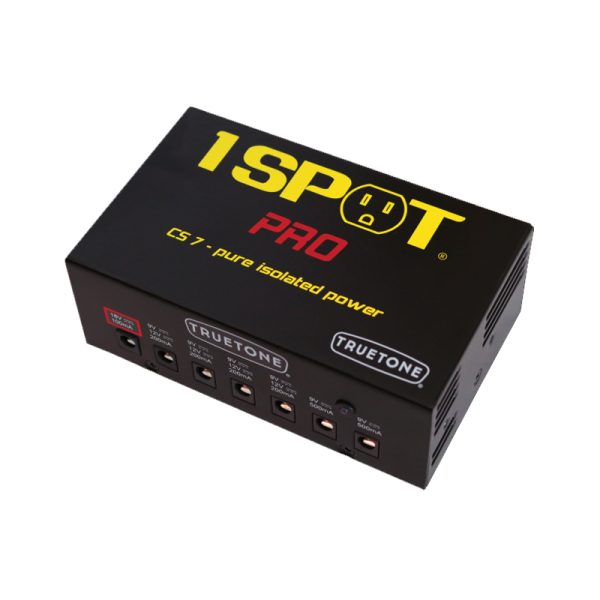

Visual Sound CS7-E, 1 Spot Pro CS7 Europe

Input Voltage


The 1 SPOT Pro CS7 can be used anywhere in the world without the use of a step-up or step-down transformer. Like our 1 SPOT, it transforms wall voltage from 100-240Vac, and converts it into the stated voltages on the front panel of the unit.

Cables


Power cables (all are center pin negative polarity):
(4) DC18 (5.5×2.1mm barrel plugs; 18” (457mm) – White
(3) DC12 (5.5×2.1mm barrel plugs; 12” (305mm) – Yellow

Converter Plugs:
(1) CL6 – (5.5×2.1mm barrel input, 5.5×2.5 barrel output; reverse polarity)
Green – for Line 6 DL4/M9/etc. and some Eventide pedals.
(1) CYR – (5.5×2.1mm barrel input, 5.5×2.1 barrel output; reverse polarity)
Red – reverse polarity converter
(1) C35 – (5.5×2.1mm barrel input, 3.5mm male output; tip positive)
Black – 3.5mm (1/8”) plug converter
(1) CBAT – (5.5×2.1mm barrel input, Black battery clip output) Connects to battery clip wires inside pedals that do not have DC jacks. Do NOT connect to a battery!

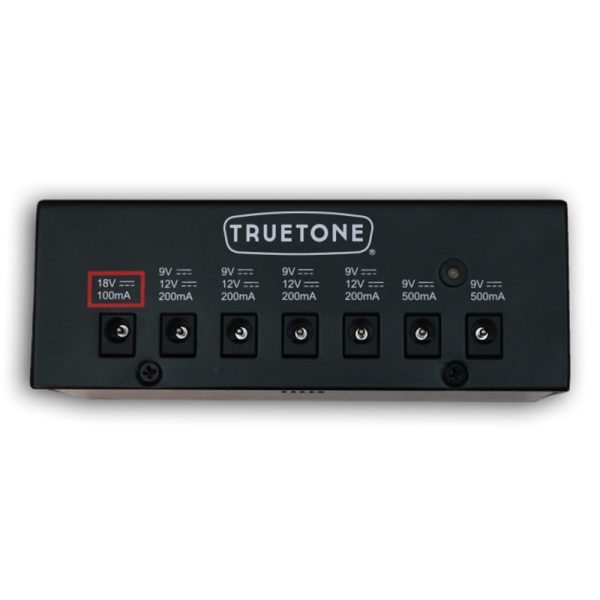

Available Output Voltages


Output 1: 18VDC (100mA)
Outputs 2-5: 9VDC or 12VDC (200mA)
Outputs 6-7: 9VDC (500mA)

Additional information

Weight 2 kg
