Royer Labs R-10 Mono Ribbon Microphone

40 x Dilihat

Rp 9.800.800

Stok : Stok habis

SKU : R-10 Kategori : Brand :

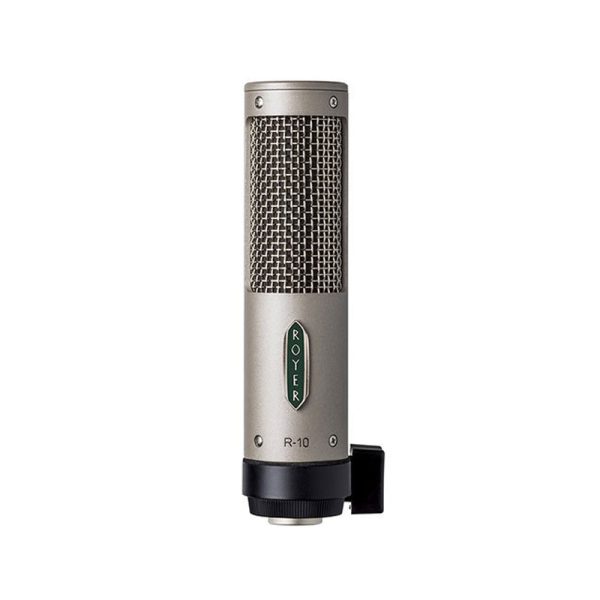

Royer Labs R-10 Mono Ribbon Microphone

R-10 Studio/Live Ribbon Microphone

The Royer R-10 is a passive mono ribbon microphone designed for use in the studio and on live stages. Hand-built in our Burbank California factory, the R-10’s sound and performance are all-Royer and it handles SPLs of up to 160 dB @ 1 kHz. The R-10’s compact size and mounting system allows for flexible, unobtrusive positioning.

FEATURES

• High SPL capabilities for electric guitar, brass and other close miking applications

• Multi-layered wind screen provides superior protection to ribbon element

• Internally shock-mounted ribbon transducer gives increased durability

• Passive design and custom transformer minimize high SPL overload

• Hum-bucking transducer design delivers extremely low residual noise

• Ribbon element not affected by heat or humidity

• Absence of high-frequency peaks, “ringing” and phase shifts

• Equal sensitivity from front or back of the element

RECOMMENDED APPLICATIONS

• Close miking in the studio and on live stages

• Electric & acoustic guitars

• Drum overheads, kick drum (see manual for position), room miking

• Percussion instruments

• Brass, horn sections

• Strings – solo & sections

• Acoustic piano

• Vocals

Acoustic Operating Principle: Electrodynamic pressure gradient
Polar Pattern: Figure-8
Generating Element: 2.5-micron aluminum ribbon
Magnets: Rare Earth Neodymium (Grade 52)
Frequency Response: 30Hz-15,000Hz /- 3dB
Sensitivity: -54dBv (re. 1v/pa)
Output Impedance: 100 Ohms
Maximum SPL: 135dB @ 50 Hz, 160dB @ 1kHz
Recommended Load Impedance: 700 Ohms (or greater)
Output Connector: Male XLR 3-pin (Pin 2 Hot)
Dimensions: Length including mounting base: 5 7/8 inches (149 mm) Width 1 3/8 inches (35 mm)
Weight: 13 oz (368 grams)
Shipping Weight: Single: 2.5 lbs, Matched Pair: 4 lbs

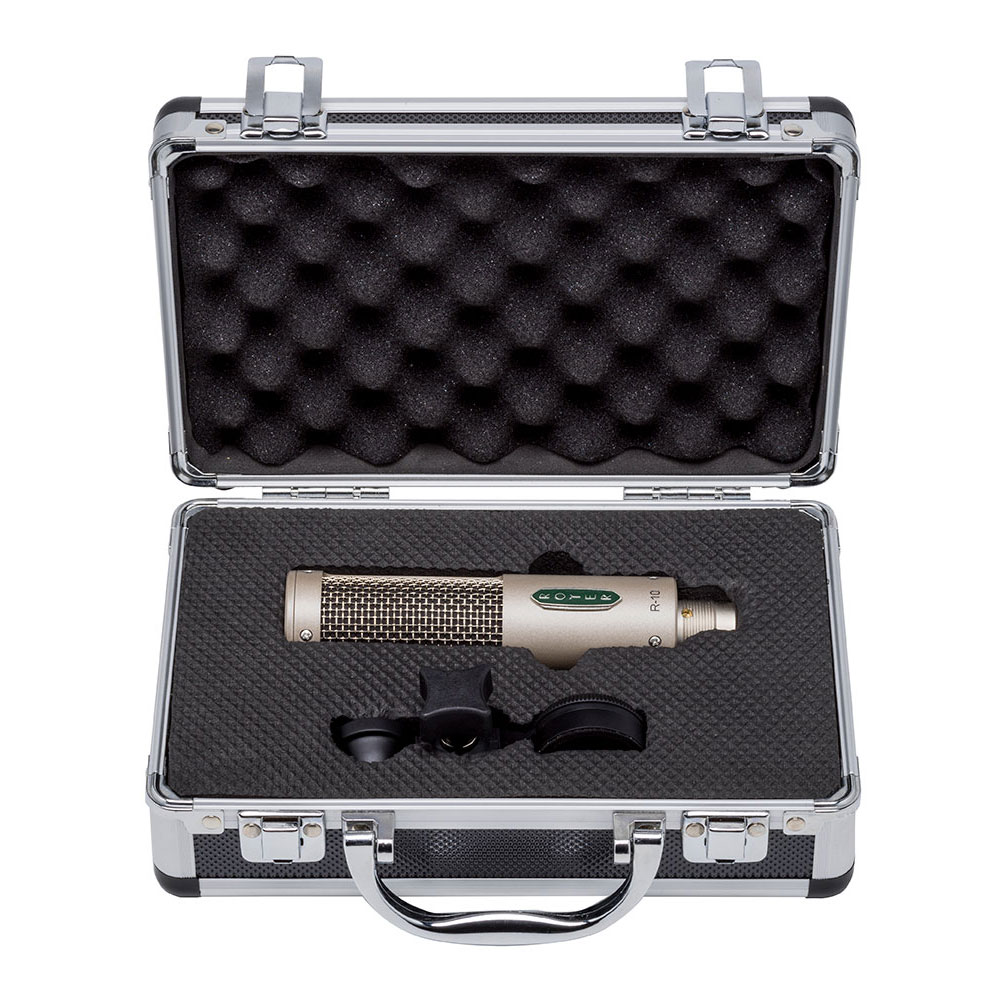

Accessories: Microphone Holder, Mic Sock, Carrying Case
Microphone: Adjustable Swivel Mount (Black)
Microphone Warranty: Five Year, First Re-ribbon free in first year
Polar Pattern
 polar pattern
Frequency Response
