Roland TM-6 Pro Drum Trigger Module

The Professional Way to Trigger Sounds and Complement Your Acoustic Drums Onstage

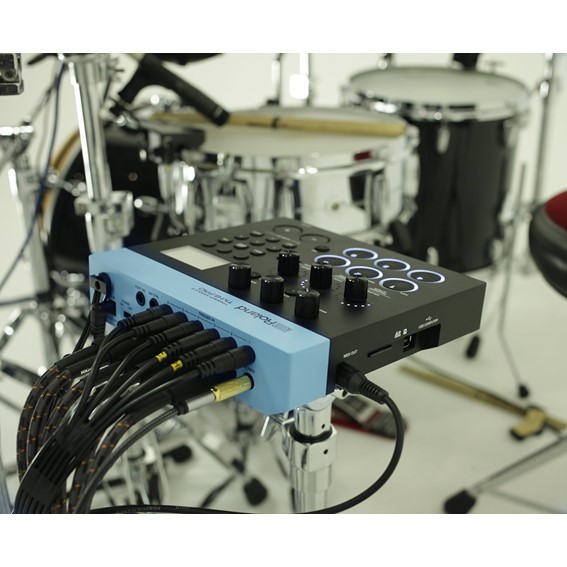

Life as a working drummer is not without pressure. From one job to the next, you’ll be expected to move fast and find the perfect drum sound, satisfying your audience, fellow musicians, engineers and the all-important paying client. But that’s a big challenge when you’re playing a traditional kit. Acoustics can vary drastically from venue-to-venue. Mixing engineers all take a different approach. You could be presented with unknown material with moments to spare, or asked to replicate the drum sound from a studio recording. Life gets much easier when you add the Roland TM-6 PRO to your favorite acoustic drum kit. Smart, simple and discreet, this new trigger module gives you instant and reliable access to every drum sound in the book, on every stage you play.

FEATURES

• Pre-loaded with 500 one-shot sampled sounds, including tones recorded at world-class studios
• 268 V-Drums sounds onboard for expressive drum performance
• 80 ready-to-use drum kits featuring high-quality preloaded sounds, plus natural and expressive V-Drums sounds
• Original user samples can be imported from SD card to accurately reproduce studio tones onstage
• Six trigger inputs available for connecting up to 12* triggers or pads (* Required optional Y-cable)
• Powerful layer function to customize sounds
• Three Sound Modify knobs for intuitive control of volume, pitch, decay or other effects including MFX and Transient
• Newly developed Transient effect to effectively control attack and release of drum sounds
• Independent EQ, Transient effect, Compressor and MFX for each trigger, plus Master Comp and Master EQ for mastering sounds
• High-speed trigger response faithfully follows your drumming
• Backing track audio data can be played directly from SD memory
• Independent volume control for SONG, CLICK and Headphones
• LED indicators shows status of the triggers, even with the lights down
• Works as trigger to MIDI convertor with audio interface (8-out/8-in)

SPECIFICATIONS

Drum Kits

100

Instruments

Preset instruments: 268
Factory preloaded user samples: 500

User Sample Import

Number of user sample: Maximum 1,000 (includes factory preloaded 500 user samples)
Sound length (total): 48 minutes in mono, 24 minutes in stereo
File formats that can be loaded: WAV (44.1 kHz, 16/24 bits)

Effect Types

Pad Equalizer: each pad (HEAD/RIM independently)
Pad Transient: each pad (HEAD/RIM collectively)
Pad Compressor: each pad (HEAD/RIM collectively)
Pad Multi-Effects: 30 types: each pad (HEAD/RIM collectively)
Reverb Type: 5 types
Master Compressor
Master Equalizer

Song Player (SD Card)

Audio file: WAV (44.1 kHz､16/24 bit), MP3 (*1)

Display

Graphic LCD 128 x 64 dots

External Memory

SD card (SDHC supported)

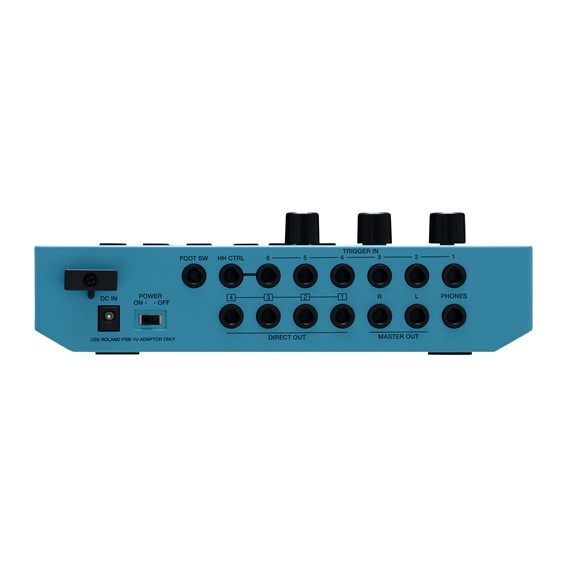

Connectors

TRIGGER IN jack x 6: 1/4-inch TRS phone type
PHONES jack: Stereo 1/4-inch phone type
MASTER OUT jacks (L, R): 1/4-inch phone type
DIRECT OUT jack x 4: 1/4-inch phone type
HH CTRL jack: 1/4-inch phone type
FOOT SW jack: 1/4-inch TRS phone type

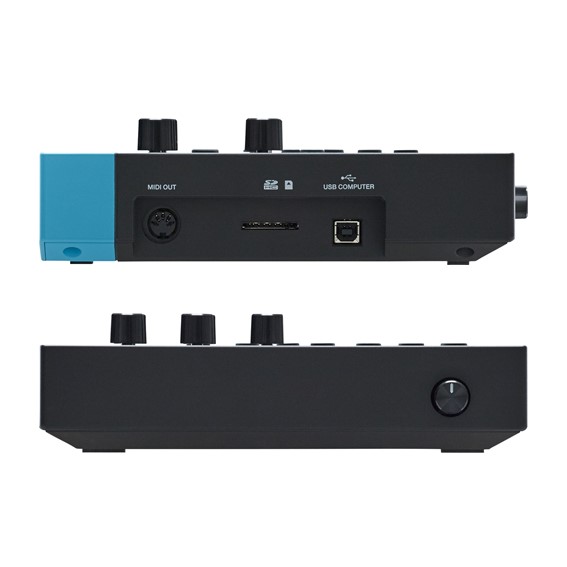

MIDI OUT connector
USB COMPUTER port: USB B type (USB Hi-Speed AUDIO/MIDI)
DC IN jack

Number of USB Audio Record/Playback Channels

Sampling rate (Original): 44.1 kHz
Sampling rate (with Sampling rate converter): 96 kHz, 48 kHz
Record: 8 channels
Playback: 8 channels

Power Supply

AC adaptor (DC 9 V)

Current Draw

453 mA

Accessories

AC adaptor
Quick Start
Leaflet “USING THE UNIT SAFELY”
Screw x 4 (*2)

Options (sold separately)

Acoustic drum trigger: Roland RT series
Pads: PD series, PDX series, BT-1
Cymbals: CY series
Kick: KD series
Kick pedal: KT series
Hi-hat: VH-11
Hi-hat control pedal: FD series
Footswitch: BOSS FS-5U, FS-6
Personal drum monitor: PM series
Pad stand: PDS-10
All purpose clamp: APC-33
SD card
