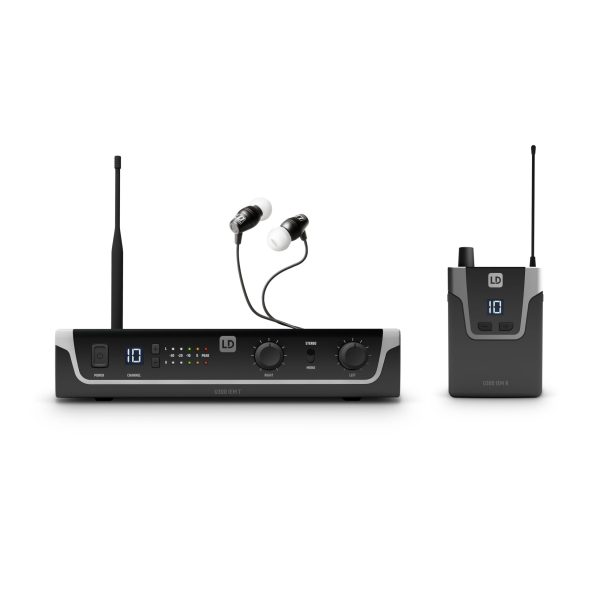

LD Systems U306 IEM HP In-Ear Monitor System with Earphones (655 – 679 MHz)

173 x Dilihat

Harga aslinya adalah: Rp 6.680.000.Harga saat ini adalah: Rp 5.344.000.

Stok : Tersedia

SKU : LDU306IEMHPINT Kategori : Brand :

LD Systems U306 IEM HP In-Ear Monitor System with Earphones (655 – 679 MHz)

FEATURES

  • Reliable wireless transmission with a range of up to 100 m
  • Low-reaching frequency response
  • 12 selectable channels
  • Choice of stereo or mono mode
  • Up to 6 systems can be used simultaneously
  • 10-hour bodypack operating time with two AA batteries
  • Unlimited number of bodypacks can be set to the same transmission frequency
  • Channel and RF reception displayed on bodypack
  • Transmitter in rugged metal casing with stereo level display
  • Removable antenna with BNC connection
  • 19” rack assembly kit included.
  • Earphones included

SPECIFICATIONS

General

Product type
In-ear Monitoring
Type
Set
Transmission frequency range
655 – 679 MHz
Weight
1,51 kg
LDIEHP1 – LD Systems U306 IEM HP Professional In-Ear Headphones black

Product type
Headphones
Frequency response
30 – 20.000
Impedance
16 Ohm(s)
Connection type
3.5 mm TRS
Cable length
1.5 m
Weight
0,088 kg

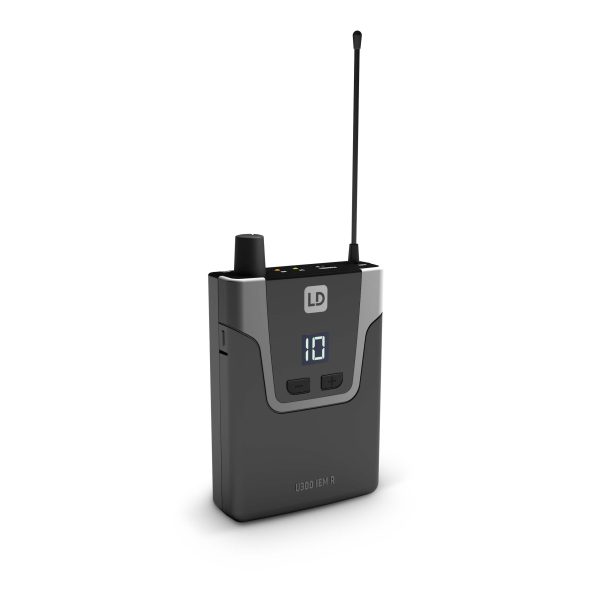

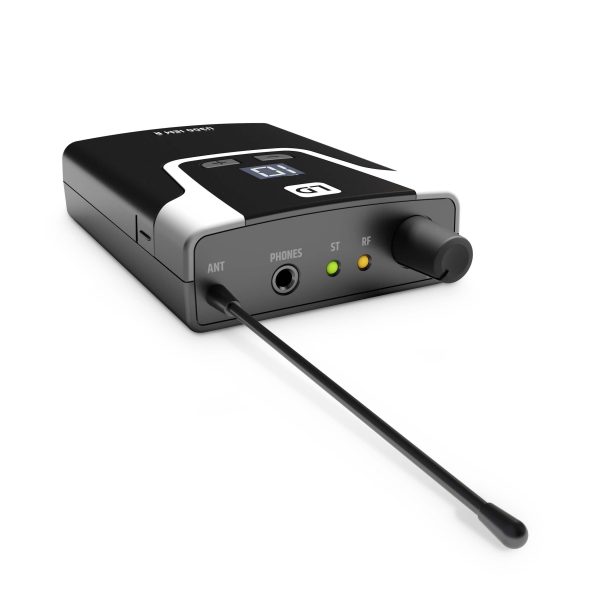

LDU306IEMR – LD Systems U306 IEM HP Receiver

Product type
In-ear Monitoring , In-ear Monitoring Accessories
Type
Receivers
Transmission frequency range
655 – 679 MHz, 655 – 679 MHz
Channels
12
Frequency response
50 – 16.000
Transmission method
FM, mono/stereo
Total Harmonic Distortion (THD)
0.25 %
Audio output
3.5 mm TRS
Minimum connected impedance
16 Ohm(s)
Max. audio output level
100 (@ 16 Ohms load capacity) mW, 73 (@ 33 Ohms load capacity) mW
Antenna connector
Fixed to housing
Controls
Channel down , Channel up , On/off switch , volume control
Indicators
LC display , RF (LED)
Weight
0,085 kg
Power supply
2 x 1.5 V AA
Operating time
< 10 hours
Width
64 mm
Height
103 mm
Depth
24 mm
Features
Battery status LED , incl. batteries

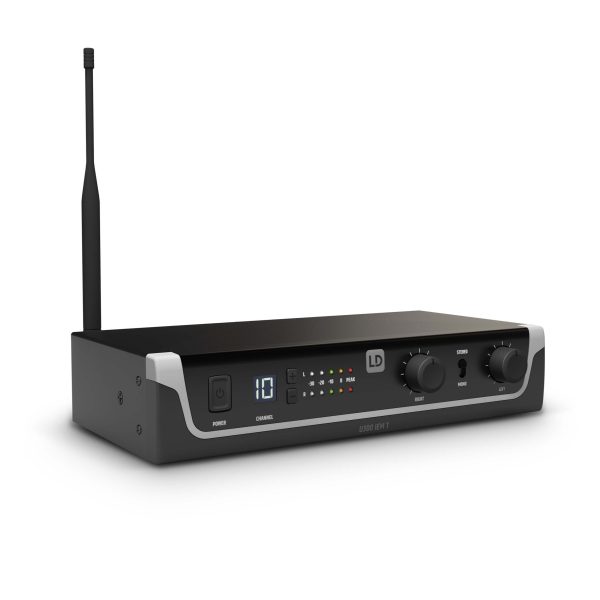

LDU306IEMT – LD Systems U306 IEM HP Transmitter

Product type
In-ear Monitoring , In-ear Monitoring Accessories
Type
Set , Transmitters
Transmission frequency range
655 – 679 MHz, 655 – 679 MHz
Channels
12
Frequency response
50 – 16.000
Modes of operation
mono/stereo
Transmission method
FM, mono/stereo
Rated HF output power
10 mW
Total Harmonic Distortion (THD)
<0,5%
Signal-to-noise ratio
90 dB
Dynamic range
88 dB
Antenna connector
BNC
Inputs
2
Controls
input level , Mono/stereo switch , Power On/Off
Input connectors
6.3 mm jack , XLR
Indicators
LCD display
Weight
0,66 kg
Input impedance (kOhms)
8.5 kOhm
Input sensitivity
-4.5 dbu
Power supply
12 – 18 V DC
Width
212 mm
Height
43 mm
Depth
123 mm
Power consumption
1.7 W
Accessories (included)
19″ Rack mount kit , BNC-Antenna , Power supply
Berat 2 kg
