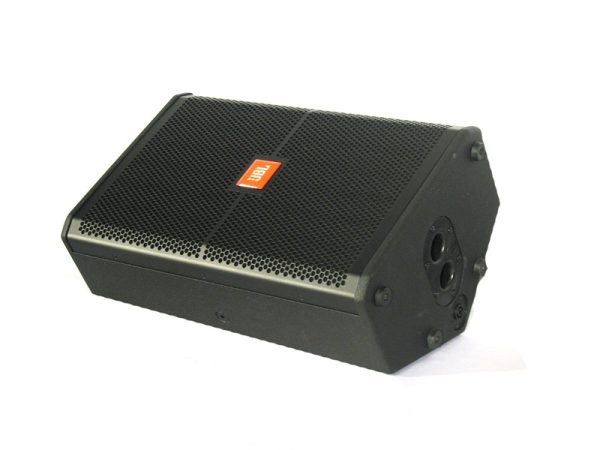

12″ High-Power Two-Way Stage Monitor
The SRX712M was designed with one goal – build the lightest, smallest, loudest, clearest stage monitor possible while delivering strikingly professional appearance.
- Compact and low-profile for minimal obstruction of audience sight-lines.
- 90°x 50° nominal coverage.
- Bi-amplified or full-range passive operation.
- Dual-angle pole socket for applications requiring tripod mounting.
- Optional yoke available for trussmounted or suspended applications.
- Neodymium magnet Differential Drive® woofer for high-power capacity and very light-weight.
- 3 in (diaphragm) neodymium magnet compression driver.
|Power Rating||800 W / 1600 W / 3200 W|
|Frequency Range||70 Hz – 20kHz (-10 dB)|
(H x W x D)
|349 mm x 546 mm x 260 mm|
(13.75 in x 21.5 in x 10.25 in)
|Frequency Response||83 Hz – 18 kHz (±3 dB)|
|Coverage Pattern||90º x 50º nominal|
|Net Weight||15 kg (33 lb)|
