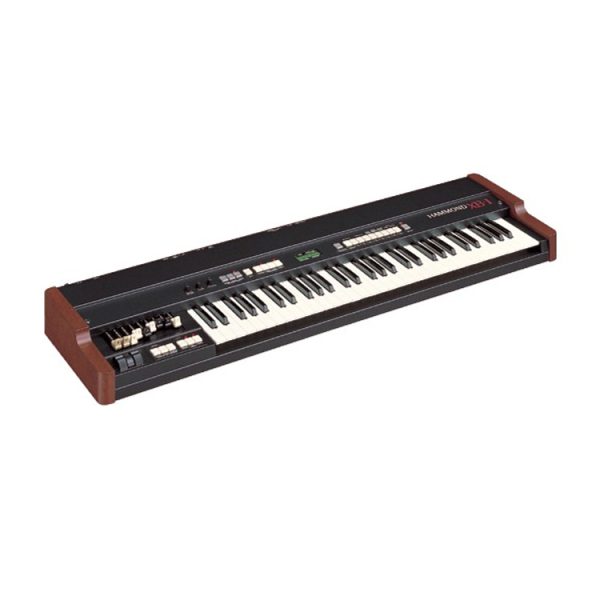

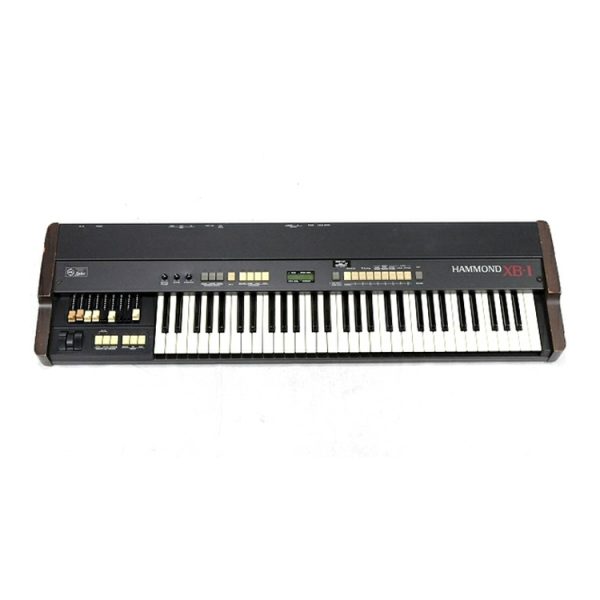

The Hammond Organ XB-1

Specifications

• Keyboard consisting of 61 keys, with velocity

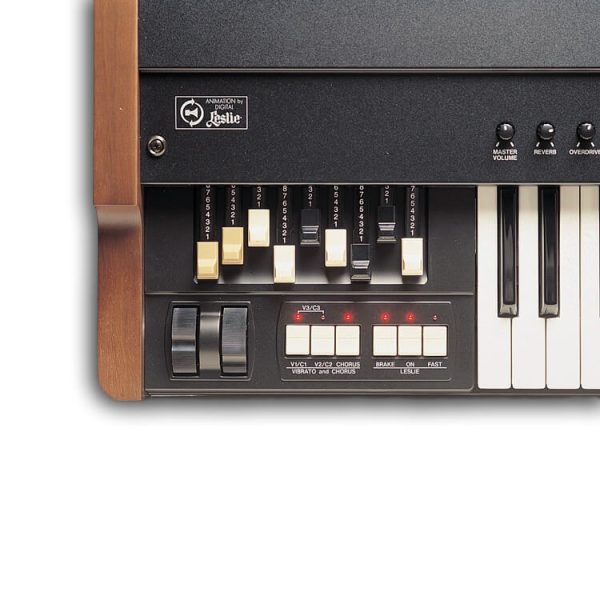

• Drawbar (9pitch)16′,5 1/3′,8′,4′,2 2/3′,l 3/5′,l 1/3′,1′
• Sound generator: VASE-II & DRB system
• Drawbar Voice B3-Type/ Mellow / Bright
• Internal Memory 64 patches I cancel
• 64 presets (8 x 8 bank)
• Vibrato Digital Scanner Vibrato (Vl,V2,V3,CI,C2,C3)
• Effect Reverb (4 modes)
• Leslie Digital Leslie (2 Rotor type)
• Wheels: Pitch Bend, Modulation
• Midi Upper,Lower,Pedal (3Part Multitimbral)
• Panel Controls Leslie SLOW/FAST,ON/OFF,BRAKE/THRU
• Vibrato VIBRATOI, VIBRAT02, CHORUS
• Percussion SECOND, THIRD, DECAY FAST, SOFT
• D/B select Upper, Lower, Pedal
• Split function (on/off)
• Volume Control: Master, Reverb, Overdrive
• Display 16-character x2-line backlight LCD
• Connections: Line out, Leslie, Midi in/out/thru headphones, footswitch, expression pedal
• Dimensions 1160(W) x 319(D) x 88(H)mm
• Weight: 11 Kg
