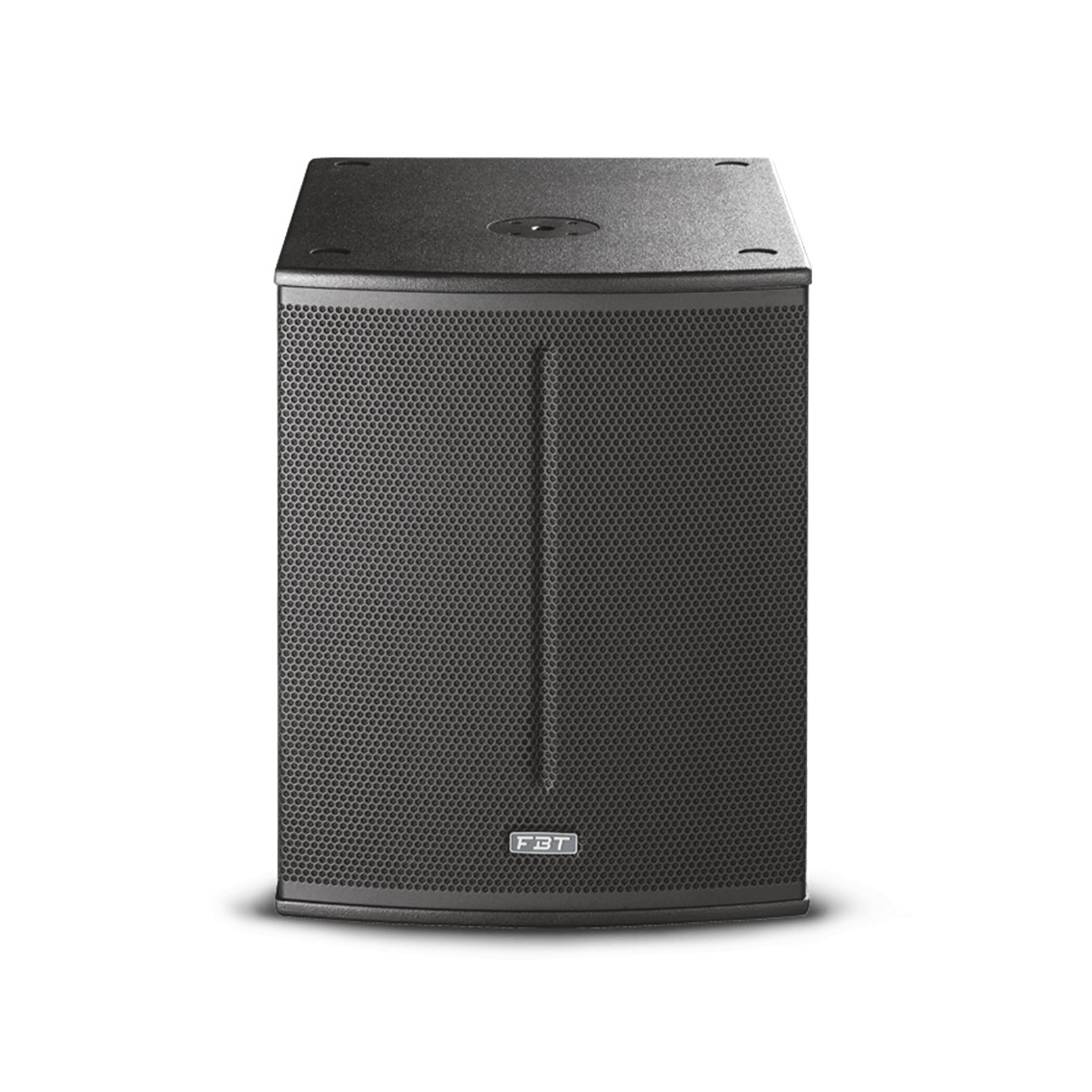

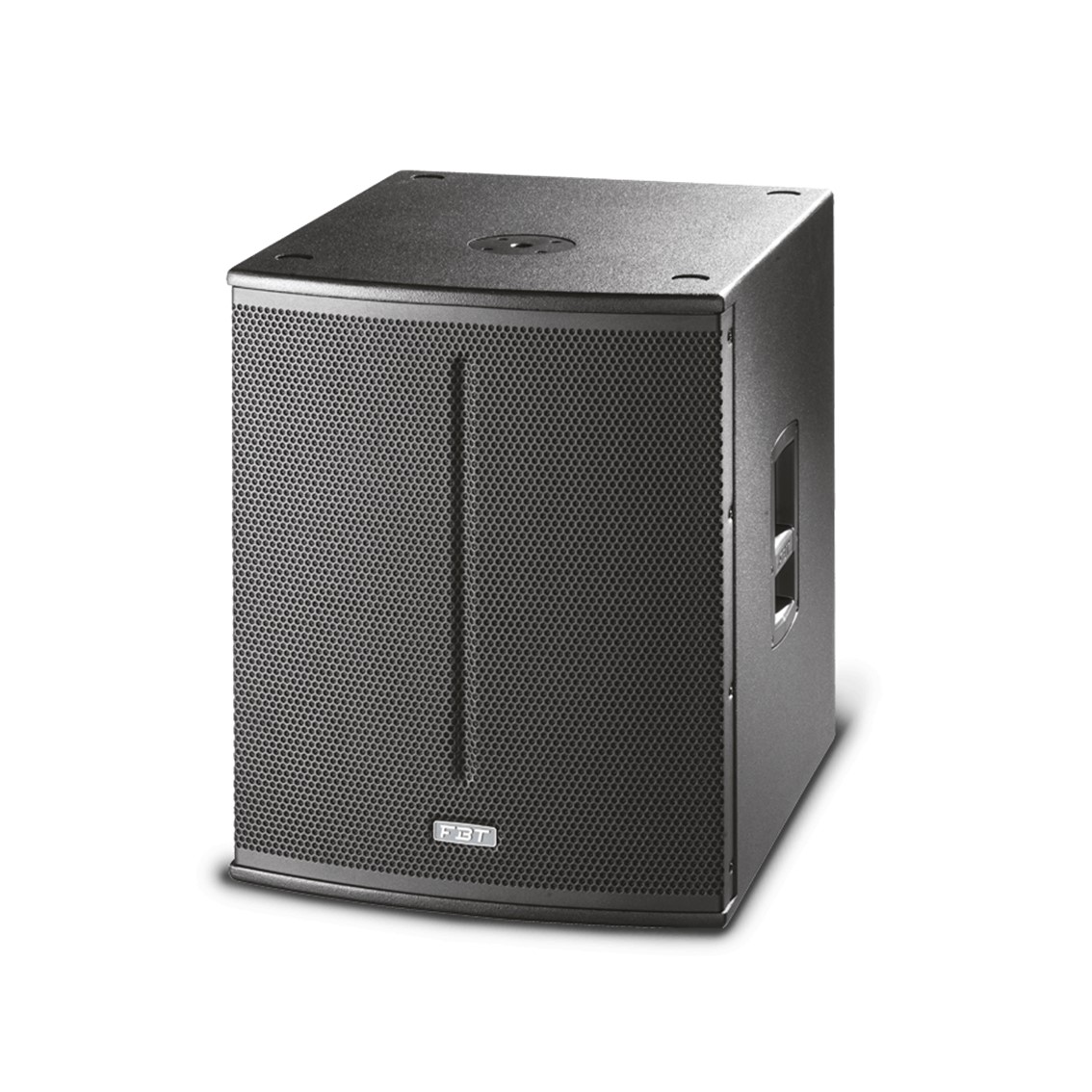

FBT X-SUB 118SA 18 inch Active Subwoofer, 1200W

Deskripsi Produk

X SUB 118SA – ACTIVE SUBWOOFER 18 inch

X SUB 115SA is an active 15 inch subwoofer with bass-reflex design, engineered to complement the X LITE and X PRO series by extending low-frequency performance in both portable and installed sound systems. It is equipped with a 15 inch woofer featuring a 3 inch voice coil, powered by a 1200W Class D amplifier, delivering up to 135 dB SPL and a frequency response from 42 Hz to 120 Hz.

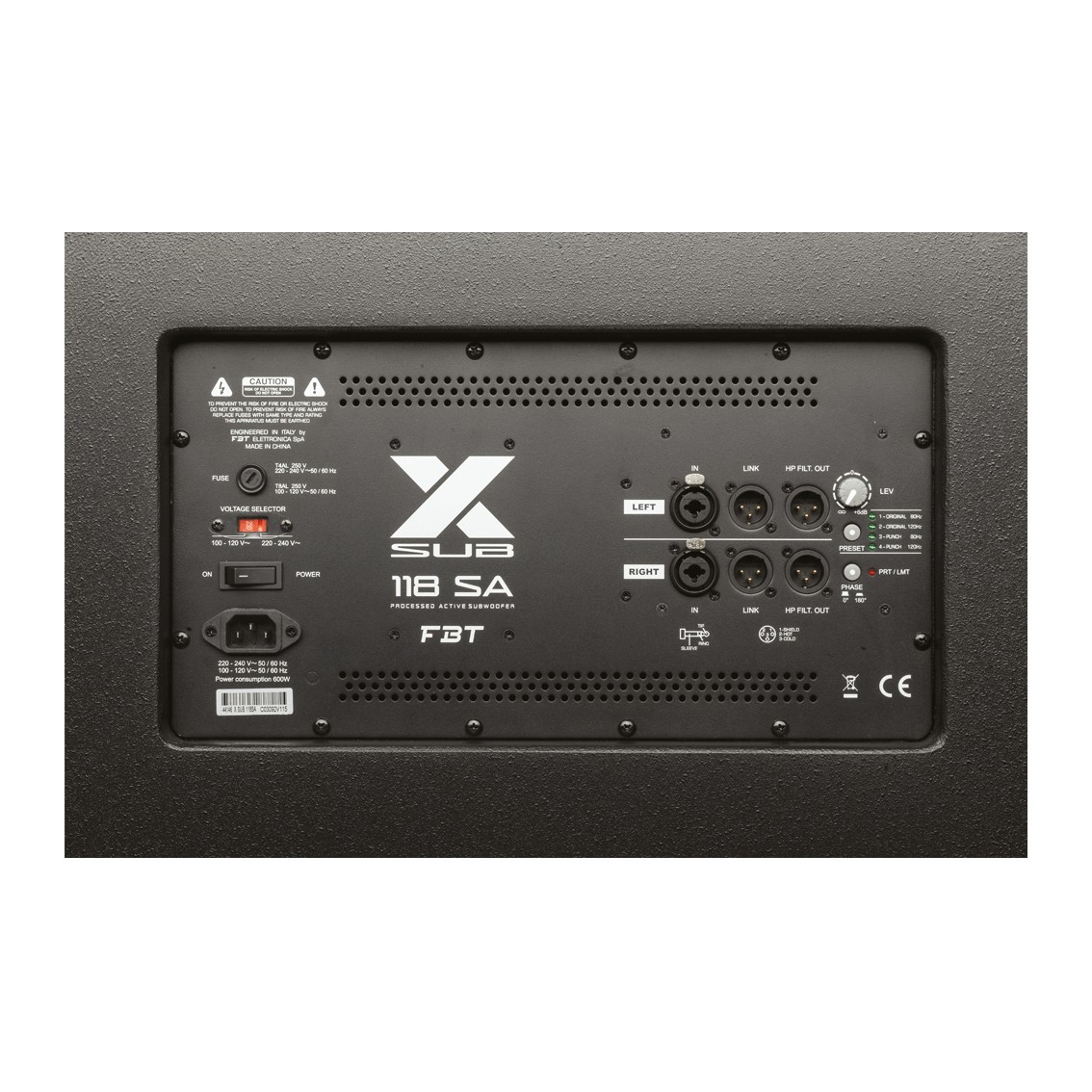

The built-in DSP includes 4 presets (2 responses with 2 different cut-off options), allowing flexibility for different system configurations. The control panel features stereo combo XLR/Jack inputs and outputs, stereo XLR HP filter outputs, level control, preset selector, phase reverse switch (0?/180?), and protection/limit LEDs.

Constructed from 15 mm birch plywood with a scratch-resistant black finish, X SUB 115SA includes M20 top-mounted stand adapter, two ergonomic aluminum handles, and optional 100 mm transport wheels. Suitable for fixed installations, live events, and touring.

====================

Technical Specifications
Code:
44146

Configuration:
bass reflex

Built-in amplifier LF/HF:
1200W

Built-in amplifier peak LF/HF:
—

Frequency response:
38Hz – 120Hz -6dB

Low Frequency woofer:
18 inch / 3 inch coil

Maximum SPL cont/peak:
136dB half space

Dispersion:
Omnidirectional

Input impedance:
22 kOhm

Crossover Frequency:
—

AC Power requirements:
600W

Input connector:
XLR with loop

Power cord:
5m / 16.4 ft

Net Dimension (WxHxD):
510 x 655 x 630 mm / 20 x 25.7 x 24.8 inch

Net Weight:
39.8 kg / 87.7 lb

Transport Dimension (WxHxD):
785 x 815 x 685 mm / 30.9 x 32.1 x 26.9 inch

Transport Weight:
47.5 Kg / 104.7 lb
