FBT SUBline 118S 18-Inch Passive Subwoofer, 1200W

Deskripsi Produk

SUBLINE 118S – PASSIVE SUBWOOFER 18 INCH

The SUBline 118S is a high-performance passive subwoofer designed for professional applications where deep bass output is required from a portable, road-ready enclosure. It features an 18 inch high-excursion woofer with a 3 inch voice coil, delivering exceptional low frequencies with precision and authority down to 33 Hz.

Constructed from robust birch plywood with a scratch-resistant paint finish, this subwoofer includes ergonomic carrying handles and an M20 top mount for pole installation. It perfectly complements FBT?s portable full-range speakers, providing unmatched low-end reinforcement for demanding live sound or installation environments.

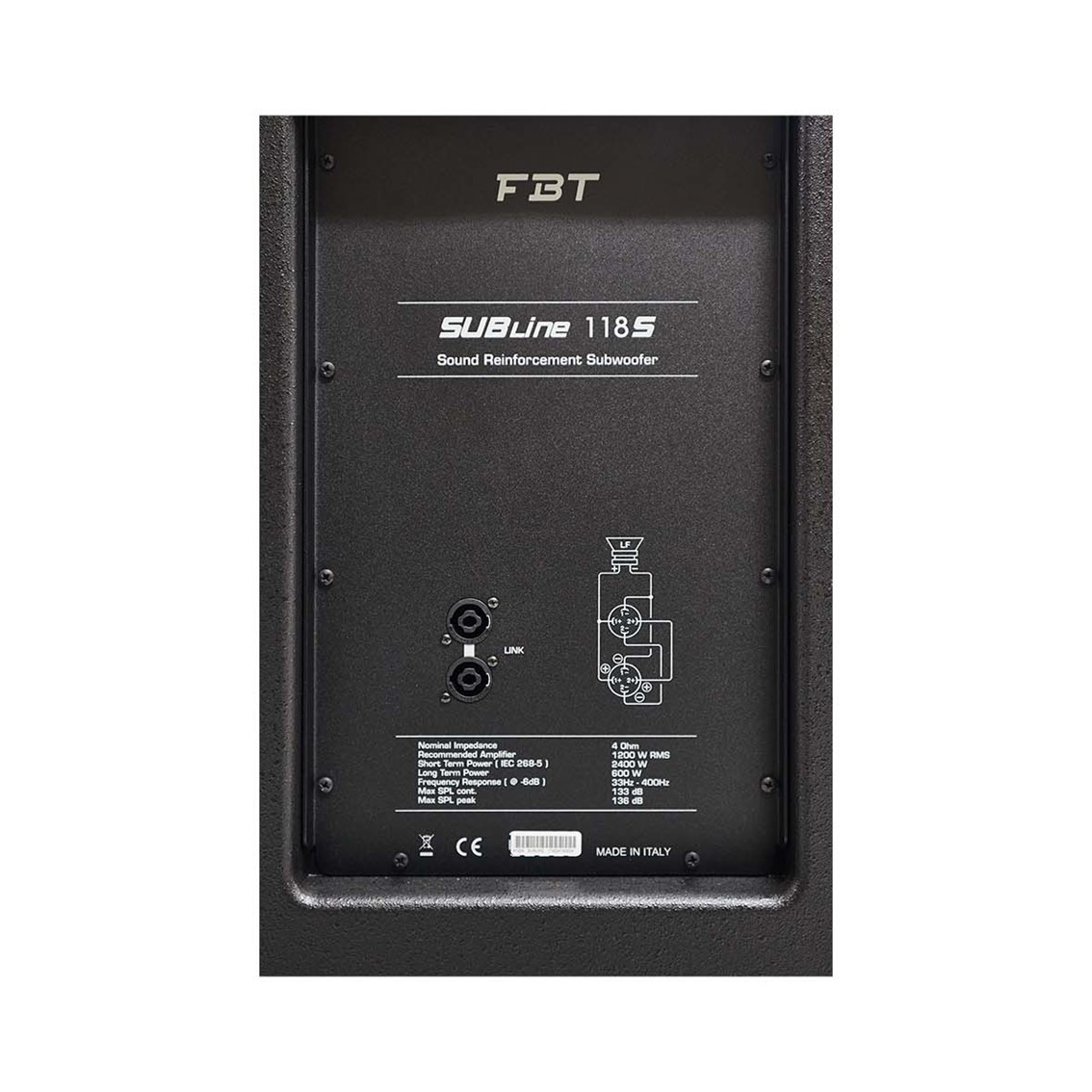

The SUBline 118S is equipped with integrated Speakon NL4 IN & LINK connectors for secure signal connection and is optimized for use with an external processor (such as the DLM26) to ensure precise crossover management and system alignment.

====================

Technical Specifications
Code:
41224

Configuration:
1 way reflex

Recommended amplifier:
1200W RMS

Long Term power:
600W

Short term power:
2400W

Nominal impedance:
4 Ohm

Frequency response:
33Hz – 400Hz -6dB

Low Frequency woofer:
18 inch – 3 inch coil

Maximum SPL cont/peak:
133 / 136dB half-space

Dispersion:
Omnidirectional

Crossover Frequency:
—

Input connector:
2 x Neutrik Speakon

Net Dimension (WxHxD):
555 x 572 x 666 mm / 21.8 x 25.3 x 26.2 inch

Net Weight:
37.1 Kg / 81.7 lb

Transport Dimension (WxHxD):
800 x 790 x 600 mm / 31.5 x 31.1 x 23.6 inch

Transport Weight:
47 Kg / 103.6 lb
