FBT Shadow 112CT 2-Way Coaxial Horn Loaded Full Range Speaker, 300W @ 8 Ohms or 100V Line – IP55

Deskripsi Produk

SHADOW 112CT – PASSIVE POINT SOURCE 12 INCH

Shadow 112CT is a high-performance, weatherproof 2-way coaxial loudspeaker designed for outdoor installations where full-range audio reproduction, high output, and environmental resistance are essential. Rated IP55, it withstands prolonged exposure to humidity, UV, and temperature extremes. Ideal for sports facilities, theme parks and multi-purpose venues.

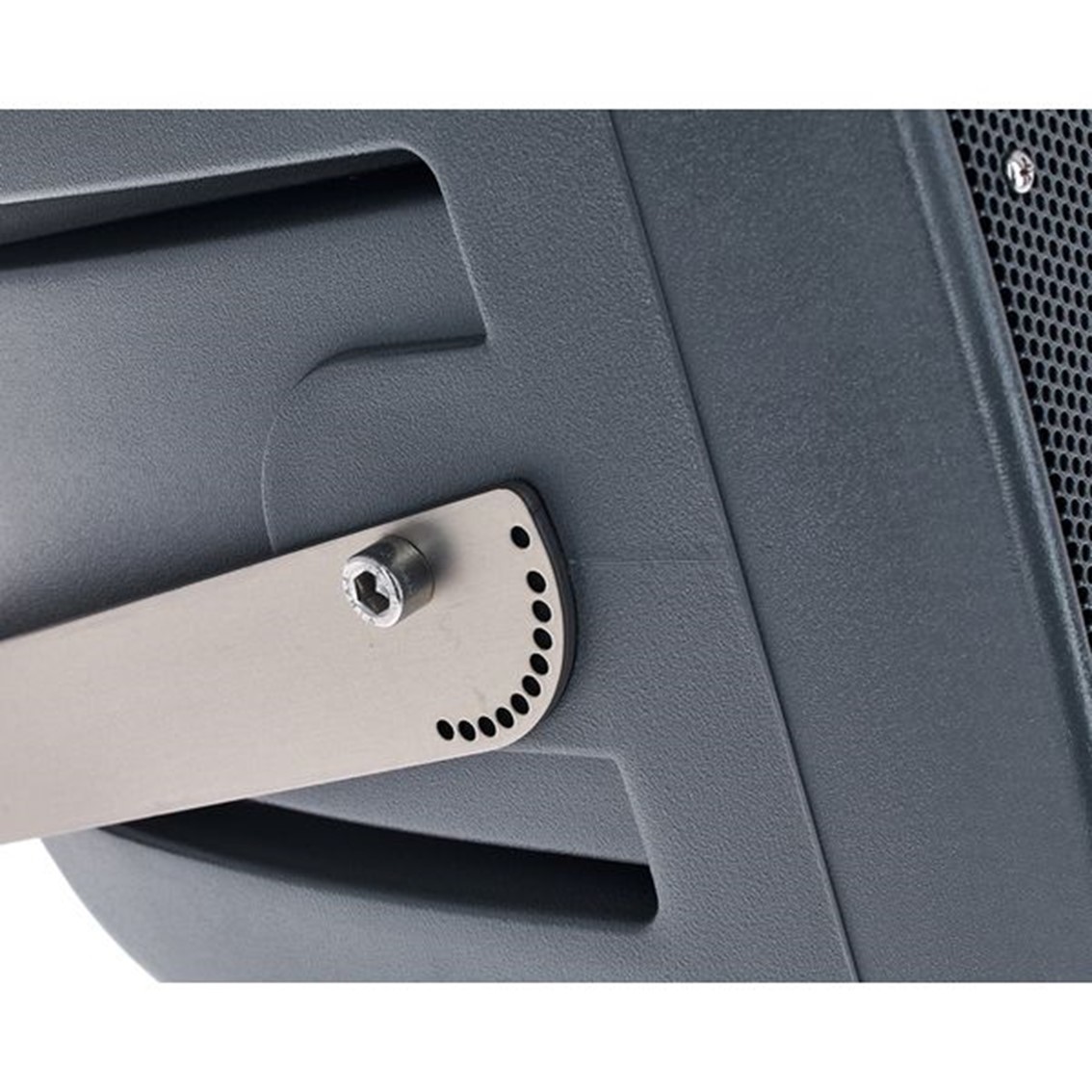

The system features a 12 inch coaxial woofer with a 2.5 inch voice coil and a 1 inch HF driver with a 1.7 inch coil mounted on a 90? conical waveguide. A built-in 100V line transformer offers 200W and 100W power taps selectable via 4-wire cable. The enclosure is rotational-molded polyethylene with a a stainless-steel water-stop grille and steel U-bracket for adjustable wall installation.

Delivering up to 128 dB SPL, Shadow 112CT combines rugged construction with clear, high-impact sound?ideal for medium-output distributed systems.

======================

Technical Specifications
Code:
36194

Configuration:
2 way

Recommended amplifier:
600 W RMS

Long Term power:
300 W

Short term power:
1200 W

Nominal impedance:
8 ohm

Frequency response:
70Hz – 20Khz -6dB

Low Frequency woofer:
12 – 2.5 coil inch

High frequency driver:
1 – 1.7 coil inch

Sensitivity (@1W/1m):
98 dB

Maximum SPL cont/peak:
124/128 dB

Dispersion:
90? conical HxV

Crossover Frequency:
1.6 KHz

Recommended HP filter:
50hz – 24dboct

Input connector:
4 wire cable

Net Dimension (WxHxD):
464 x 430 x 479 mm -/ 18.2 x 16.9 x 18.8 inch

Net Weight:
18.2 Kg / 40.1 lb
