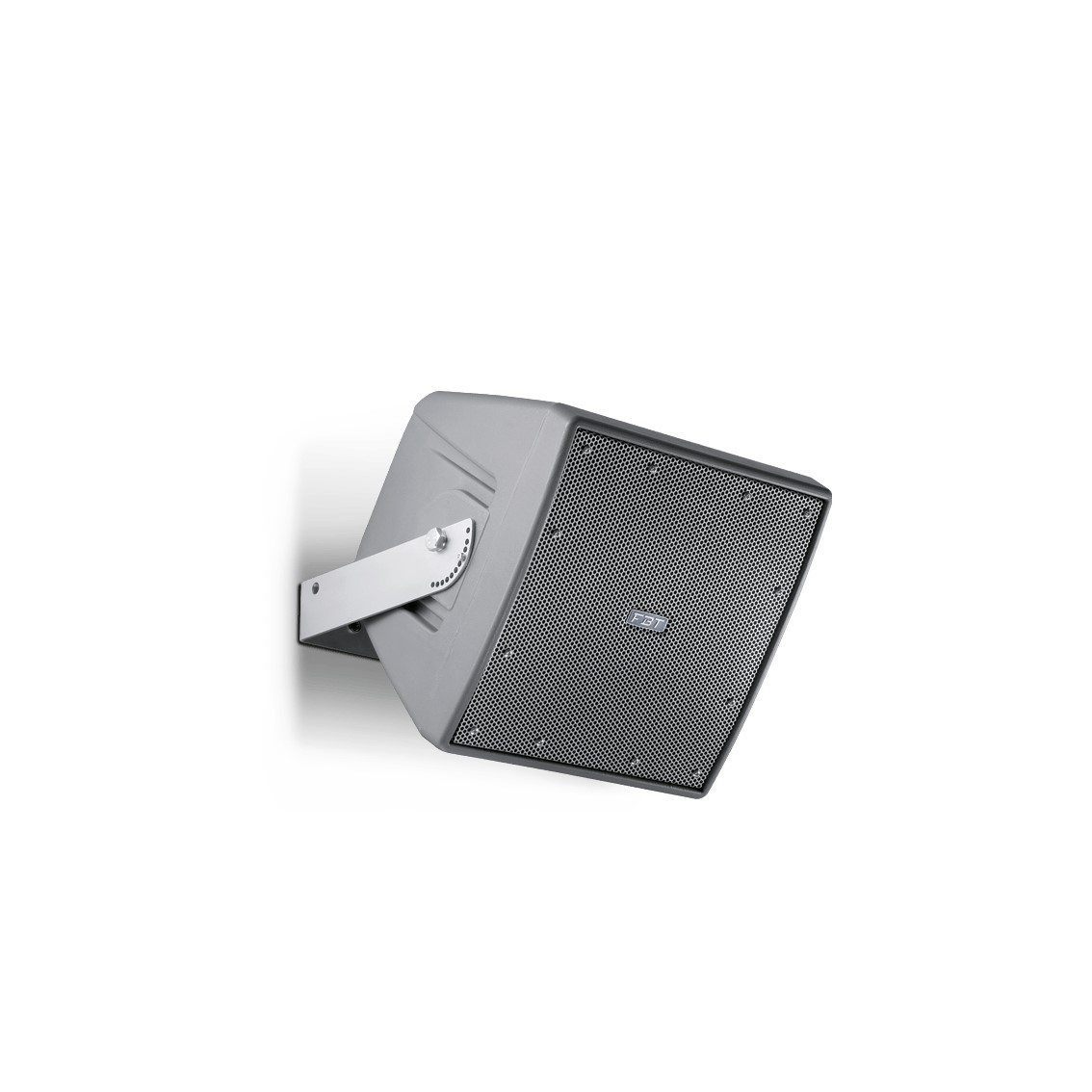

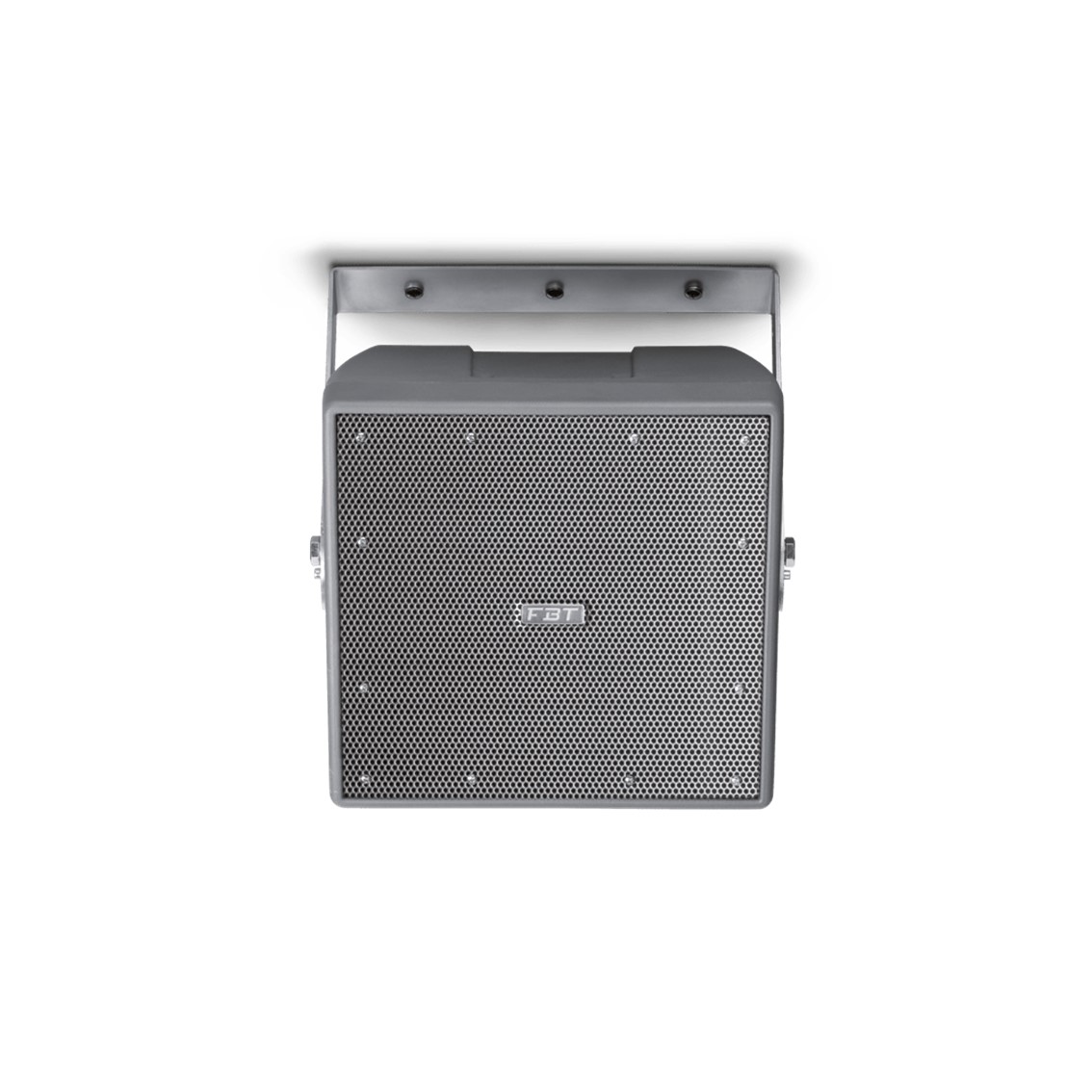

FBT Shadow 108CT 2-Way Coaxial Full Range Speaker, 225W @ 8 Ohms or 100V Line – IP55

Deskripsi Produk

SHADOW 108CT – PASSIVE POINT SOURCE 8 INCH

Shadow 108CT is a weather-resistant coaxial 2-way speaker system designed for outdoor and humid environments where high speech intelligibility, wide coverage, and rugged construction are essential. With an IP55 rating and curved molded polyethylene enclosure, it is ideal for amusement parks, swimming pools and multi-purpose indoor/outdoor venues.

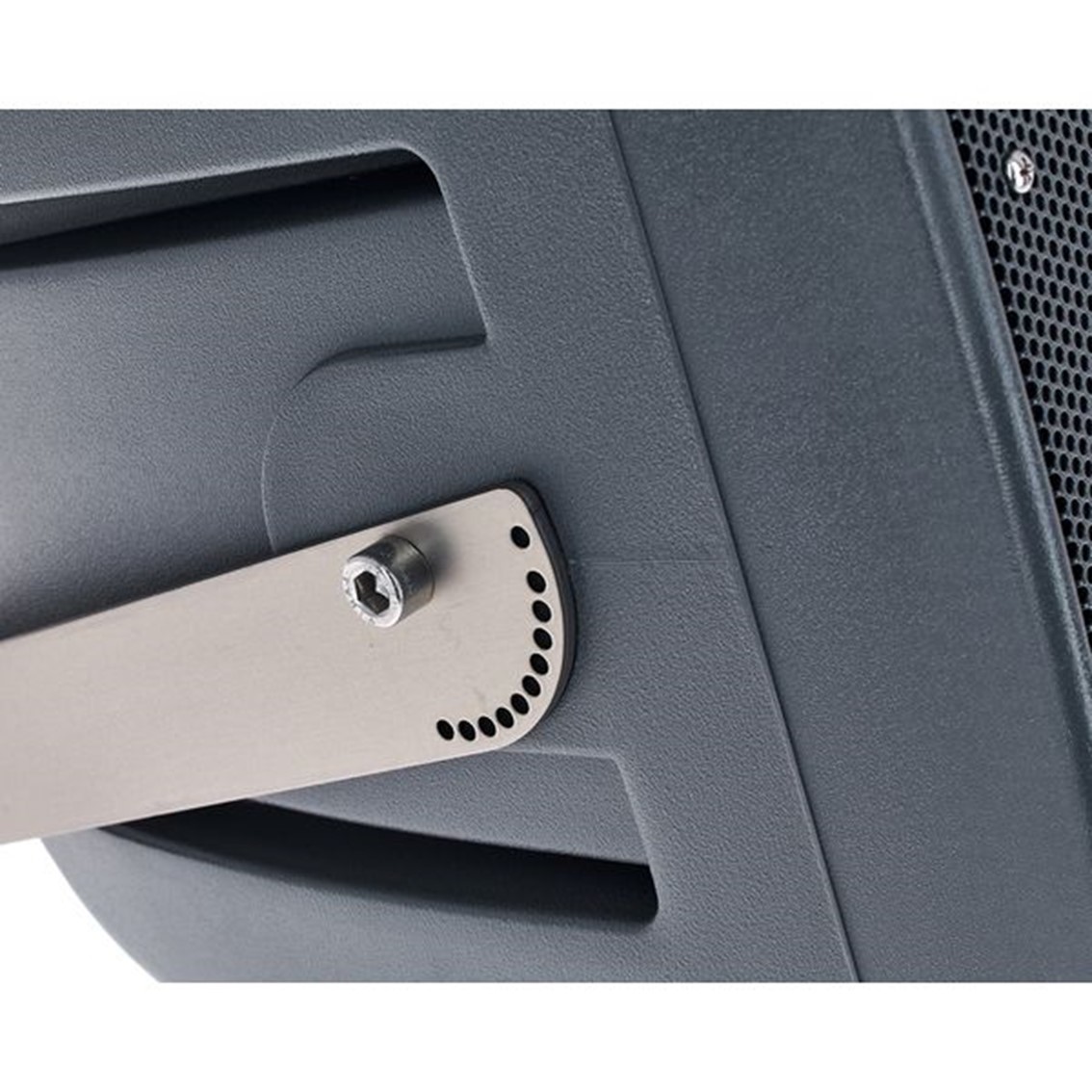

It features an 8 inch coaxial woofer with 2 inch voice coil and a 1 inch HF driver with 1.4 inch voice coil mounted on a 90? conical horn, ensuring consistent dispersion. The integrated 100V line transformer offers selectable 100W and 50W taps. A 4-wire input cable allows for power selection, while the three-layer water-stop stainless steel grille and included stainless steel U bracket ensure safe, long-term installation.

With a frequency response from 80 Hz to 20 kHz, continuous SPL of 120 dB, and peak SPL of 124 dB, the Shadow 108CT ensures clarity and output across a broad range of outdoor applications.

====================

Technical Specifications
Code:
36193

Configuration:
2 way

Recommended amplifier:
450 W RMS

Long Term power:
225 W

Short term power:
900 W

Nominal impedance:
8 ohm

Frequency response:
80Hz – 20KHz -6dB

Low Frequency woofer:
8 – 2 coil inch

High frequency driver:
1 – 1.4 coil inch

Sensitivity (@1W/1m):
95 dB

Maximum SPL cont/peak:
120/124 dB

Dispersion:
90? conical HxV

Crossover Frequency:
1.8 KHz

Recommended HP filter:
60hz – 24dboct

Input connector:
4 wire cable

Net Dimension (WxHxD):
317 x 285 x 316 mm / 12.4 x 11.2 x 12.4 inch

Net Weight:
10.5 Kg / 23.1 lb
