FBT Shadow 105T 2-Way Coaxial Full Range Speaker, 60W @ 8 Ohms or 100V Line – IP55

Deskripsi Produk

SHADOW 105T PASSIVE POINT SOURCE 5 INCH

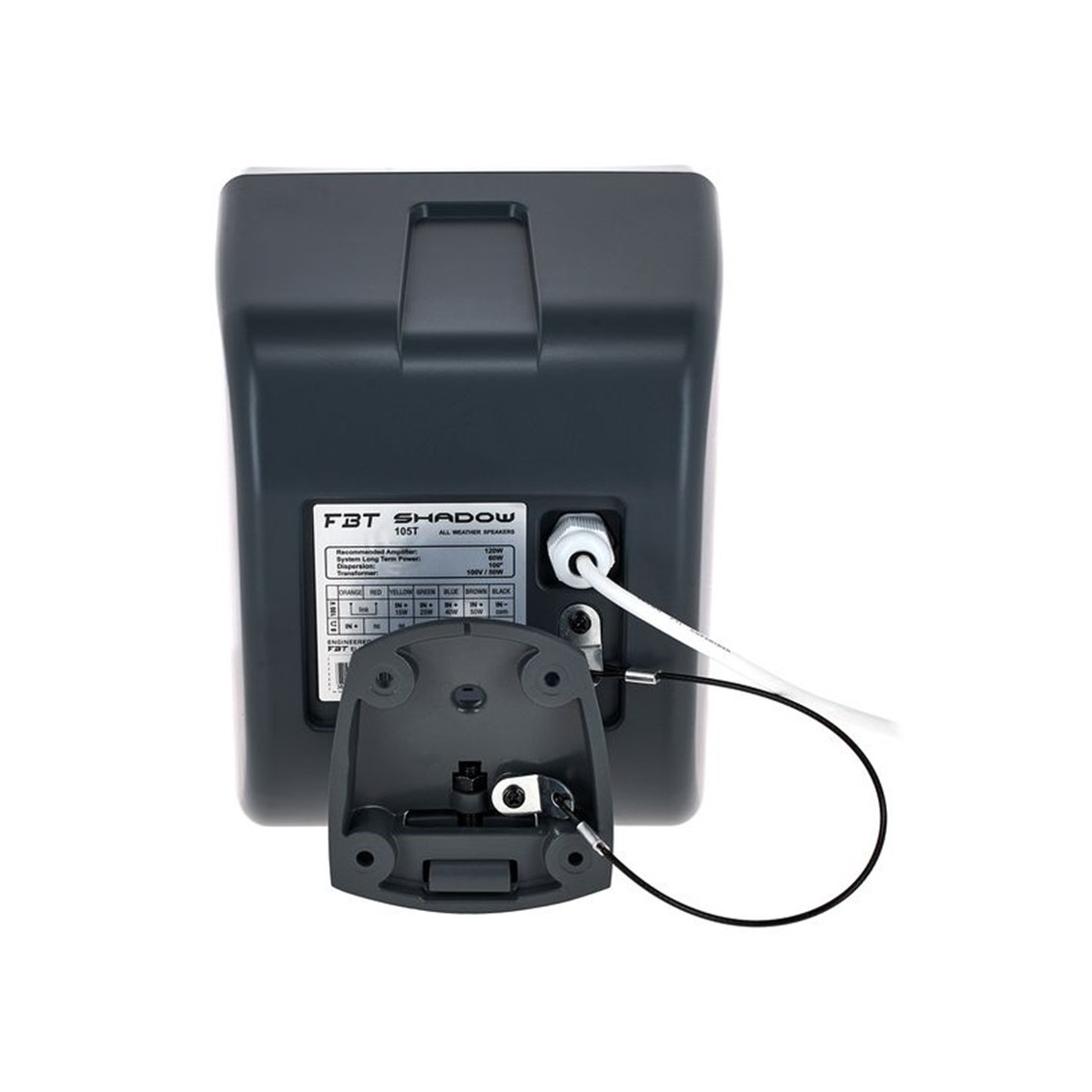

Shadow 105T is a compact weather-resistant 2-way speaker system, engineered for high-quality voice and background music in outdoor environments. Its design meets IP55 standards, making it ideal for amusement parks, swimming pools, cruise ships, and multi-purpose indoor/outdoor venues. It features a 5 inch woofer with 1 inch voice coil and a 1 inch dome tweeter, enclosed in a UV-resistant ABS cabinet. A 100V line transformer with selectable 50/40/25/15W taps is integrated, with a 4-wire input cable for power selection. The included die-cast aluminum wall bracket with ball-socket and safety cable allows secure multi-angle mounting.

With a frequency response of 90 Hz ? 20 kHz, continuous SPL of 109 dB and peak SPL of 112 dB, Shadow 105T delivers clarity and coverage even in acoustically challenging open-air locations.

====================

Technical Specifications
Code:
36192

Configuration:
2 way

Recommended amplifier:
120 W RMS

Long Term power:
60 W

Short term power:
240 W

Nominal impedance:
8 ohm

Frequency response:
90Hz – 20KHz -6dB

Low Frequency woofer:
5 – 1 coil inch

High frequency driver:
1 – dome inch

Sensitivity (@1W/1m):
89 dB

Maximum SPL cont/peak:
109/112 dB

Dispersion:
100? HxV

Crossover Frequency:
3 KHz

Recommended HP filter:
70hz – 24dboct

Input connector:
4 wire cable

Net Dimension (WxHxD):
168 x 222 x 200 mm / 6.6 x 8.7 x 7.8 inch

Net Weight:
3.1 Kg / 6.8 lb
