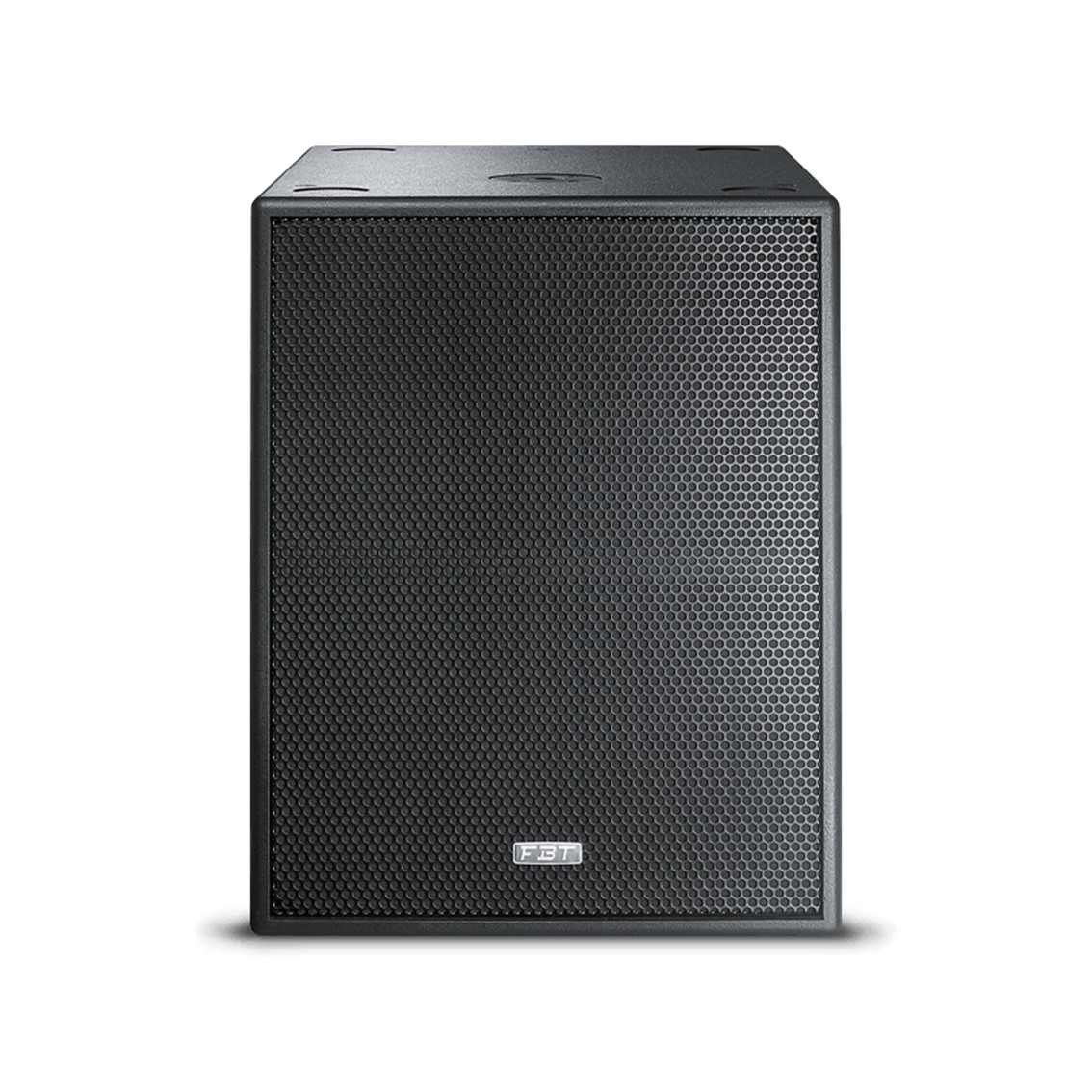

FBT Q 118SA – 2400W 18-inch Powered Bass Reflex Subwoofer with 4-inch Voice Coil in Black Finish

Deskripsi Produk

Q 118SA – ACTIVE SUBWOOFER 18 INCH

This high-performance subwoofer features a robust 18 inch woofer with a 4 inch voice coil, driven by a powerful 1200W RMS Class D amplifier and an efficient switch-mode power supply for consistent output. The integrated DSP offers maximum versatility through 6 tailored presets and a 6-step digital Delay for precise system alignment.

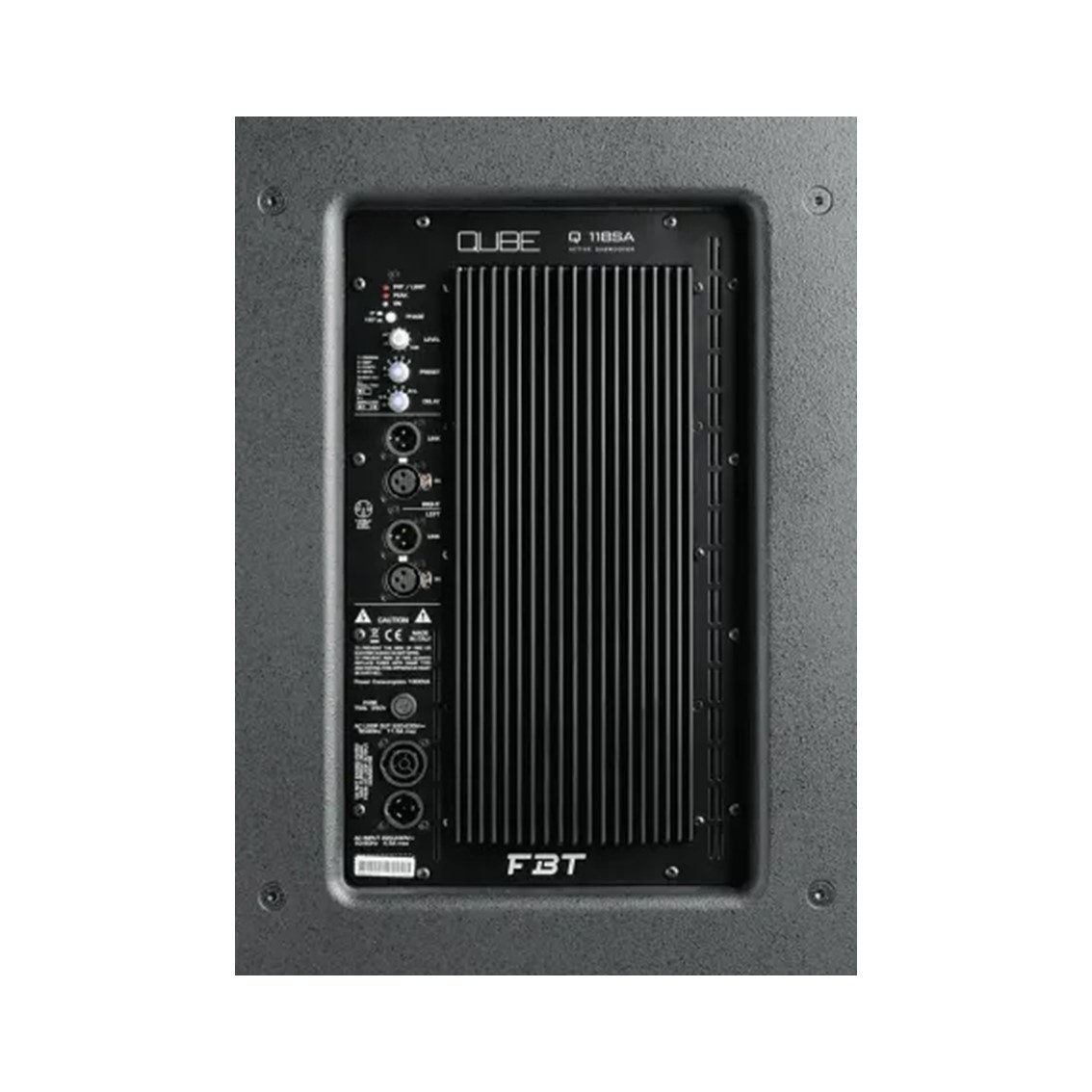

The comprehensive control panel includes three status LED indicators, controls for Phase, Level, and Preset/Delay, along with stereo XLR input and link connections. Power management is streamlined via powerCON TRUE1 duplex connectivity, allowing for easy daisy-chaining.

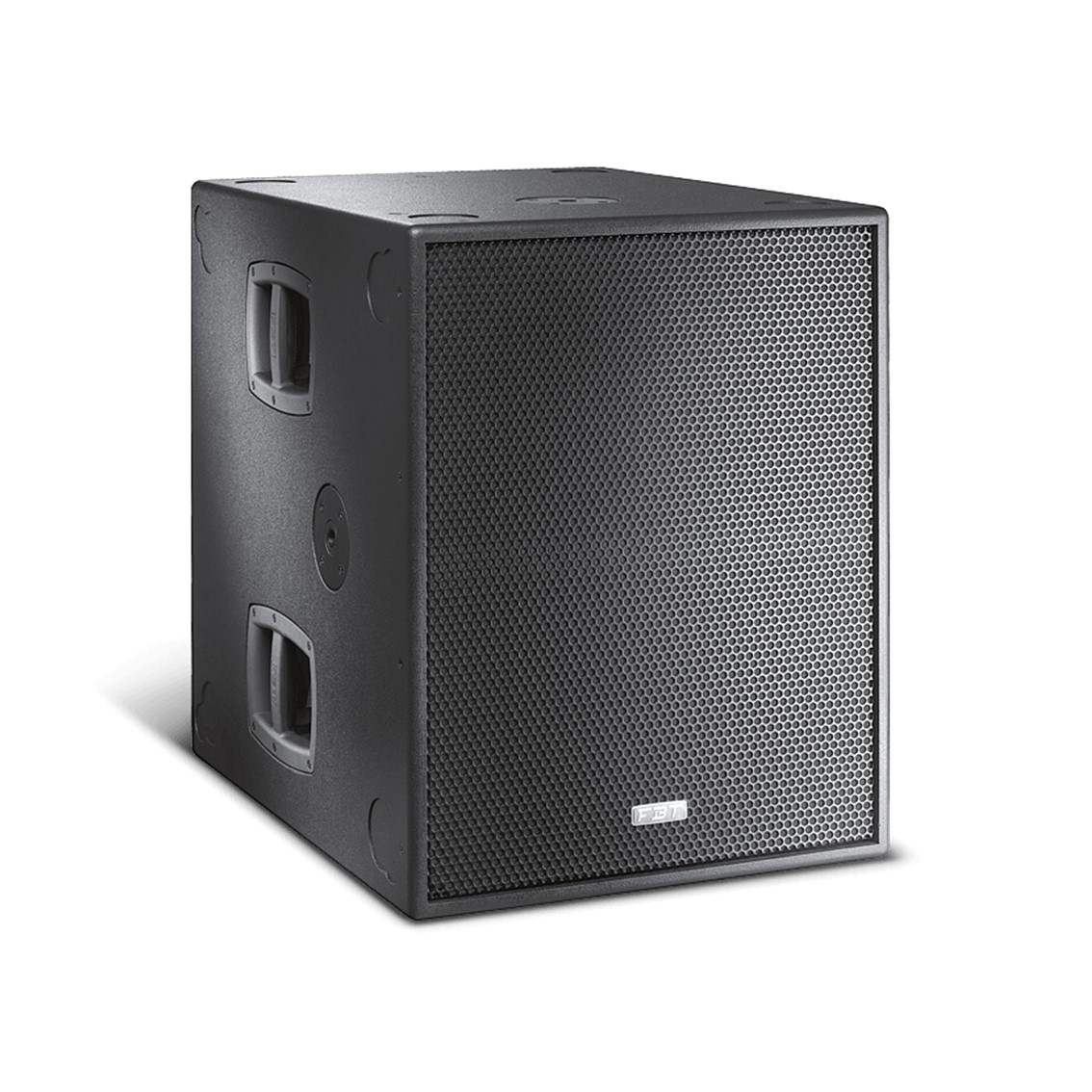

Built for the rigors of the road, the 0.70 inch Baltic birch plywood cabinet is finished in a scratch and scuff-resistant paint. For flexible installation and transport, the unit is equipped with two M20 top-mount speaker sockets, four ergonomic aluminum handles, and provides the option for rear-mounted wheels.

====================

Technical Specifications
Code:
39893

Configuration:
1 BASS REFLEX

Built-in amplifier LF/HF:
1200 W RMS

Built-in amplifier peak LF/HF:
2400 W

Frequency response:
30Hz – 100Hz -6dB

Low Frequency woofer:
18 inch – 4 inch cvc

Maximum SPL cont/peak:
135/139 half-space dB

Dispersion:
omnidirectional

Input impedance:
22 Kohm

Crossover Frequency:
preset dependant KHz

AC Power requirements:
1000 VA

Input connector:
XLR with loop

Power cord:
5 m/ft

Net Dimension (WxHxD):
555 x 705 x 720 mm / 21.85 x 27.76 x 28.35 inch

Net Weight:
58.50 Kg / 128.97 Lb

Transport Dimension (WxHxD):
810 x 875 x 710 mm / 31.89 x 34.45 x 27.95 inch

Transport Weight:
67 Kg / 147.71 Lb
