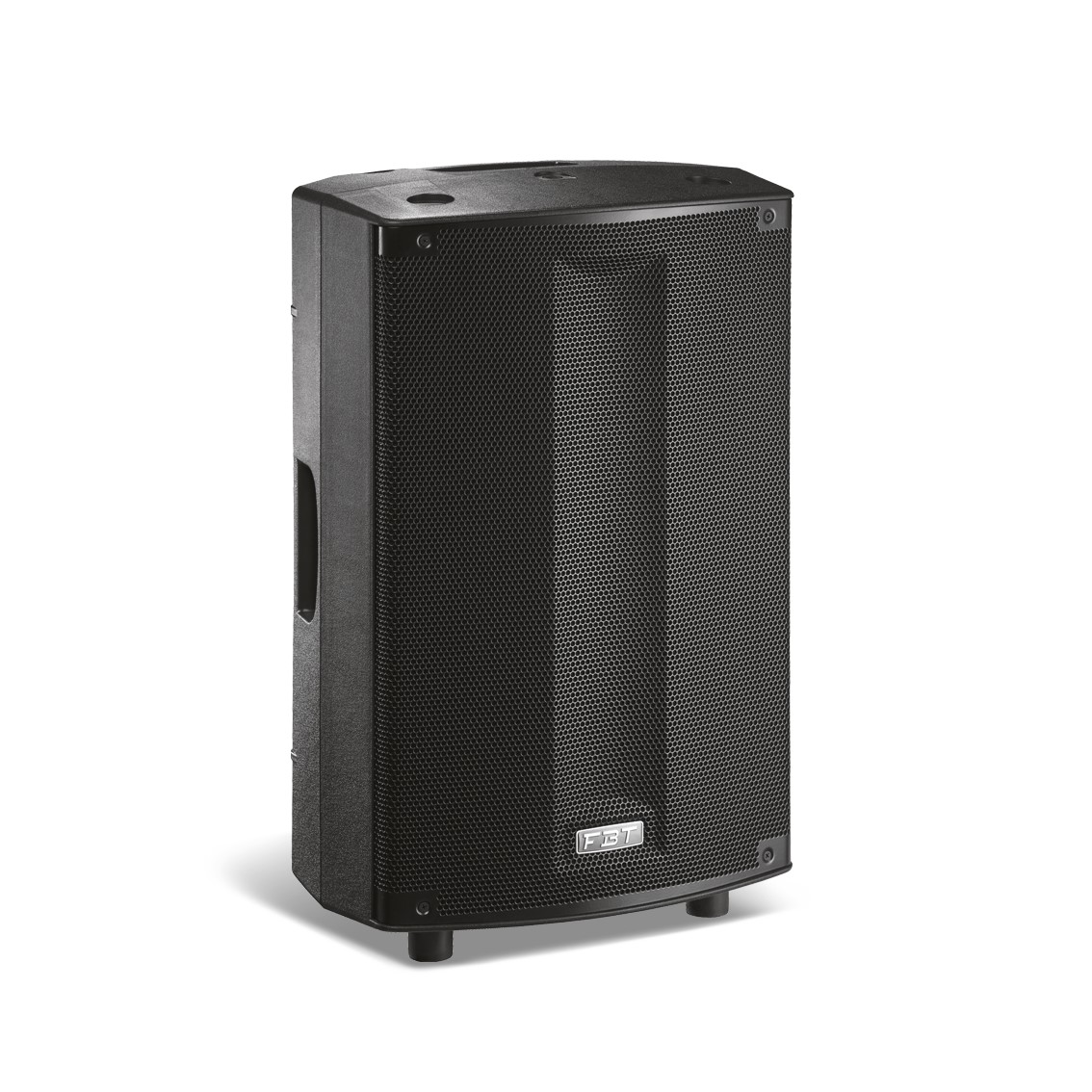

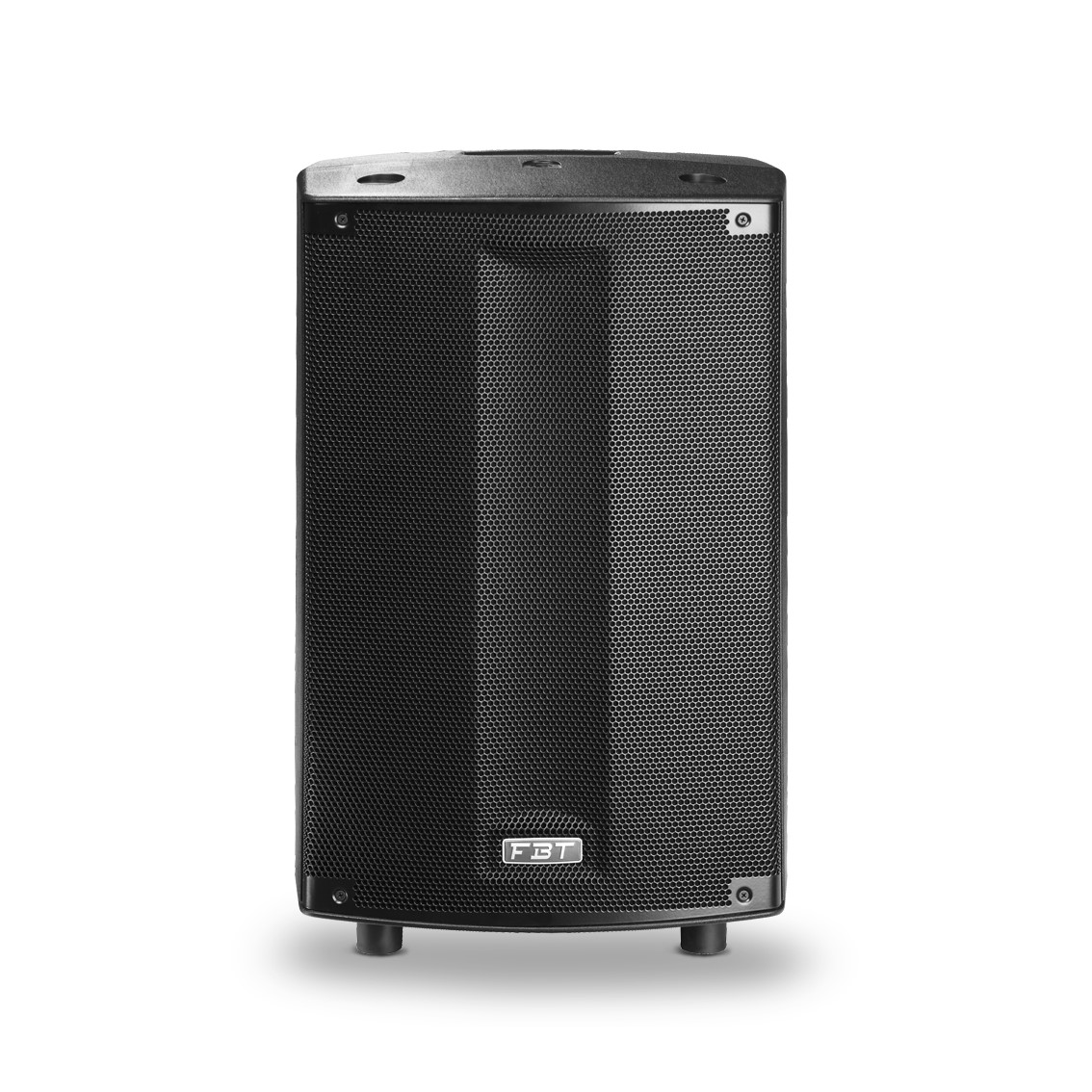

FBT PROMaxX 114A 14 inch Bi-Amplified Active Speaker, 900W

Deskripsi Produk

PROMAXX 114A – ACTIVE POINT SOURCE 14 INCH

The PROMAXX 114A is a high-performance, 2-way bi-amplified bass reflex loudspeaker designed to deliver exceptional audio quality. It features a 14 inch woofer and is powered by separate amplifiers: 700W RMS for the LF section via Class D, and 200W RMS for the HF section via Class H/AB, both equipped with switch-mode power supplies.A digital signal processor with a graphic display, rotary encoder, and push-button functionality allows for precise control and tuning of the system. The rear control panel includes a balanced XLR/Jack input, XLR LINK OUT, dual volume controls, RCA stereo input, and DSP interface.

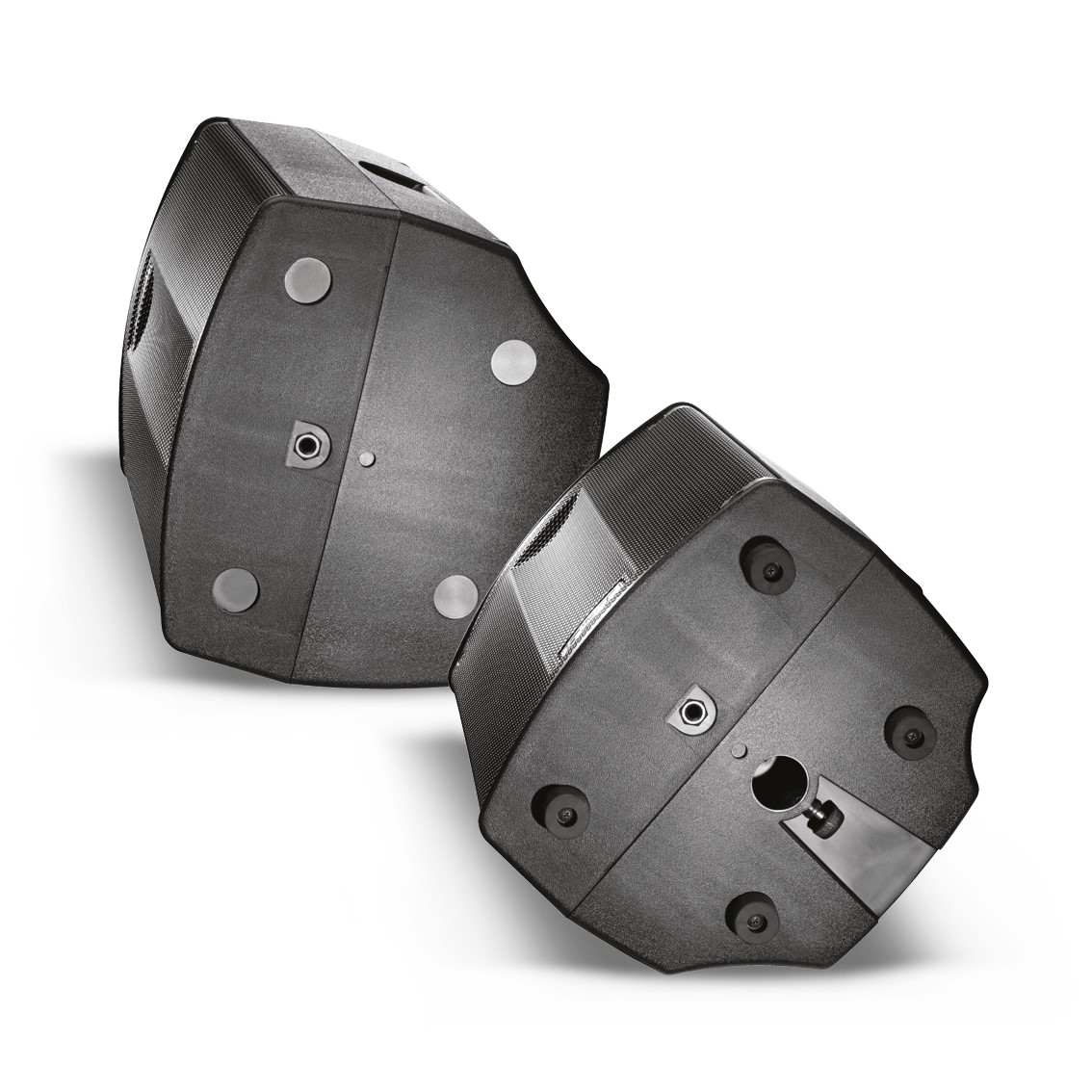

The PROMAXX 114A is equipped with two M10 suspension points, a 35 mm (1.38?) top-hat speaker stand socket, and a wall bracket flange plate, offering multiple mounting options for flexible installation. A 90?H x 60?V constant directivity horn ensures consistent coverage, while built-in monitor angles of 12?, 40?, and 55? make it equally effective as a front-of-house speaker or floor monitor.The DSP menu system, located on the rear panel, is navigated via a single rotary encoder with push-to-select functionality. Users can choose from 6 factory presets, with 2 additional user-defined slots available, each offering up to 5 parametric EQ bands. Additional features include a high-pass filter, mic/line switch, a low, medium, high EQ and an optional delay line of up to 10 meters.

Users can also choose between three limiter modes: MIN, NORMAL or MAX. Its comprehensive feature set is matched by its structural versatility, supporting pole mounting, wall installation or suspension.

====================

Technical Specifications
Code:
40603

Configuration:
2 way

Built-in amplifier LF/HF:
700 / 200 W RMS

Frequency response:
45Hz-20KHz -6dB

Low frequency woofer:
14 inch – 3 inch coil

High Frequency driver:
1.4 inch – 2.5 inch coil

Maximum SPL cont/peak:
127.5 / 135.5dB

Dispersion:
90? x 60? HxV

Input impedance:
22 Kohm

Input connector:
XLR combo, XLR M, RCA ST

Power cord:
5 m / 16.4 ft

Net Dimension (WxHxD):
402 x 644 x345 mm / 15.8 x 25.4 x 13.6 inch

Net Weight:
18.8 Kg / 41.4 lb

Transport Dimension (WxHxD):
500 x 750 x 435 mm / 19.7 x 29.5 x 17.1 inch

Transport Weight:
21.5 Kg / 47.3 lb
