FBT Mitus 152A Processed Active Speaker, 1350W

Deskripsi Produk

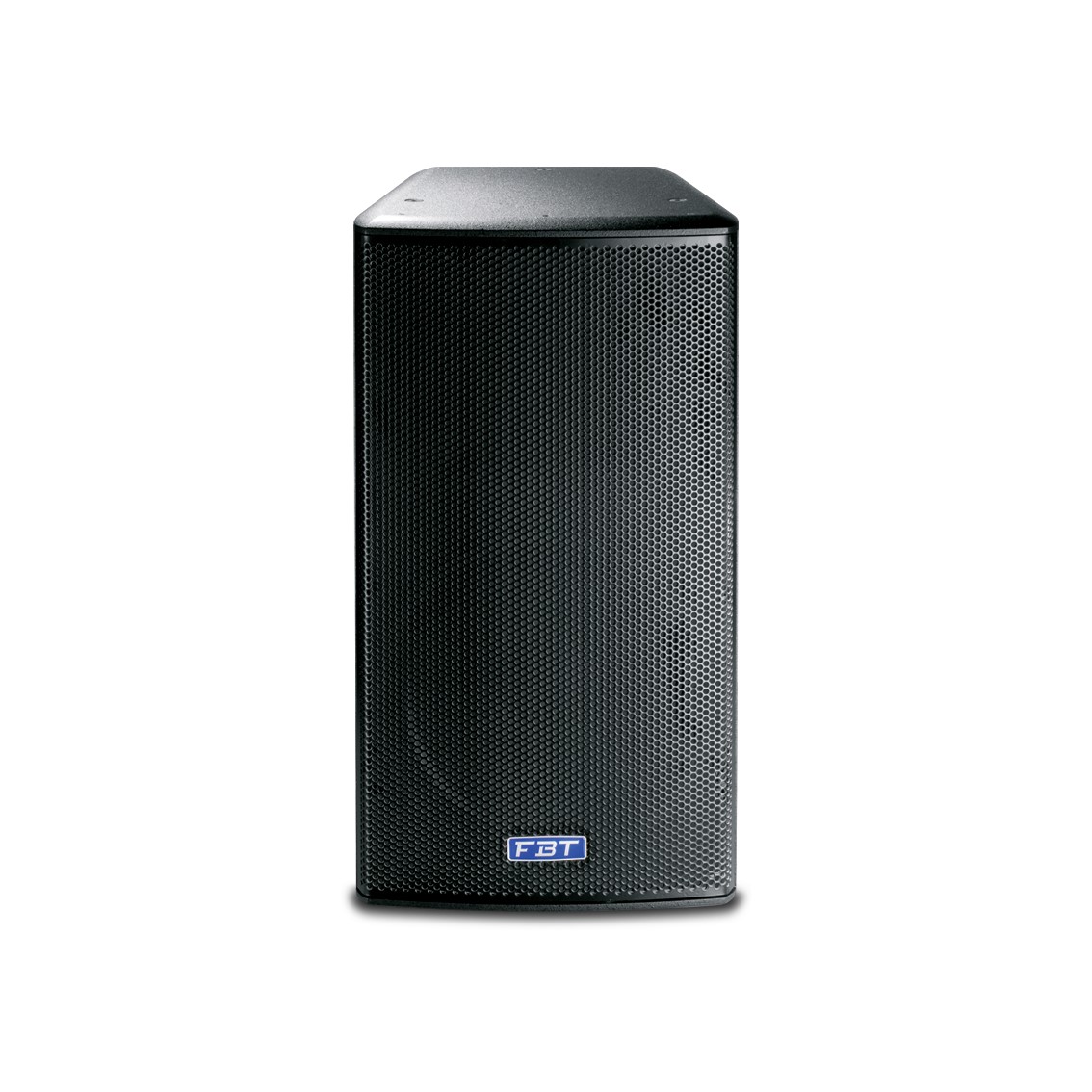

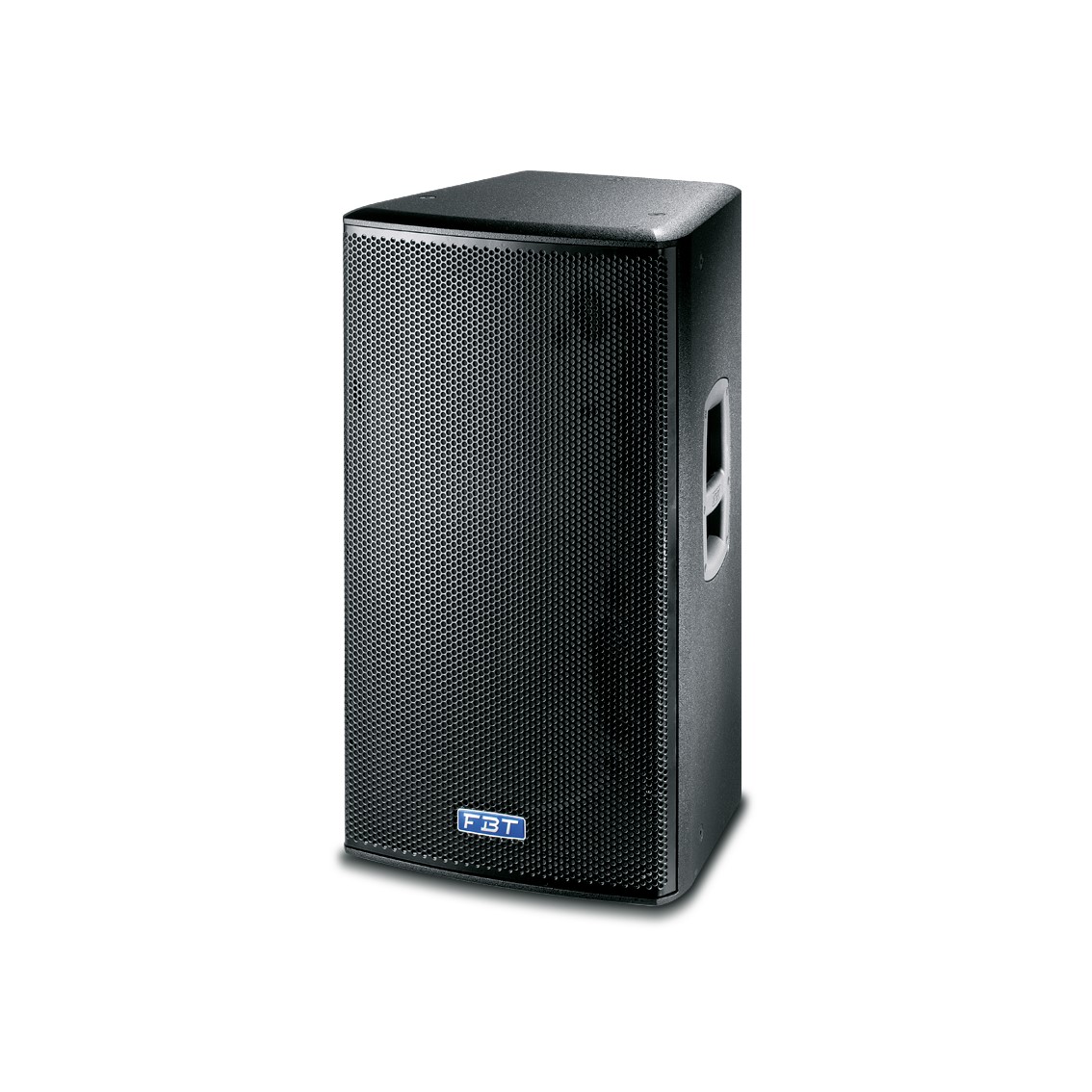

MITUS 152A – ACTIVE POINT SOURCE 15 INCH

The Mitus 152A is a two-way, bi-amplified active loudspeaker designed for high-powered professional sound reinforcement. It features a 15 inch B&C neodymium woofer with a 3 inch voice coil and a 2 inch exit B&C compression driver with a 2.5 inch voice coil, coupled to a rotatable 60? x 40? HF horn for controlled directional coverage. Powered by built-in Class D amplification, the system delivers 1100W RMS to the low frequencies and 250W RMS Class G to the highs, supported by a switch-mode power supply.A built-in DSP provides 6 selectable EQ presets for adaptable system voicing. The frequency response ranges from 45 Hz to 20 kHz.

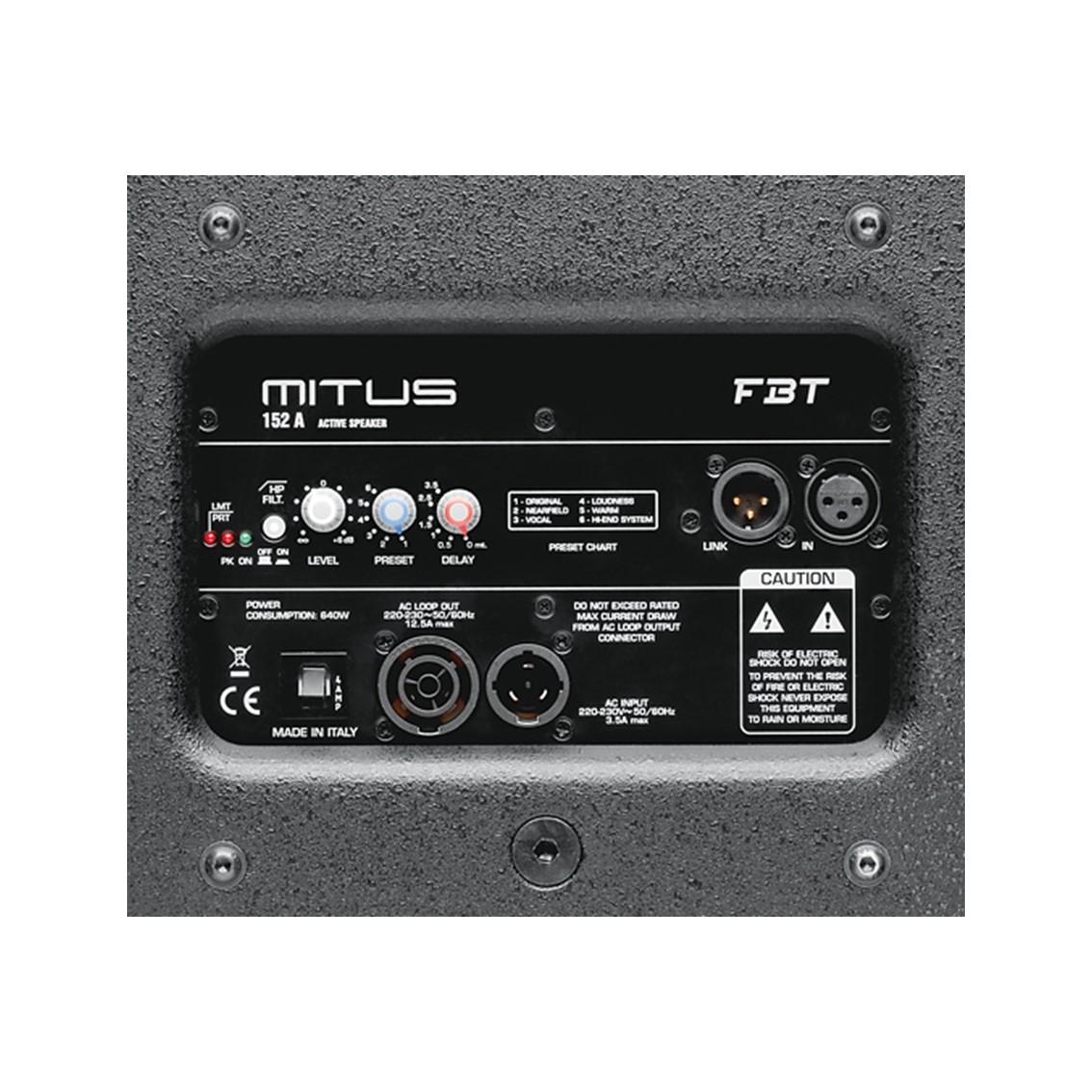

The rear control panel includes XLR input and link output, volume control, preset selector, high-pass filter, and ground-lift switch. The cabinet is constructed from 15 mm birch plywood with a scratch-resistant black paint finish, featuring twelve M10 rigging points, a 35 mm pole socket, and two ergonomic aluminum handles designed by FBT.With its powerful output, controlled dispersion, and rugged construction, the Mitus 152A is an ideal solution for front-of-house live sound and requiring robust SPL and high-definition sound.

====================

Technical Specifications
Code:
35959

Configuration:
2 way

Built-in amplifier LF/HF:
1100 / 250W RMS

Frequency response:
45Hz – 20Khz @-6dB

Low frequency woofer:
15 inch – 3 inch coil

High Frequency driver:
2 inch – 2.5 inch coil

Maximum SPL cont/peak:
129 / 136 dB

Dispersion:
60?x40? HxV

Input impedance:
22 Kohm

Input connector:
XLR with loop

Power cord:
5 m / 16.4 ft

Net Dimension (WxHxD):
425 x 805 x 421 mm / 16.7 x 31.7 x 16.6 inch

Net Weight:
36.6 Kg / 80.6 lb

Transport Dimension (WxHxD):
600 x 930 x 520 mm / 23.6 x 36.6 x 20.4 inch

Transport Weight:
40.5 Kg / 89.2 lb
