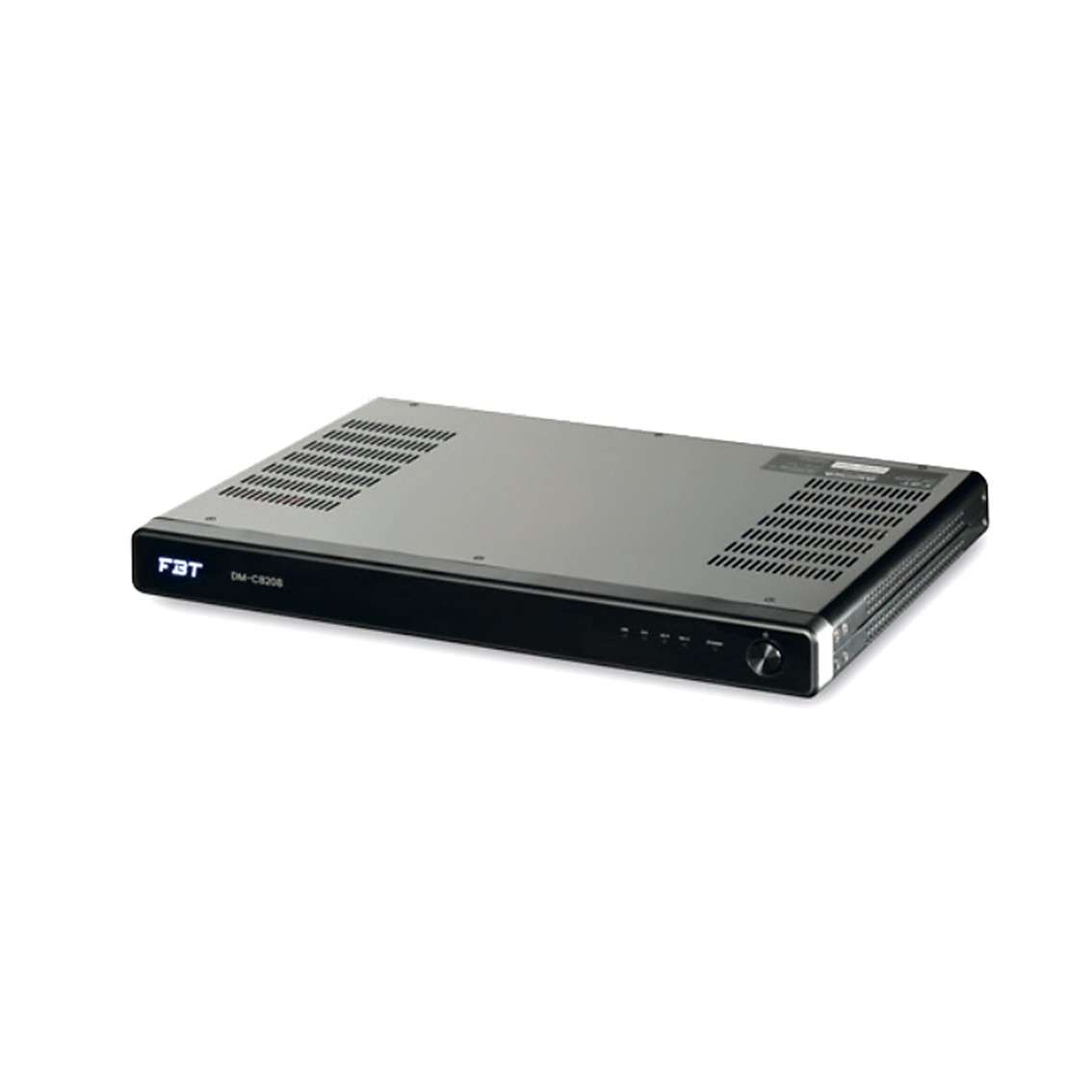

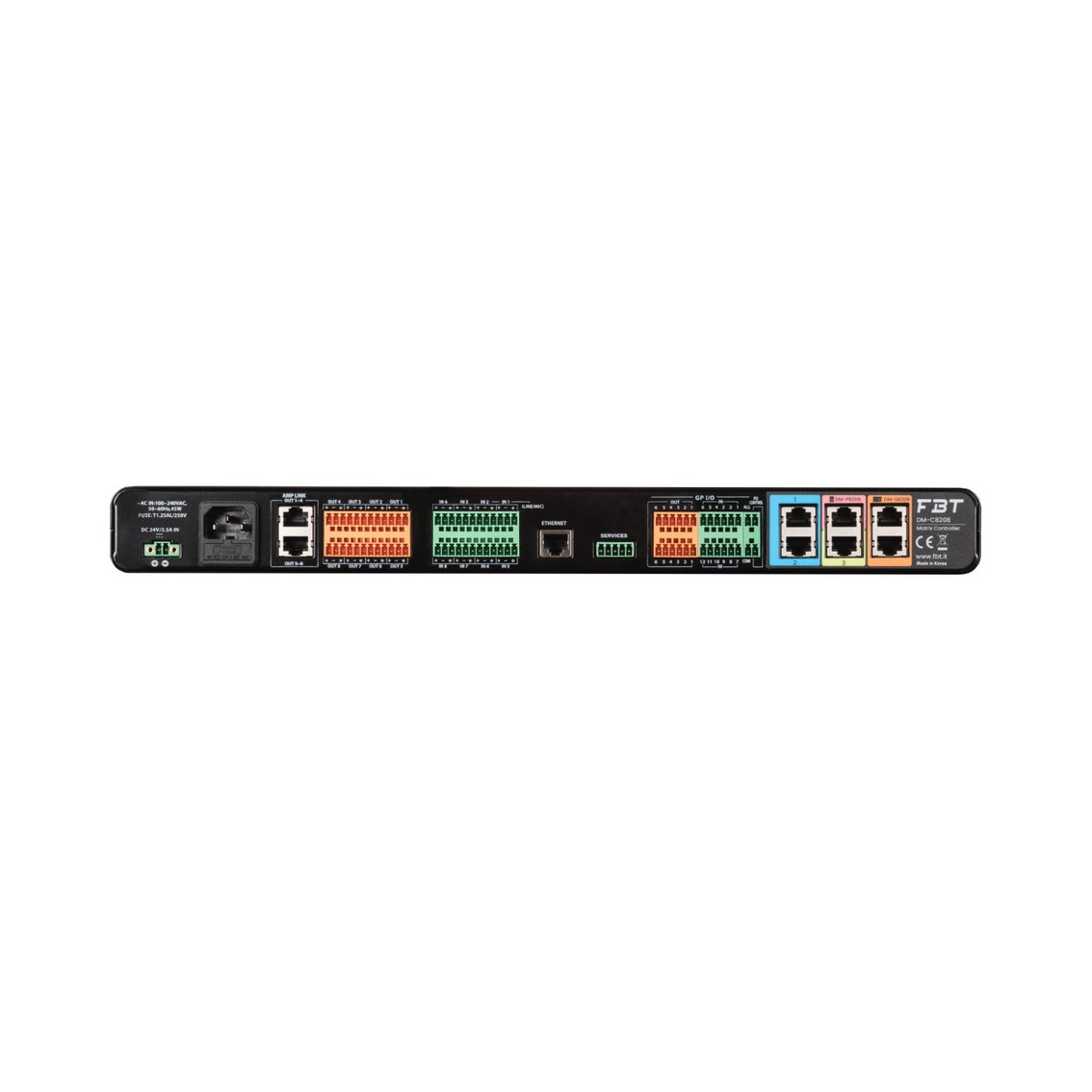

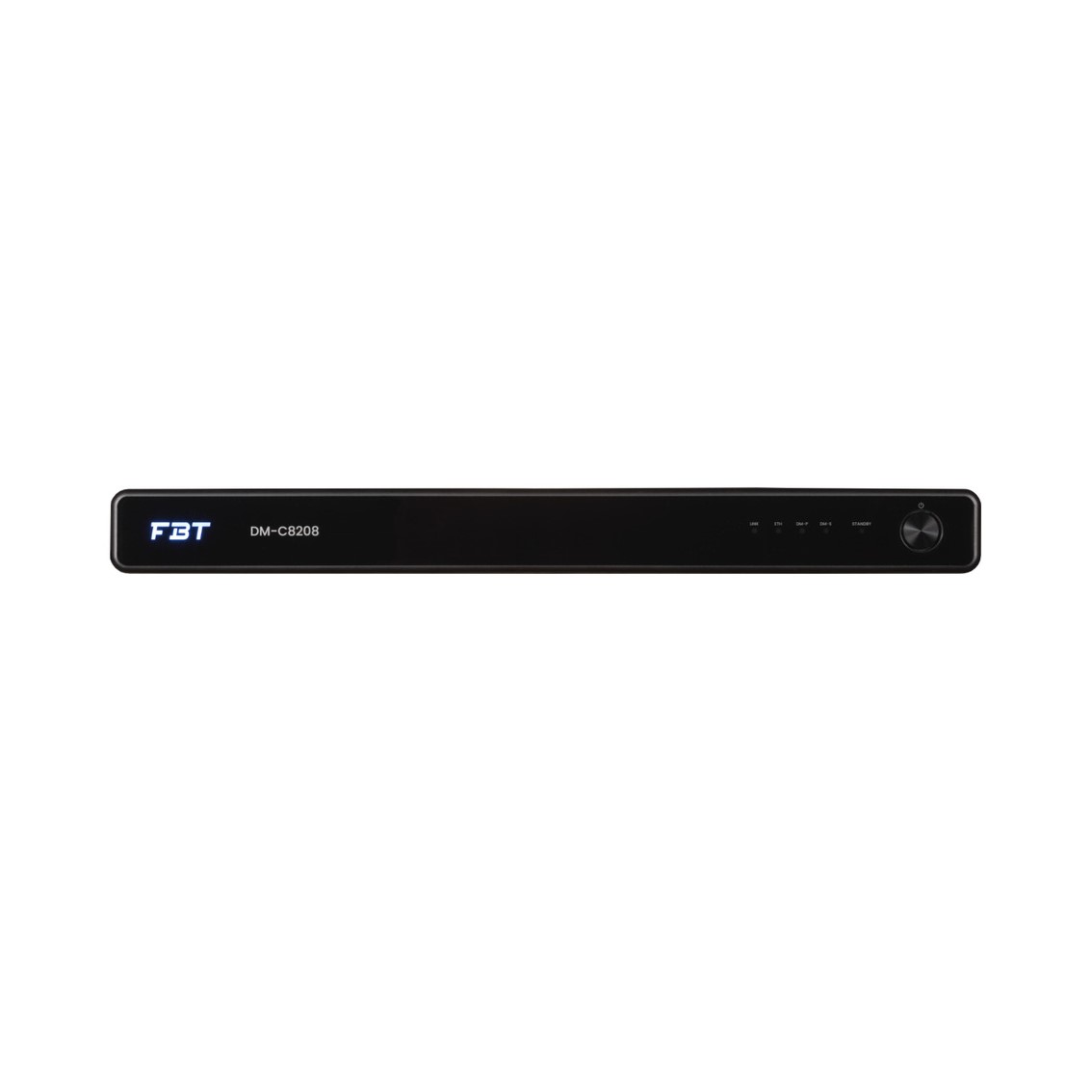

FBT DM-C8208 – 8-Input/8-Output Digital Matrix Controller with Mic/Line Inputs and TCP/IP Control Port in Black Finish

Deskripsi Produk

DM-C8208 – 8 IN 8 OUT DIGITAL MATRIX CONTROLLER

The DM-8208 Digital Matrix System is designed to be flexible, powerful and easy to configure, install and manage. With audio quality tailored for a wide range of applications including background/foreground and paging, the DM-8208 Digital Matrix System provides complete control over audio configuration and signal processing. Basic user controls such as volume and source selection within a zone can be easily operated via the wall-mounted DM-P8208 panel controller. More advanced users requiring multiple zone control can use the Graphical User Interface (GUI) for PC or smart devices. The DM-C8208 can be controlled via Ethernet for easy integration with a wide range of building management and control systems. With the DM-S8208 remote paging station, users can select parts of the desired zone or the entire area to broadcast live calls and local music sources.

FEATURES
Digital Matrix Controller
8 IN x 8 OUT channels digital audio matrix
8 balanced mic/line inputs and 8 balanced line outputs
Powerful DSP Processor for every channel
48V Phantom power for 8 inputs
Connection up to 8 Paging station DM-S8208
Connection up to 8 Wall Panels DM-P8208
8 channels audio link
12 x 6 General purpose I/O contacts.
Calendar format scheduler
Remote Control by GUI for PC and smart devices
TCP/IP control port
1 RU

=====================

Technical Specifications
–DSP
Signal processing /CPU
32-bit ARM CORTEX A9

–AUDIO SPECIFICATIONS
Frequency response
20Hz to 20kHz, +/-3dB

THD+Noise
<0.01% @ 1kHz Crosstalk >80dB @ 1kHz

–MIC/LINE INPUTS
Number of Inputs
8 balanced mic/line level

Connectors
3.5mm terminal blocks

Input Sensitivity
-10dBV (LINE)/-55dBV (MIC)

Maximum Input Level
+5.5dBV(+7.7dBu) at THD 0.1%

Phantom Power
+48VDC

–PAGING INPUTS
Number of Inputs 2
Connectors RJ45

–WALL PANEL
Number of Inputs 1
Connectors RJ45

–OUTPUTS
Number of Outputs
8 balanced line level

Connectors
3.5mm terminal blocks (available Audio Link conncection 2xRJ45)

Nominal Output Level
0dBV

Maximum Output Level
+16.5dBV(+18.7dBu)

–GENERAL PURPOSE I/O
Inputs
12 logic (configurable by GUI)

Outputs
6 logic

–INDICATORS
LEDs
Link/Ethernet/DM-P/DM-S/Stand-by

Power
Power ON / OFF Button

–CONTROL
Software
GUI for PC / App for iOS/Android

Ethernet
10/100/1000 Mbps, 1xRJ45

–CONTROL GENERAL
Power Supply
AC 100-240V, 50/60Hz or +24VDC

Operating Temperature
-10? to +40?

Storage Temperature
-20? to +60?

Cooling
Convectional with ventilation holes

Net Dimensions (WxHxD)
482 x 44 x 300.5mm

Mounting
Stand-alone, 19?rack

Net Weight
3.4 kg
