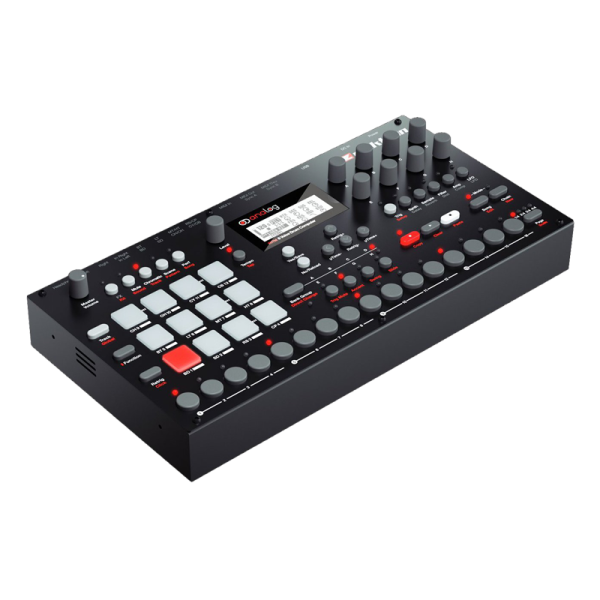

Elektron Analog Rytm

Eight voice analog drum machine
with sample support

True analog punch

What really sets the Analog Rytm apart is the analog sound. It has a magic character. The depth of the kick drums, the bite of the snare drums, those cavernous toms, the airy shimmer of the hihats. Fine-tune the sounds to your liking and get working.

Elevated by samples

For ultimate creative versatility you can layer samples on top of the analog drum sounds. Make the beats as smooth, as rough, as realistic or as fantastic as you’d like. The perfect unity of analog percussion and samples simply goes beyond.

Maximized playability

When you’ve got your drums ready, record them to the sequencer and play them back. Do it using the pads, or perform detailed programming on the sequencer steps. Really meticulous or totally spontaneous: it’s up to you.

Drum voice features (×8)

  • Fully analog signal path
  • 1 × specialized analog percussion sound generator
  • 1 × sample playback engine
  • 1 × analog overdrive circuit
  • 1 × 2-pole analog multi-mode filter
  • 1 × panning VCA pair
  • 1 × filter envelope
  • 1 × amp envelope
  • 2 × individual effect sends
  • 1 × assignable LFO
  • 1 × dedicated LFO fade envelope

Storage

  • 128 Projects ( Drive)
  • 128 Kits per Project
  • 128 Patterns per Project
  • 16 Songs per Project
  • 4096 Sounds ( Drive Sound Library)
  • 128 Sounds per Project
  • 127 samples per Project
  • 1 GB Drive sample storage
  • 127 factory samples

Send effects

  • Delay
  • Reverb

Master effects

  • Analog stereo distortion
  • Analog stereo compressor

Sequencer

  • 12 drum tracks
  • 1 FX track
  • Up to 64 steps per pattern
  • Individual track lengths
  • Trig mute, accent, swing, slide functions
  • Micro timing
  • Parameter locks
  • Chromatic mode
  • Scene mode
  • Performance mode
  • Sound-per-step change
  • Assignable Retrig
  • Instant Pattern, Kit and Sound reload
  • Full real-time control
Hardware

  • 12 velocity, pressure sensitive, and backlit pads
  • 122×32 pixel backlit LCD
  • MIDI In/Out/Thru with DIN Sync Out
  • 2 × 1/4″ impedance balanced main out jacks
  • 4 × 1/4″ dual mono separate voice out jacks
  • 1 × 1/4″ audio in stereo jack
  • 1 × 1/4″ stereo headphone jack
  • 48 kHz, 24-bit D/A and A/D converters
  • Flash-EEPROM upgradable OS
  • USB 2.0 port

Balanced audio outputs

  • Headphones out level: 15 dBu (55 Ω)
  • Main outputs level: 15 dBu
  • Output impedance: 440 Ω unbalanced

Unbalanced audio inputs

  • Input level: 15 dBu maximum
  • Audio input impedance: 9 kΩ

Electrical specifications

  • Unit power consumption: 14 W typical, 20 W maximum.
  • Recommended power supply: 12 V DC, >2 A

Physical specifications

  • Sturdy steel chassis
  • Dimensions: W340×D176×H63 mm (13.4×6.9×2.4″) (including power switch, knobs and rubber feet)
  • Weight: approximately 2.4 kg (5.3 lbs)

Miscellaneous

  • Overbridge enabled
  • 3 year Elektron warranty

Included in the box

  • Power Supply PSU-3
  • Elektron USB cable
