Deskripsi Produk

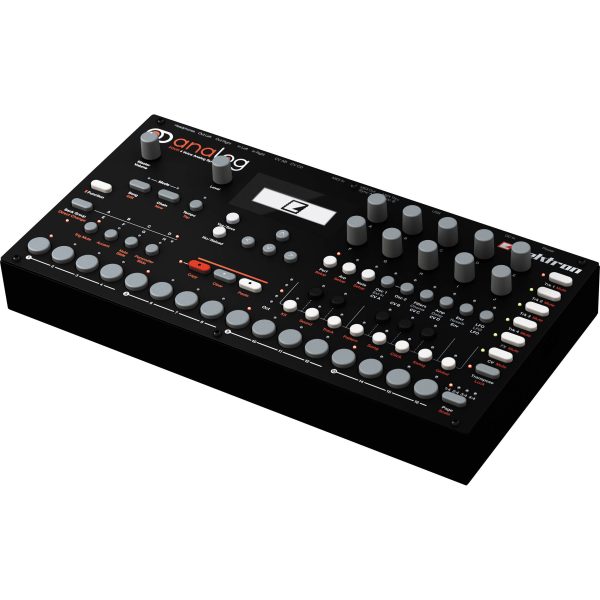

Elektron Analog Four
Analog bliss
Organic, warm, chaotic, exact, and everything in between. Moulding your own unique analog sounds is simple. Program them with precision, or feel free to design as you go. The sonic range is so vast entire tracks can be created from scratch.
From sounds to songs
Four synth tracks and an intuitive step sequencer enable you to easily create and layer melodies. Then play back your composition and immediately reshape it. Change notes, alter sounds, add effects. Something beautifully unique will emerge every single time.
Modular control
Not only a splendid synthesizer, the Analog Four can also make other gear sing. Thanks to the CV/Gate and DIN sync outputs, external analog gear can be controlled in great detail. Make any modular or vintage synthesizer rig come truly alive.
Synth voice features (x4)
- Fully analog signal path
- 2 × analog oscillators
- Variable waveshape on all waveforms
- Oscillator AM and Sync modes
- 2 × sub-oscillators
- 1 × noise generator
- 1 × 4-pole analog lowpass ladder filter
- 1 × 2-pole analog multi-mode filter
- 1 × analog overdrive circuit
- Filter feedback
- 2 × assignable LFOs
- 1 × dedicated vibrato LFO
- 2 × dedicated waveshape LFOs
- 1 × amp envelope
- 2 × assignable envelopes
- 2 × dedicated LFO fade envelopes
- 1 × dedicated noise fade envelope
- 1 × dedicated vibrato envelope
- 1 × dedicated autobend envelope
- 3 × individual effect sends
- Up to 4 notes of polyphony
- Up to 4 part multitimbrality
- Up to 4 note unison playback
Storage
- 128 Projects
- 4096 Sounds ( Drive Sound Library)
- 128 Sounds per Project (Project Sound Pool)
- 128 Kits per Project
- 128 Patterns per Project
- 16 Songs per Project
Sequencer
- 4 synth tracks
- 1 FX track
- 1 CV/Gate track
- Up to 64 steps per pattern
- Individual track lengths
- 6 × arpeggiators
- Parameter locks
- Instant Pattern, Kit and Sound reload
- Live friendly Performance mode
- Swing, slide, accent
- Track transpose
- Micro timing
- Sound-per-step change
- Full real-time control
Send effects
- Wideshift Chorus
- Saturator Delay
- Supervoid Reverb
Hardware
- 122×32 pixel backlit LCD
- MIDI In/Out/Thru with DIN Sync Out
- 2 × 1/4″ impedance balanced main out jacks
- 2 × 1/4″ audio in jacks
- 1 × 1/4″ stereo headphone jack
- 2 × 1/4″ dual CV/Gate outputs
- 48 kHz, 24-bit D/A and A/D converters
- Flash-EEPROM upgradable OS
- USB 2.0 port
Balanced audio outputs
- Headphones out level: 19 dBu (55 Ω)
- Main outputs level: 19 dBu
- Output impedance: 440 Ω unbalanced
Unbalanced audio inputs
- Input level: 19 dBu maximum
- Audio input impedance: 9 kΩ
- Digital S/N Ratio: 102 dBFS (20-20,000Hz)
Electrical specifications
- Unit power consumption: 14 W typical, 24 W maximum
- Recommended power supply: 12 V DC, >2 A
Physical specifications
- Sturdy aluminium chassis
- Dimensions: W340×D176×H63 mm (13.4×6.9×2.4″) (including knobs and rubber feet)
- Weight: approximately 2.35 kg (5.18 lbs)
Miscellaneous
- Overbridge enabled
- Ableton Live 9 Lite license included
Berat | 4 kg |
---|
