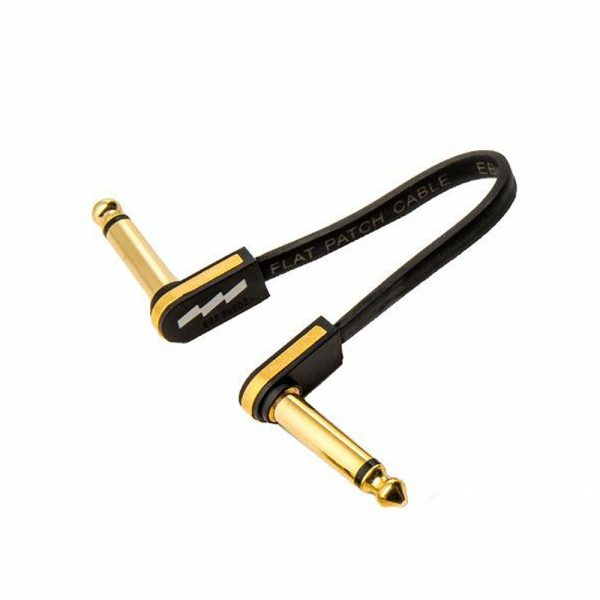

EBS Flat Patch Cables Premium Gold PG-10

Description

EBS Flat Patch Cables Premium Gold PG-10

Construction & Technical Specifications
for PCF Premium Gold

• Contact house: 24 Carat Gold Plated
• Double Shield: Conductive PVC and Copper shield protect effectively from both LF and HF interferences.
• Conductor: Flexible copper conductor low voltage audio signal system
• Operating Temperature: -15ºC to +70°C
• Outer Insulation: PVC (Polyvinyl Chloride)
• Signal Copper Cores: 20 x 0,12mm
• Signal Insulation:  PE (polyethylene)
• Twisted Copper shield:  45 x 0,12mm
• Capacitance Cond./Shield: < 10 pF/decimeters
• Conductor Resistance: < 10 mOhm/decimeters
• Dimensions:  5,3 x 2,5 mm (rectangular cable), 22,0 x 11,5 x 5,0 mm (contact house)
