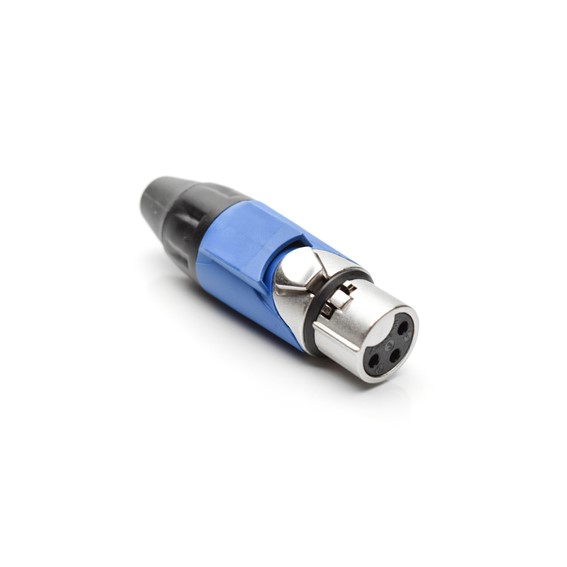

Amphenol AX-3F6 XLR Female Connector -Blue

Rp 34.632

Ada stok

In stock

Description

Amphenol AX-3F6 XLR Female Connector – Blue

Amphenol AX 3F6 ini merupakan konektor XLR Female dengan cover berwarna biru, yang bisa dipasangkan untuk kabel audio unbalanced ataupun balanced. Bisa digunakan pada kabel mixer, speaker dan juga kabel untuk microphone dynamic dan condenser.

Spesifikasi

  • Position: 3
  • Gender: Female / Perempuan
  • Finish: Nickel
  • Contact Type: Machined
  • Contact Plating: Silver
  • Termination: Solder
  • Max Wire Gauge: 14AWG
  • Housing Material: Diecast Zync Alloy
  • Current Carrying Capacity: 15A
  • IP Rating: IP40
  • Flammiability Rating: UL94V-0
  • Environmental: Complies with EU RoHS 2 Directive 2011/65/EU
  • Service Voltage RMS: 133V (Not suitable for domestic applications above 50V)
  • Test Voltage AC RMS: 1400V
  • Typical Contact Resistance: <3mOhm
  • Insulation Resistance: <1GOhm
  • Operating Temperature: -25deg C to +75deg C
  • Mating Cycles: 1000

Made in Australia

Additional information

Weight0,1 kg
