Amphenol AX-3F4 XLR Female Connector – Yellow

Keterangan Produk

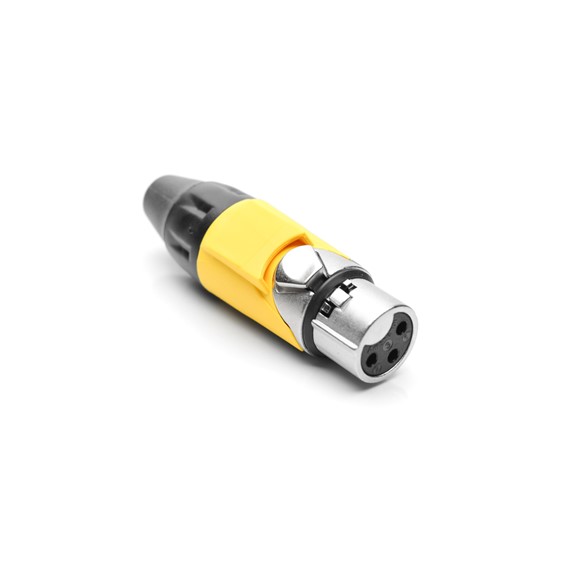

Amphenol AX-3F4 XLR Female Connector – Yellow

Amphenol AX 3F4 ini merupakan konektor XLR Female dengan cover berwarna kuning, yang bisa dipasangkan untuk kabel audio unbalanced ataupun balanced. Bisa digunakan pada kabel mixer, speaker dan juga kabel untuk microphone dynamic dan condenser.

Spesifikasi

• Position: 3
• Gender: Female / Perempuan
• Finish: Nickel
• Contact Type: Machined
• Contact Plating: Silver
• Termination: Solder
• Max Wire Gauge: 14AWG
• Housing Material: Diecast Zync Alloy
• Current Carrying Capacity: 15A
• IP Rating: IP40
• Flammiability Rating: UL94V-0
• Environmental: Complies with EU RoHS 2 Directive 2011/65/EU
• Service Voltage RMS: 133V (Not suitable for domestic applications above 50V)
• Test Voltage AC RMS: 1400V
• Typical Contact Resistance: <3mOhm
• Insulation Resistance: <1GOhm
• Operating Temperature: -25deg C to 75deg C
• Mating Cycles: 1000

Made in Australia
