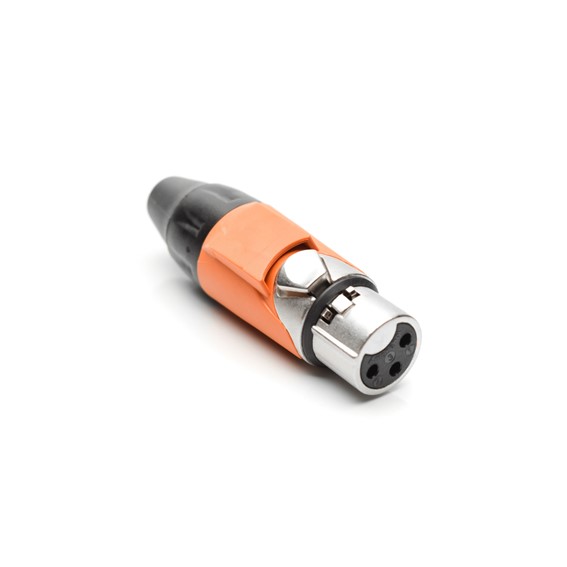

Amphenol AX-3F3 XLR Female Connector – Orange

61 x Dilihat

Rp 43.200

Stok : Stok habis

SKU : AMP13110027 Kategori : Brand :

Amphenol AX-3F3 XLR Female Connector – Orange

Amphenol AX 3F3 ini merupakan konektor XLR Female dengan cover berwarna orange, yang bisa dipasangkan untuk kabel audio unbalanced ataupun balanced. Bisa digunakan pada kabel mixer, speaker dan juga kabel untuk microphone dynamic dan condenser.

Spesifikasi

  • Position: 3
  • Gender: Female / Perempuan
  • Finish: Nickel
  • Contact Type: Machined
  • Contact Plating: Silver
  • Termination: Solder
  • Max Wire Gauge: 14AWG
  • Housing Material: Diecast Zync Alloy
  • Current Carrying Capacity: 15A
  • IP Rating: IP40
  • Flammiability Rating: UL94V-0
  • Environmental: Complies with EU RoHS 2 Directive 2011/65/EU
  • Service Voltage RMS: 133V (Not suitable for domestic applications above 50V)
  • Test Voltage AC RMS: 1400V
  • Typical Contact Resistance: <3mOhm
  • Insulation Resistance: <1GOhm
  • Operating Temperature: -25deg C to 75deg C
  • Mating Cycles: 1000

Made in Australia
