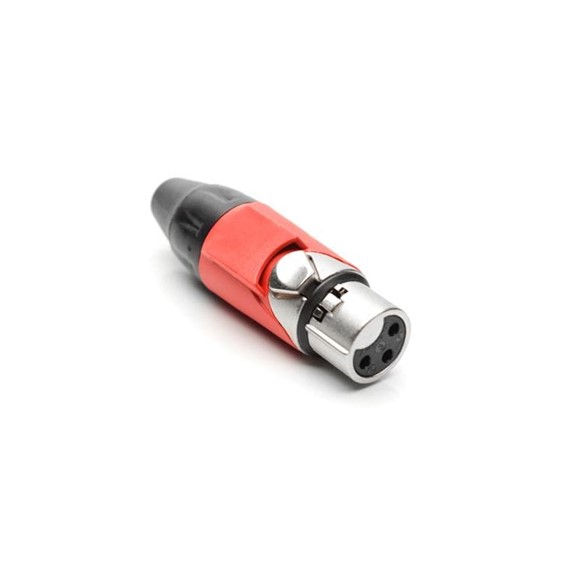

Amphenol AX-3F2 XLR Female Connector – Red

58 x Dilihat

Rp 43.200

Stok : Stok habis

SKU : AMP13110026 Kategori : Brand :

Amphenol AX-3F2 XLR Female Connector – Red

Amphenol AX 3F2 ini merupakan konektor XLR Female dengan cover berwarna merah, yang bisa dipasangkan untuk kabel audio unbalanced ataupun balanced. Bisa digunakan pada kabel mixer, speaker dan juga kabel untuk microphone dynamic dan condenser.

Spesifikasi

  • Position: 3
  • Gender: Female / Perempuan
  • Finish: Nickel
  • Contact Type: Machined
  • Contact Plating: Silver
  • Termination: Solder
  • Max Wire Gauge: 14AWG
  • Housing Material: Diecast Zync Alloy
  • Current Carrying Capacity: 15A
  • IP Rating: IP40
  • Flammiability Rating: UL94V-0
  • Environmental: Complies with EU RoHS 2 Directive 2011/65/EU
  • Service Voltage RMS: 133V (Not suitable for domestic applications above 50V)
  • Test Voltage AC RMS: 1400V
  • Typical Contact Resistance: <3mOhm
  • Insulation Resistance: <1GOhm
  • Operating Temperature: -25deg C to 75deg C
  • Mating Cycles: 1000

Made in Australia
