Visual Sound CS12-E, 1 Spot Pro CS12 Europe

Rp 4.620.000 Rp 3.696.000

In stock

SKU: VIS03010011 Categories: , Brand:

Description

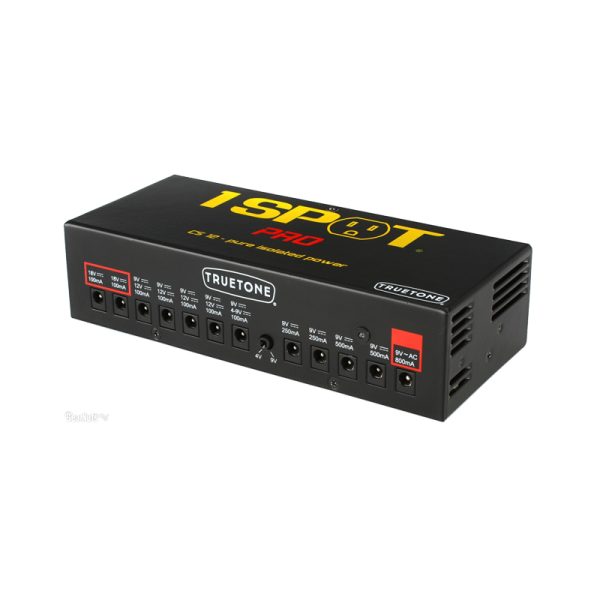

Visual Sound CS12-E, 1 Spot Pro CS12 Europe

Input Voltage


The back panel of the 1 SPOT Pro CS12 has a 2-position 115/230V~ switch that allows the 1 SPOT Pro CS12 to be used in most countries. Warning: Using the unit at the wrong setting will cause damage to both the 1 SPOT Pro CS12, and any effect plugged into output 12. Make sure the switch setting matches the voltage coming out of the wall outlet (+/- 10V~ is OK). This switch only effects the 9VAC output, but it’s important to set it correctly whether you use that output or not… you might want to use it someday.

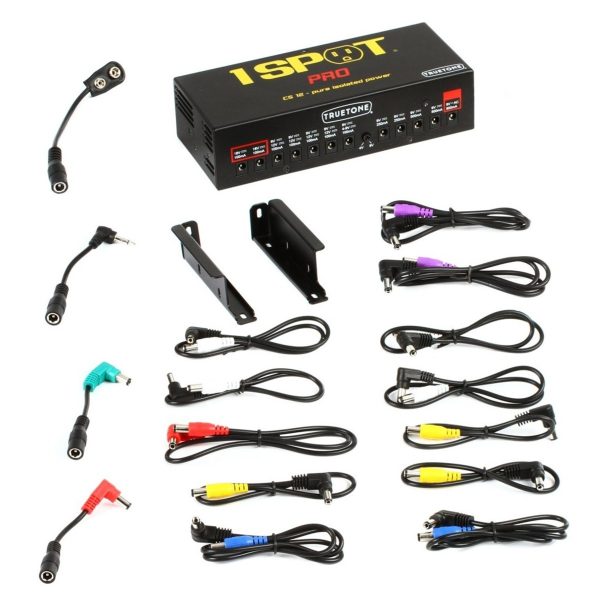

Cables


Power cables (all are center pin negative polarity):
(2) DC26 (5.5×2.1mm barrel plugs; 26” (660mm) – Purple
(2) DC22 (5.5×2.1mm barrel plugs; 22” (559mm) – Blue
(4) DC18 (5.5×2.1mm barrel plugs; 18” (457mm) – White
(3) DC12 (5.5×2.1mm barrel plugs; 12” (305mm) – Yellow
(1) AC21 (5.5×2.5mm barrel plugs; 21” (533mm) – Red

Converter Plugs:
(1) CL6 – (5.5×2.1mm barrel input, 5.5×2.5 barrel output; reverse polarity)
Green – for Line 6 DL4/M9/etc. and some Eventide pedals.
(1) CYR – (5.5×2.1mm barrel input, 5.5×2.1 barrel output; reverse polarity)
Red – reverse polarity converter
(2) C35 – (5.5×2.1mm barrel input, 3.5mm male output; tip positive)
Black – 3.5mm (1/8”) plug converter
(1) CBAT – (5.5×2.1mm barrel input, Black battery clip output) Connects to battery clip wires inside pedals that do not have DC jacks. Do NOT connect to a battery!

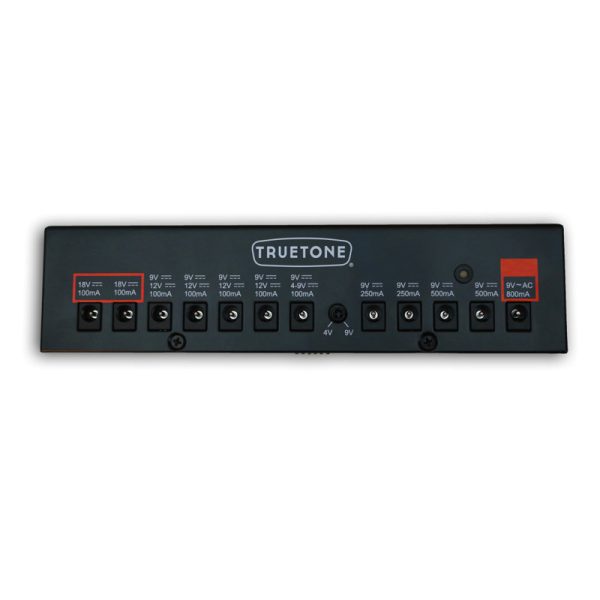

Available Output Voltages


Outputs 1-2: 18VDC (100mA)
Outputs 3-6: 9VDC or 12VDC (100mA)
Output 7: 9VDC or variable 4-9VDC (100mA)
Outputs 8-9: 9VDC (250mA)
Outputs 10-11: 9VDC (500mA)
Output 12: 9VAC (800mA) – Be careful with this one! It is only for pedals that can handle AC voltage. If your pedal can use a battery, do NOT use this output!

Additional information

Weight 3 kg
