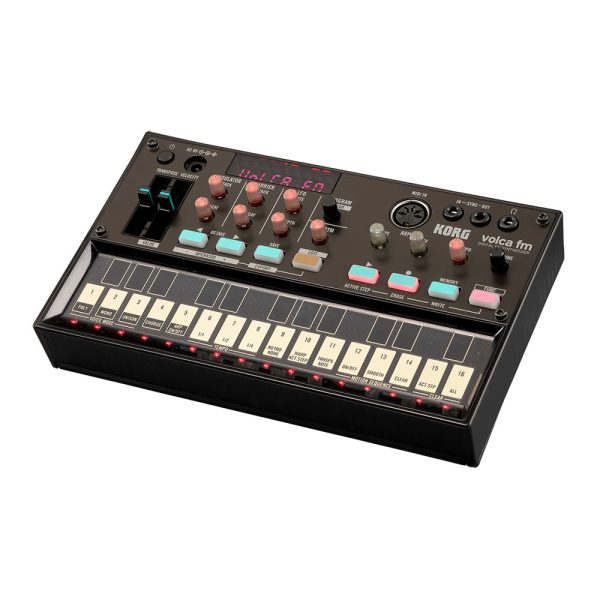

Korg Volca FM
Korg Volca FM
A polyphonic digital synthesizer that completely reproduces a classic FM sound engine
The volca series has shed new light on classic technologies by linking classic sound engines such as the groove machines and early samplers of the past with the dance music of today. Now it’s time for the series to gain an FM sound engine.
The volca fm is a three-voice digital FM synthesizer that completely reproduces the sound engine of a classic FM synthesizer, and provides compatibility with it as well. The unique volca interface makes it easy to manipulate distinctive FM sounds even if you’re not familiar with the complexities of FM synthesis. The 16-step sequencer that’s one of volca’s features provides new functions such as WARP ACTIVE STEP and PATTERN CHAIN that let you make even more powerful rhythm patterns.
16-step sequencer allows to automate each parameters
There’s a loop sequencer with up to 16 steps, allowing you to record your performance on the touch panel keyboard just as you play. It’s easy to create phrases that come to mind. Up to sixteen sequence patterns can be stored in internal memory.
And the motion sequence function records your knob movements, letting you add time-varying change to the sound. This is great way to polish your loops, and also lets you generate highly original live performances.
WARP ACTIVE STEP, ARPEGGIATOR and PATTERN CHAIN make crazy looping rhythms and patterns
In addition to the active step function that lets you skip steps during a sequence, the volca fm provides new functions that enable you to generate more irregular rhythms. If the active step is fewer than 16 steps, you can use the warp active step function to compensate to occupy the same playback time as 16 steps; then by synchronizing the playback with another volca series unit, you can deliberately skew the step timing to generate truly unconventional performances.
In a first for the volca series, the volca fm is also equipped with an arpeggiator. By using this in conjunction with a motion sequence you can create extremely eccentric rhythm patterns.
Furthermore, the pattern chain function lets you connect multiple sequence patterns for successive playback, making it possible to construct large-scale developments of 32, 64, or even 256 steps by joining up to 16 sequences.
Make clone by synchronizing two units of volca fm
The volca fm provides a sync connector that can be easily connected to Korg’s groove machines. Connect this to the other volca series unit, the electribe, or the SQ-1, and experience a session with synchronized sequencer playback. And when two units of volca fm are connected, you can clone the sound programs and sequence data from volca fm to volca fm.
The MIDI IN jack lets you use the volca as a sound module for DAW and MIDI controller.
With its compact size, battery operation, and built-in speaker, it’s easy to take the volca anywhere and perform any time.
- Multi touch keyboard
- FM synthesis
- Maximum Polyphony
- 3 voices
- 6 operators, 32 algorithms
- Number of Programs
- Main Edits
- Modulator (Attack, Decay), Carrier (Attack, Decay), LFO (Rate, P.Depth), Algrtm
Available to edit full parameters for each operator in Edit Mode
- Transpose, Velocity, Octave, Arp (Type, Div)
- Arpeggiator Types
- 9 (each 3 patterns of “Rise”, “Fall”, and “Random”)
- Voice Modes
- Poly, Mono, Unison
- Number of Parts
- Number of Steps
- Number of Recording Patterns
- Motion Sequence, Active Step, Warp Active Step, Pattern Chain, Metronome
- Audio Output
- Headphones (3.5mm stereo mini jack)
- Sync In (3.5mm monaural mini jack, Maximum input level: 20V)
Sync Out (3.5mm monaural mini jack, Output level: 5V)
When two units of volca fm, available to export the sound programs and sequence data from a volca fm to the other one
Available to convert and load SYS-EX/SYX file created on the Yamaha DX7
- Power Supply
- AA alkaline battery x 6 or AA nickel-metal hydride battery x 6
Or AC adapter (DC 9V) (optional)
- Battery Life
- Approximately 10 hours (using alkaline batteries)
- Dimensions (W x D x H)
- 193 x 115 x 40 mm / 7.60” x 4.53” x 1.57”
- 360 g / 12.70 oz. (Excluding batteries)
- Included Items
- AA alkaline battery x 6 (for verifying operation), Sync Cable, Edit Parameter List
- AC adapter (DC 9V) KA-350
