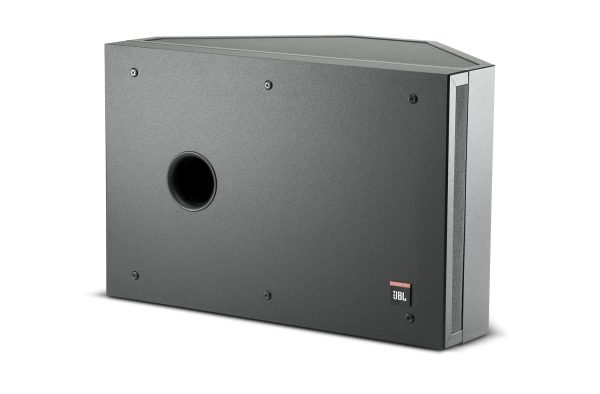

JBL SB-2, Control Contractor Series Control SB-2
Stereo Input Dual Coil Subwoofer
The Control SB-2 provides low frequency reinforcement in subwoofer/satellite systems. The Control SB-2 is ideal for foreground music and music/paging systems in restaurants, retail establishments, theme bars, music cafes, health clubs, and other indoor applications.
- Components: 250 mm (10 in) dual voice coil transducer.
- Stereo inputs with high-pass outputs for satellite speakers.
- Slot-load vented bandpass design.
- Complemented full range Control Contractor Series systems.
- High Sensitivity: 100 dB, 1 W, 1 m.
|Frequency Range||38 Hz – 160 Hz (-10 dB)|
|Power Capacity||340 W (both inputs driven)|
|Sensitivity||100 dB (1W, 1m) at corner|
|Nominal Impedance||8 ohms per input; 4 ohms total|
|Network Filter to Subwoofer||12 dB / oct low-pass (per input), 160 Hz.|
|Acoustic Filtering||6 dB/ oct lo-pass filtering via slot load design, 80 Hz|
|Network Filter Satellite Outputs||6 dB/ oct high-pass (per output).|
|Drivers||250 mm (10 inn) long throw with dual voice coils.|
|Enclosure Material||Particle Board|
|Terminations||Spring terminals, accepts banana plugs. Left In, Right In, Left Satellite Out, and Right Satellite Out.|
|Installation Accessories||MTC_SB2W for installing SB-2 onto a wall or into a corner. MTC-SB2C for suspending SB-2 from a ceiling.|
|Dimensions (H x W x D)||394 x 585 x 343mm
(15.5 x 23.0 x 13.5 in.)
|Net Weight (ea)||19.1 kg (42 lb)|
|Shipping Weight (ea)||22.7 kg (50 lb)|
